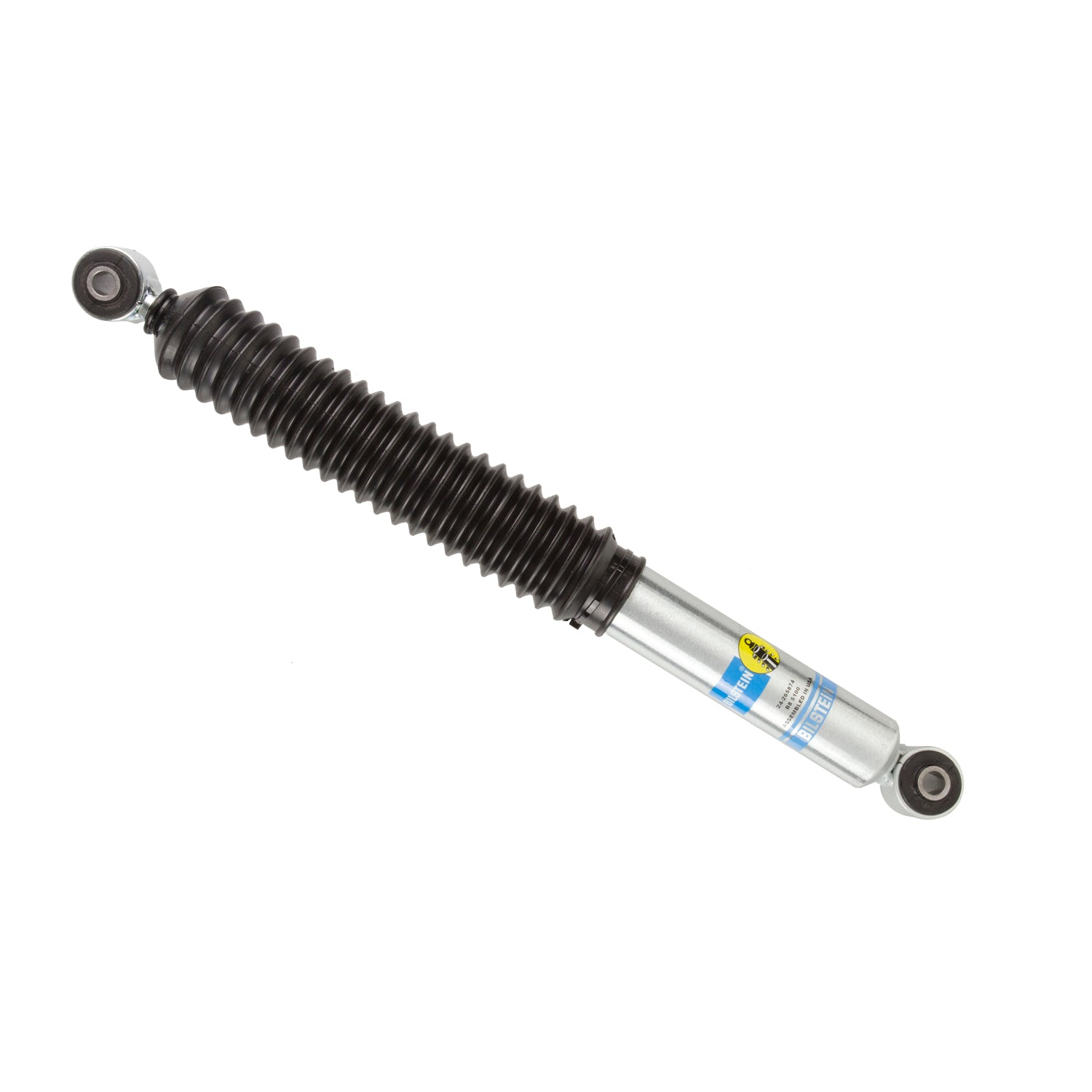

Bilstein 5100 Series 2015+ GM Colorado 4WD Rear Shock Absorber - 24-265874

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Body Design: Smooth Body (Non-Coilover)
• Internal Design: Monotube
• Extended Length (in): 23.24
• Series: B8 5100
• Lower Mount Type: Eye 14.4mm
• Reservoir: No
• Upper Mount Type: Eye 14.4mm
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Collapsed Length (in): 14.80
• Piston Diameter: 46mm
• Collapsed Length (mm): 376.0
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 214.1
• Stroke/Travel Length (in): 8.43
• Finish: Zinc Plated
• Boot Included: Black Bellows
• Extended Length (mm): 590.2

Application

• Chevrolet Colorado 2015-2022, GMC Canyon 2015-2022
