Bilstein Part # BIL33-286525

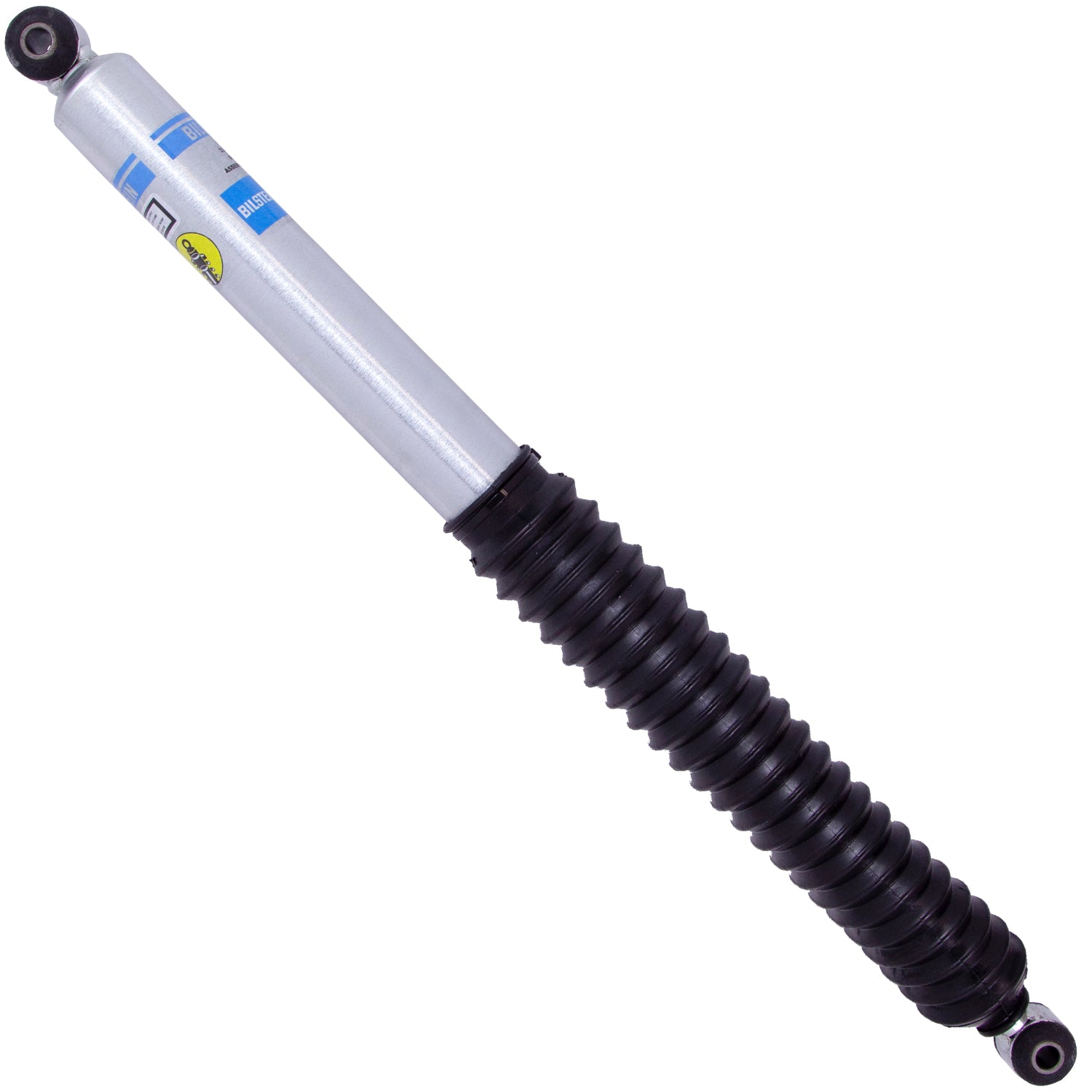

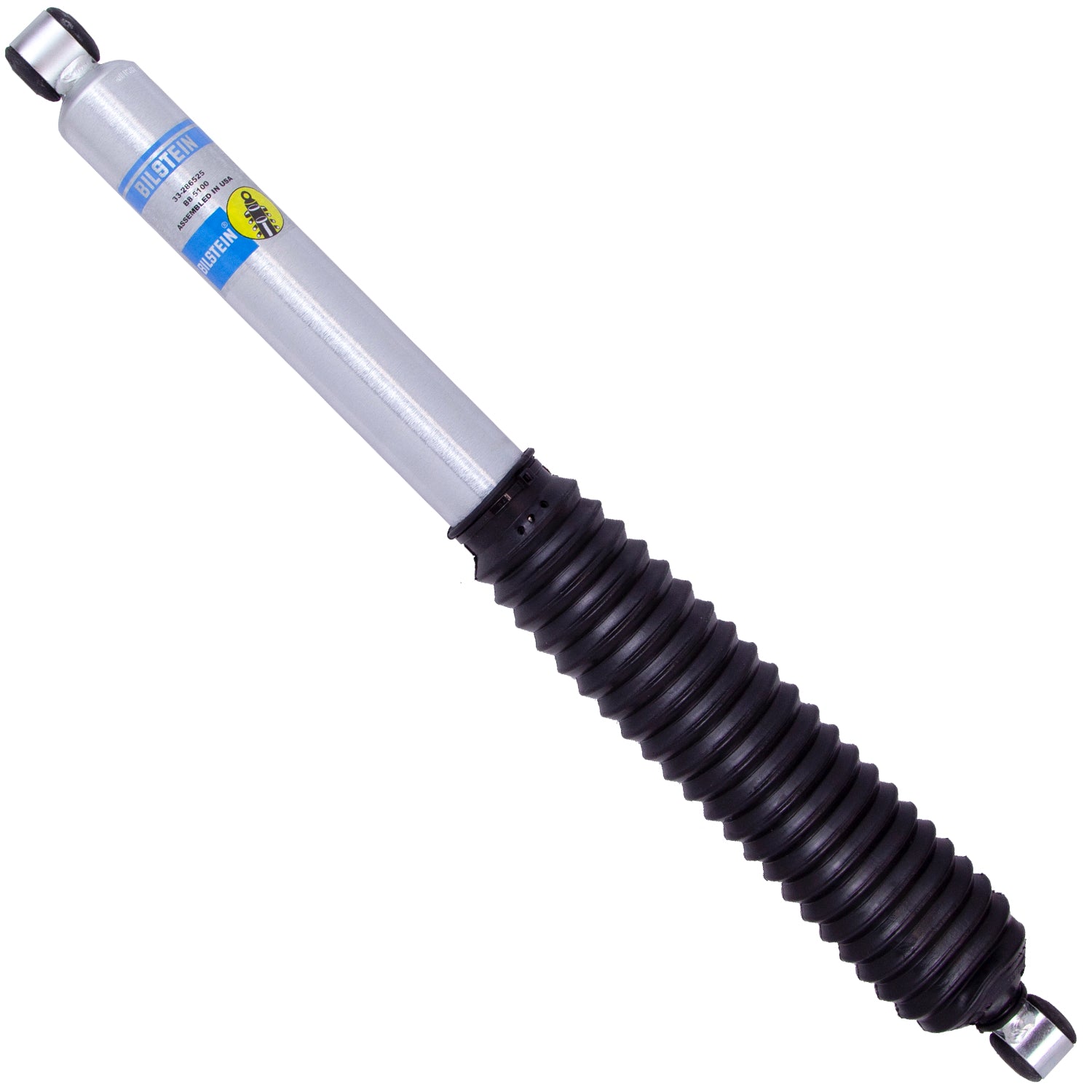

Bilstein 5100 Series 2014 Ford F-150 2WD Rear Shock Absorber 0-1in Lift - 33-286525

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning

  • Upper Mount Type: Eye 12mm
  • Finish: Zinc Plated
  • Boot Included: Black Bellows
  • Internal Design: Monotube
  • Body Design: Smooth Body (Non-coilover)
  • Adjustable Damping: Non-Adjustable
  • Spring Seat Included: No
  • Collapsed Length (in): 16.97
  • Reservoir: No
  • Lower Mount Type: Eye 12mm
  • Extended Length (in): 27.37
  • Extended Length (mm): 695.2
  • Series: B8 5100
  • Piston Diameter: 46mm
  • Collapsed Length (mm): 431.0
  • Stroke/Travel Length (in): 10.40
  • Shaft Diameter: 14mm
  • Stroke/Travel Length (mm): 264.2

Application

  • Ford F-150 2014
