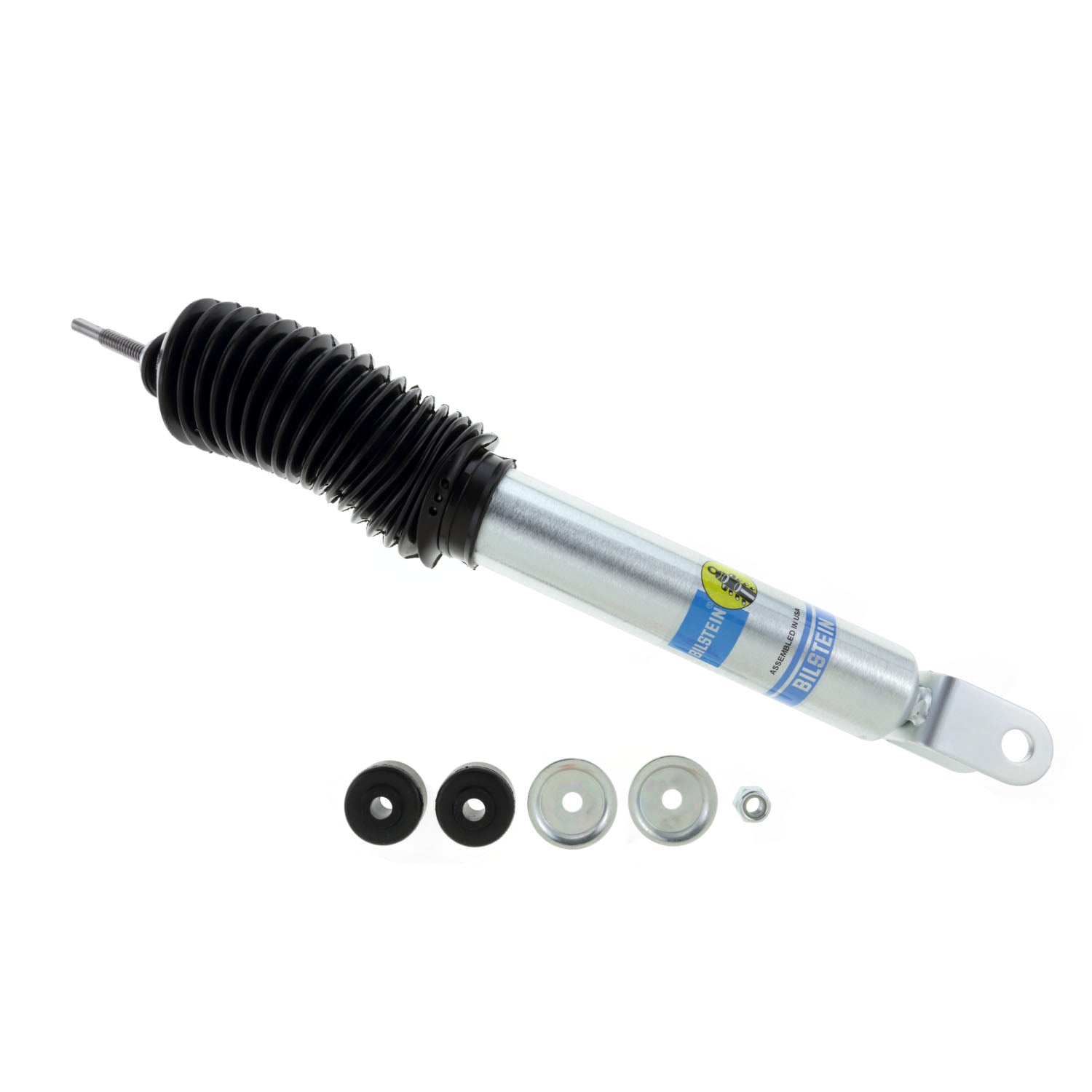

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions.
All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
46mm monotube design ensures consistent, fade-free performance in all conditions.
Patented digressive valving instantly reacts to changing surface conditions.
Vehicle specific tuning.
| Upper mount type | Stem |
|---|---|
| Internal design | Monotube |
| Series | B8 5100 |
| Lower mount type | Clevis |
| Adjustable damping | Non-Adjustable |
| Spring seat included | No |
| Extended length (in) | 16.30 |
| Piston diameter | 46mm |
| Shaft diameter | 11mm |
| Stroke/travel length (in) | 3.76 |
| Stroke/travel length (mm) | 95.5 |
| Collapsed length (mm) | 318.5 |
| Collapsed length (in) | 12.54 |
| Body design | Smooth Body (Non-Coilover) |
| Finish | Zinc Plated |
| Extended length (mm) | 414.0 |
| Boot included | Black Bellows |
| Reservoir | No |
| Part number | 24-186643 |
