Bilstein Part # BIL41-338131

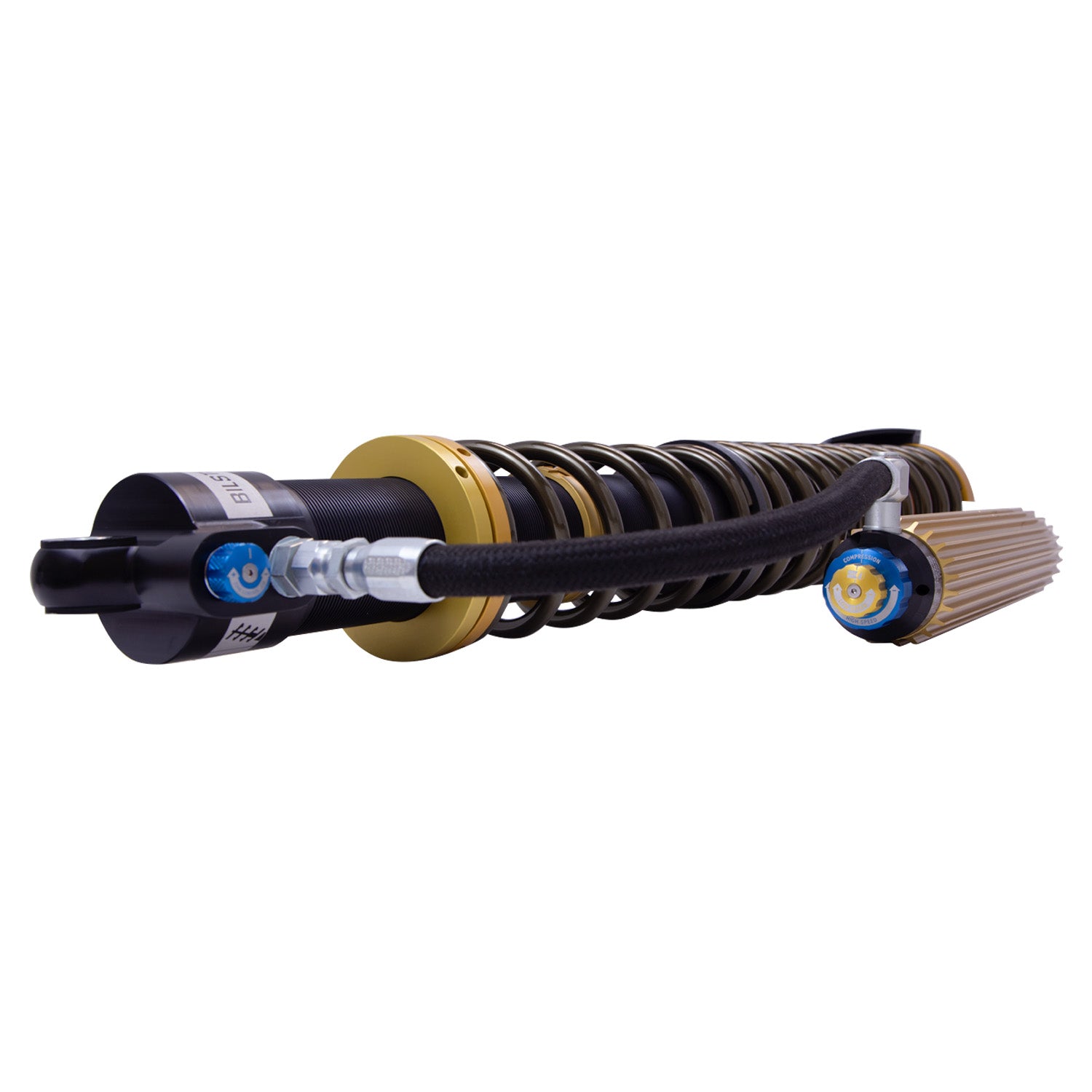

Bilstein 22-24 Can-Am Maverick X3 Max RS Turbo Black Hawk Powersports Shock & Coil Spring Ass. - RL - 41-338131

Before you order

Customers also viewed

4.8 on Google961 store reviews
Ships from Buffalo, NYOur U.S. warehouse
Trusted since 2005Enthusiasts behind the counter

Bilstein Black Hawk Powersports coilovers are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability, all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein’s patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones; 3 Compression and 2 Rebound.

ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine tune bottom out control. For Rebound, ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop.

The RCO will protect the damper, eliminating the need for a limit strap. Black Hawk Powersports offer 4 unique external adjustments; High/Low speed compression, rebound, and JCO. All easily accessible and ready for quick damping changes on the fly.

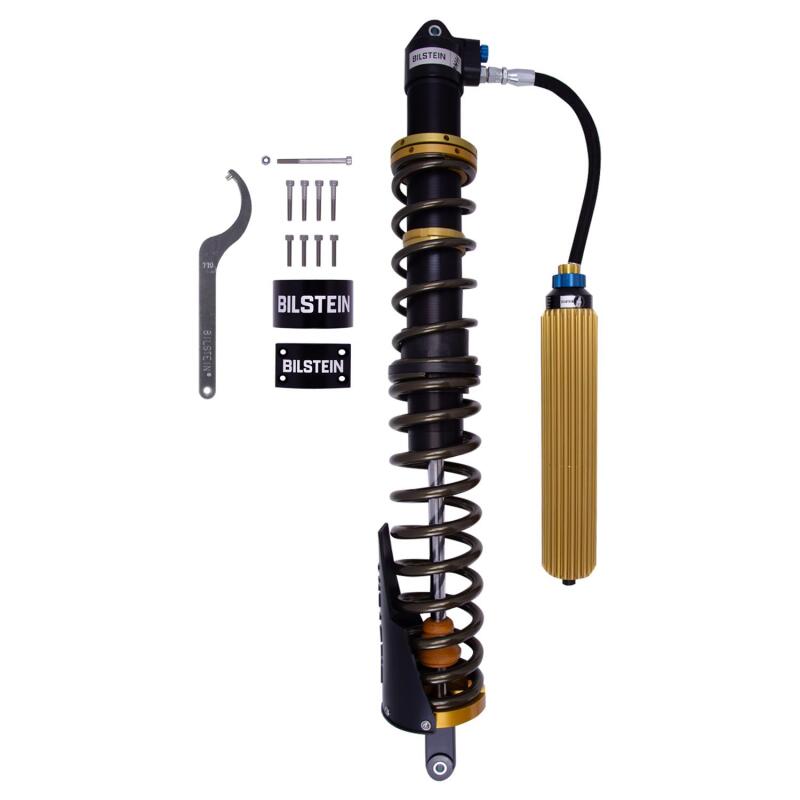

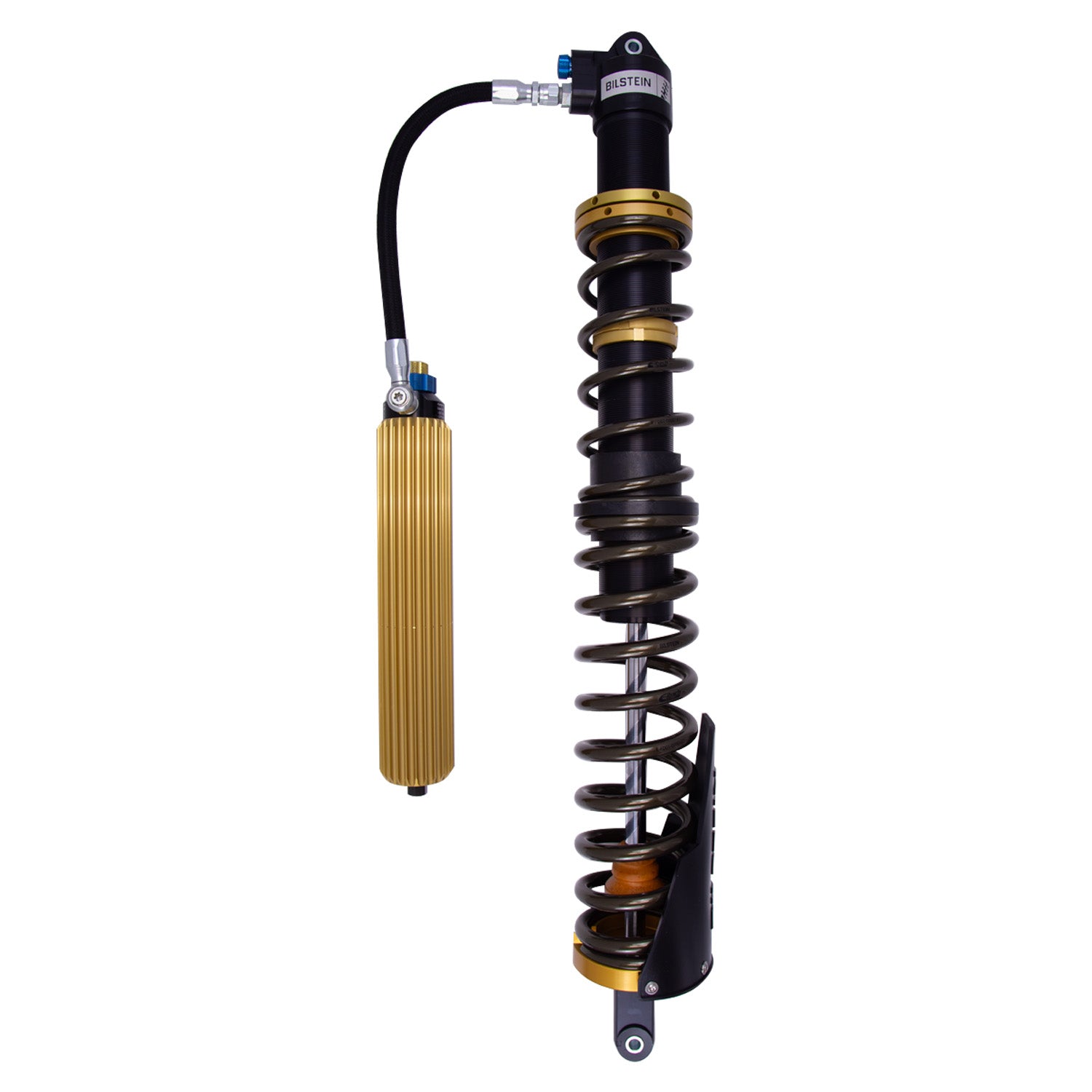

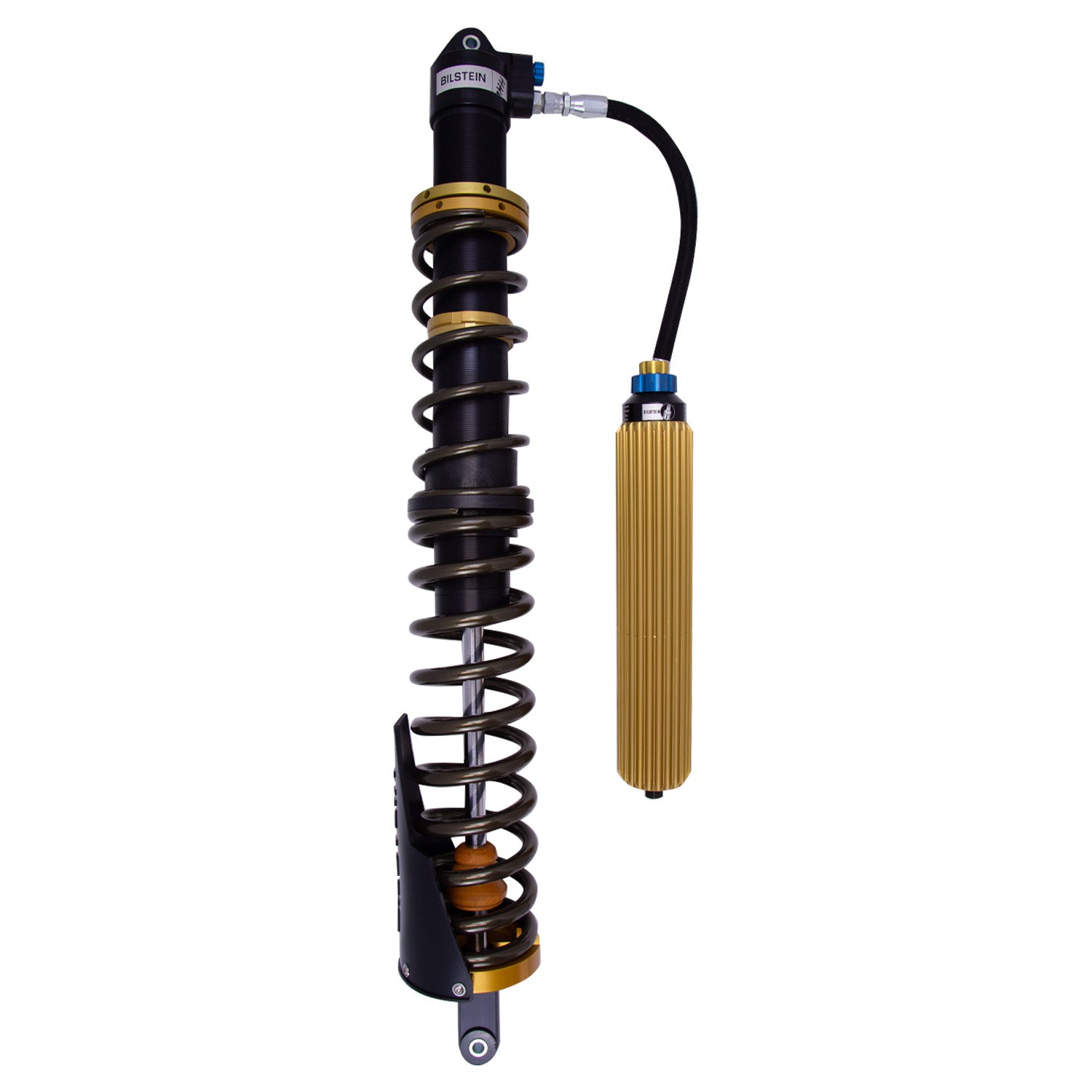

Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to withstand race conditions right out of the box.

This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control. Experience a unique “bottomless” ride with Bilstein’s new Black Hawk Powersports coilover packages.

  • Zone Control CR, Position Sensitive Damping.

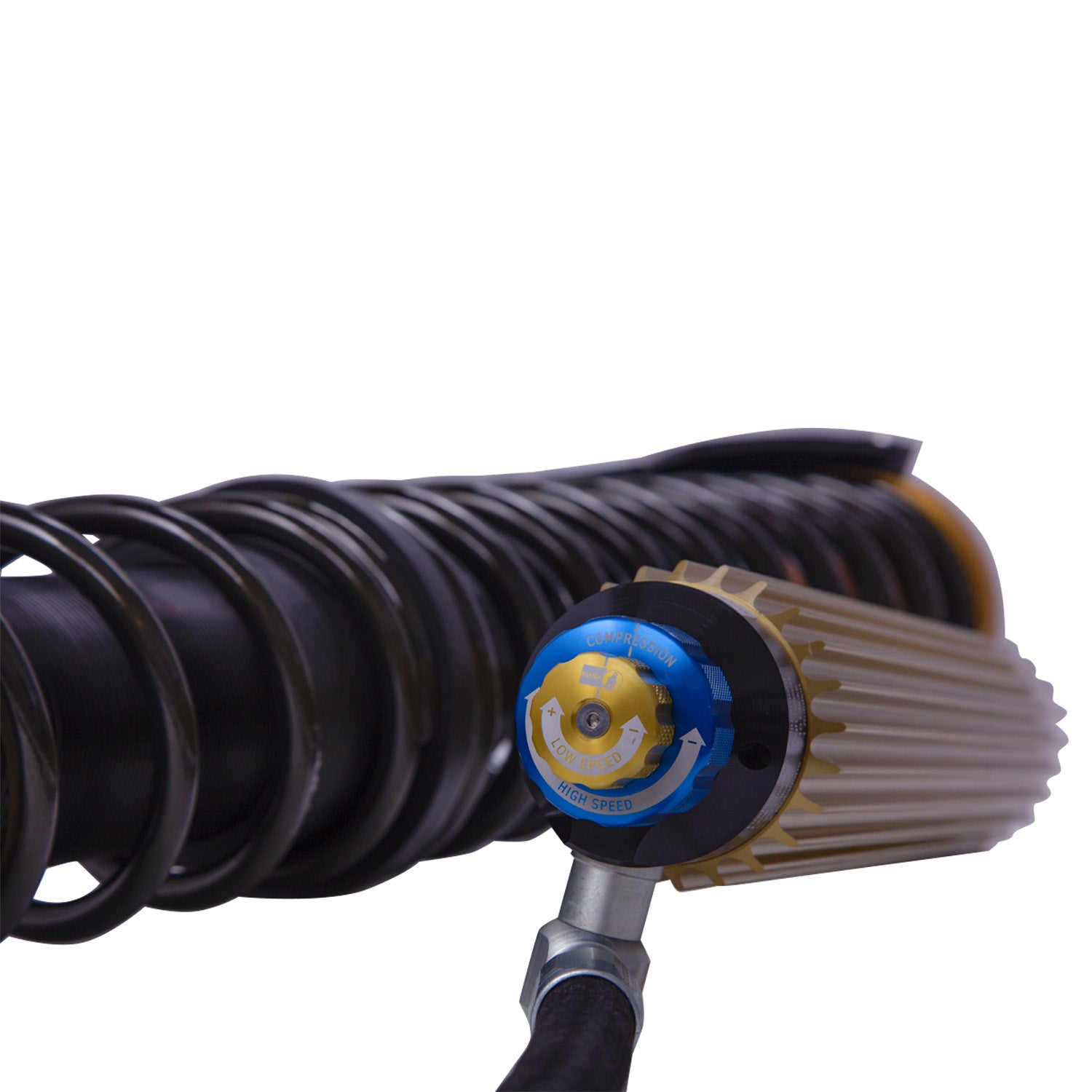

  • 4-Way adjustable damping. Dual Speed Compression Adjustable Reservoir (High-Low Speed); Adjustable Internal Hydraulic Bump Stop (JCO); Adjustable Rebound.

  • Direct Fit Motorsports Package.

Upper mount type Eye 12mm (ID)
Adjustable damping 4-Way Adjustable, High and Low Speed Compression, Rebound, JCO-Jounce Cut-Off (Hydraulic Bump)
Billet reservoir clamp included Yes
Body design Threaded Body
Body material Aluminum alloy
Boot included No
Collapsed length (in) 27.98
Collapsed length (mm) 710.8
Compression @0.52m/S Adjustable
Extended length (in) 41.61
Extended length (mm) 1056.8
Finish Type III Hard Anodized
Internal design Monotube
Lower mount type Eye 12mm (ID)
Make Can-Am
Model Maverick X3
Position Rear Left
Rebound @0.52m/S Adjustable
Reservoir Yes
Series Black Hawk Powersports
Piston diameter 70mm
Stroke/travel length (in) 13.63
Shaft diameter (mm) 22.0
Stroke/travel length (mm) 346.2
Part number 41-338131

  • Can-Am Maverick X3 Max RS Turbo R 2020-2021, Maverick X3 Max RS Turbo RR 2022-2024, Maverick X3 Max Turbo 2018-2020, Maverick X3 Max Turbo R 2017-2019, Maverick X3 Max X mr Turbo RR 2020-2024, Maverick X3 Max X rs Turbo R 2017-2019, Maveri
