Bilstein Part # BIL25-325102

Bilstein 19-22 Ram 1500 Driver Rear Shock 5160 Series Shock Absorber - 25-325102

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

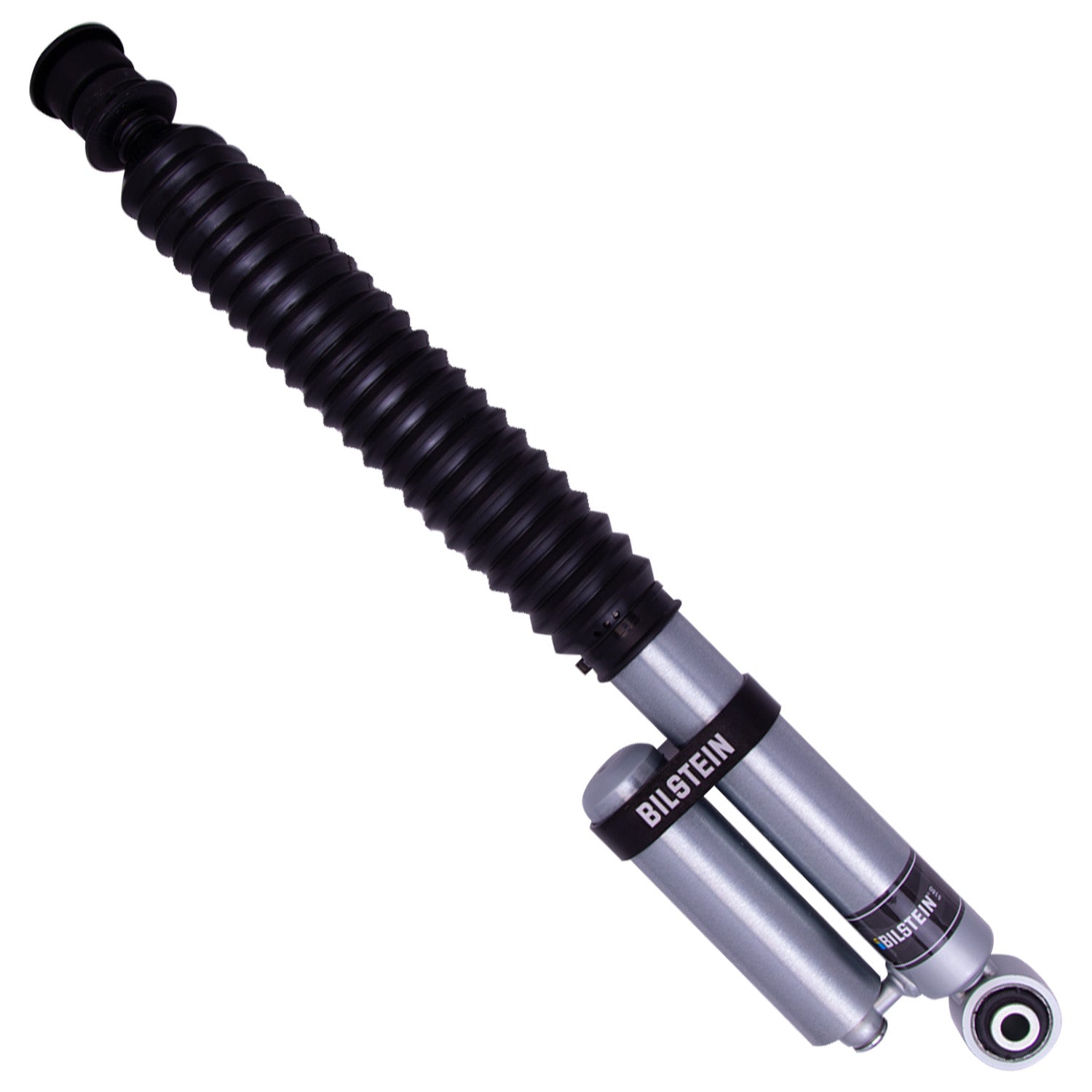

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • Remote reservoir increases shock oil capacity for greater heat dissipation

  • Collapsed Length (in): 15.69
  • Extended Length (in): 25.75
  • Collapsed Length (mm): 398.5
  • Extended Length (mm): 654.0
  • Series: B8 5160
  • Boot Included: Black Bellows
  • Lower Mount Type: Eye 14.1mm
  • Internal Design: Monotube
  • Spring Seat Included: No
  • Adjustable Damping: Non-Adjustable
  • Body Design: Smooth Body (Non-Coilover)
  • Upper Mount Type: Stem
  • Billet Reservoir Clamp Included: Yes
  • Reservoir: Yes
  • Finish: Zinc Plated
  • Piston Diameter: 46mm
  • Stroke/Travel Length (in): 10.06
  • Shaft Diameter: 14mm
  • Stroke/Travel Length (mm): 255.5

Application

  • Ram 1500 2019-2026
