Bilstein Part # BIL25-291322

Bilstein 07-17 Jeep Wrangler / 2018 Jeep Wrangler JK B8 8100 (Bypass) Rear Left Shock Absorber - 25-291322

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

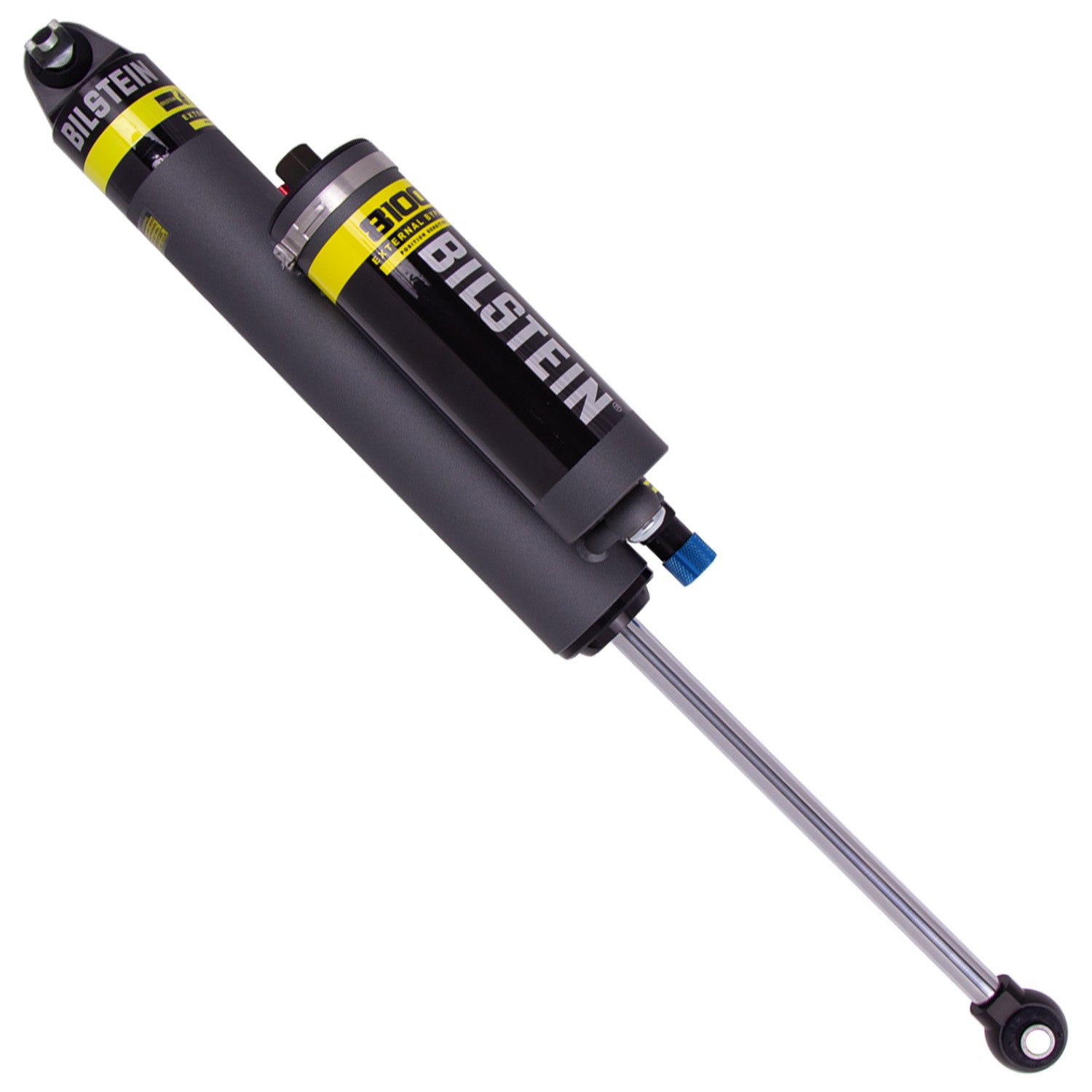

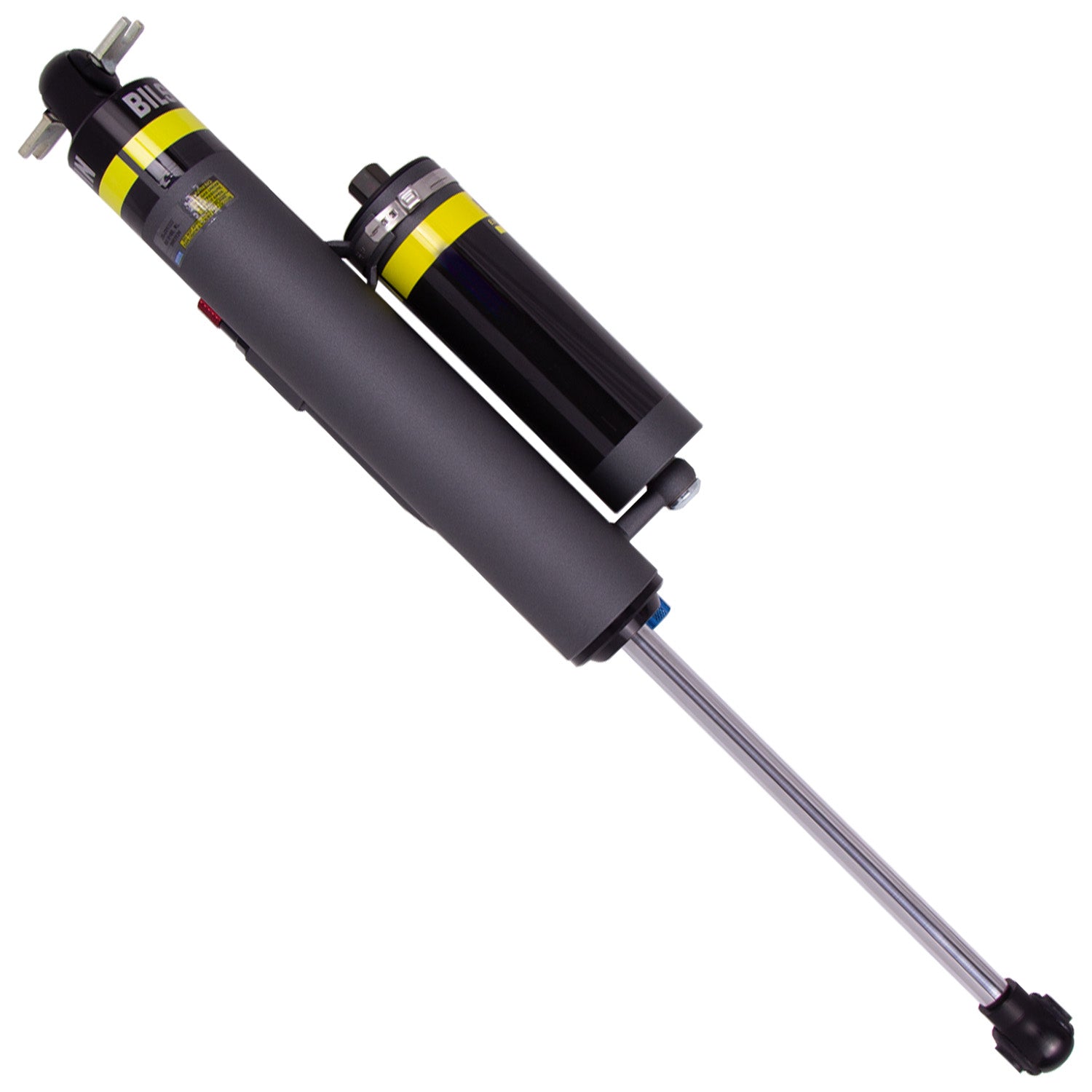

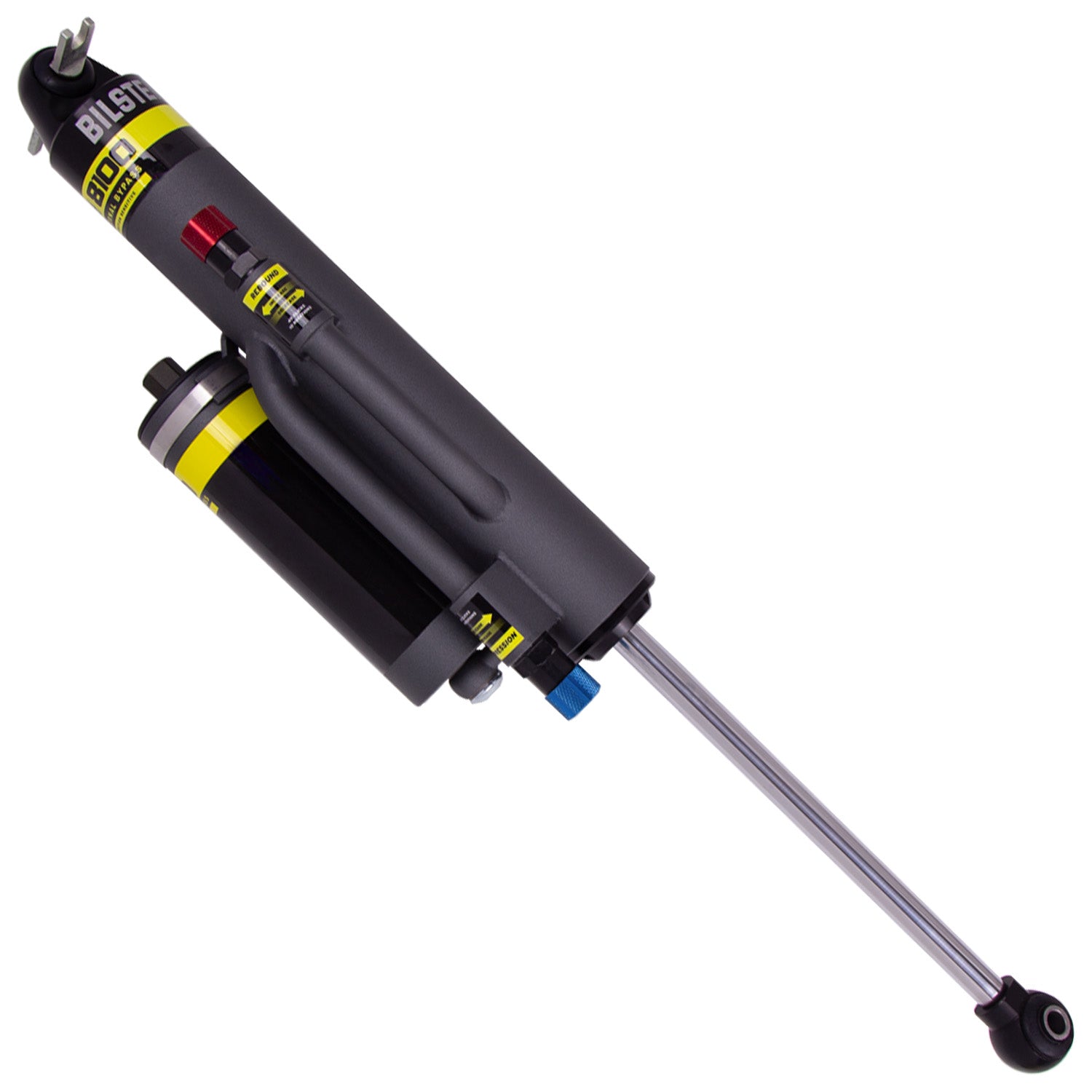

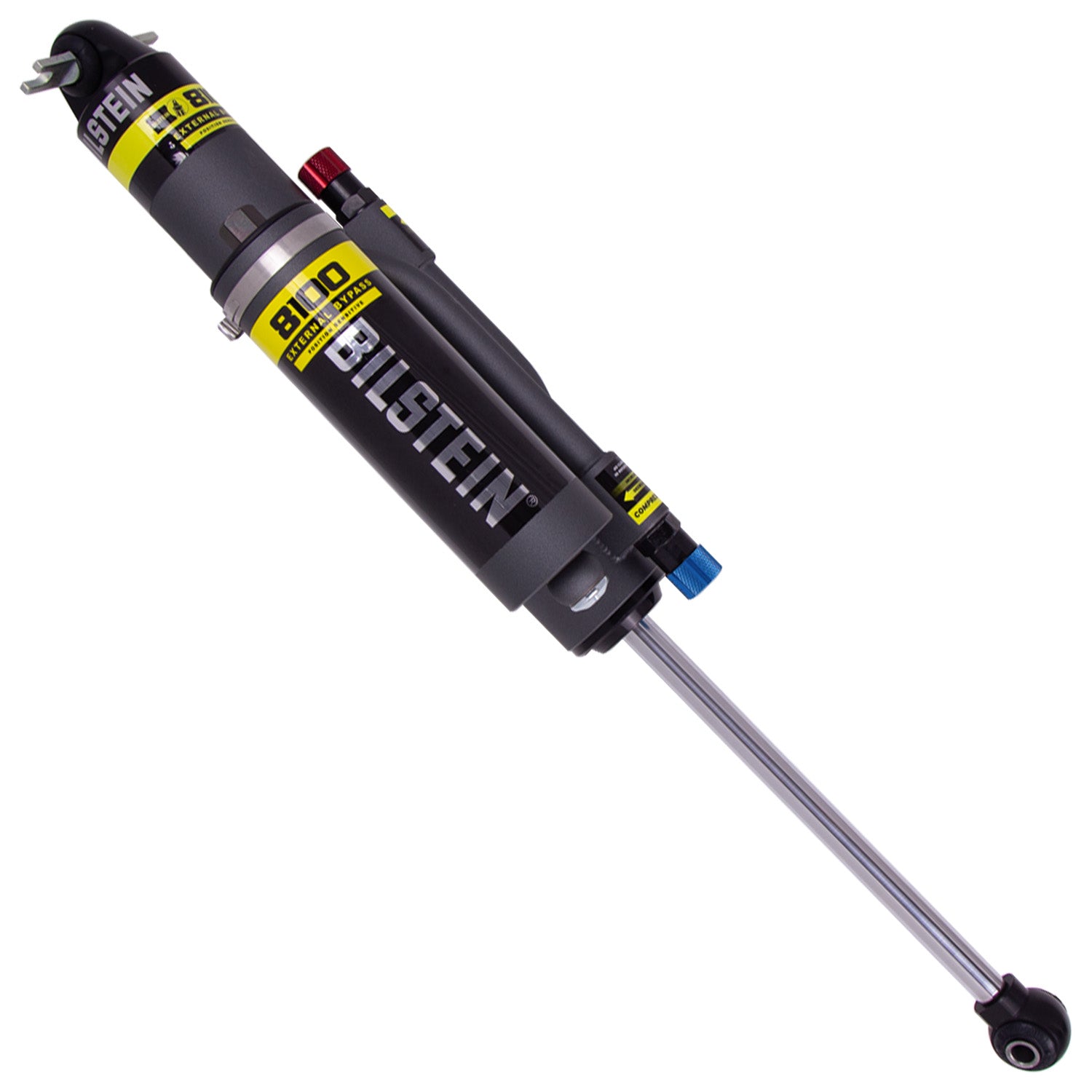

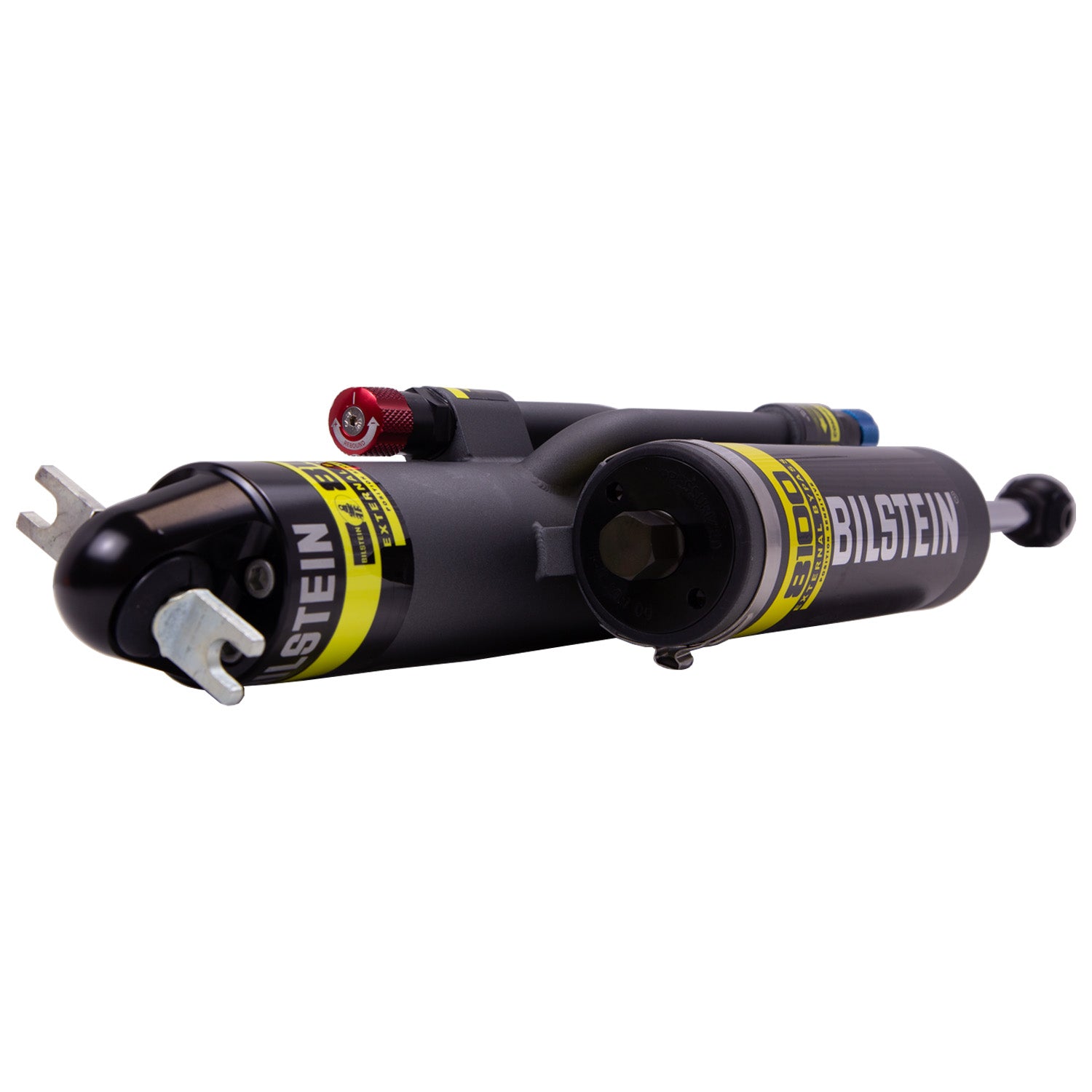

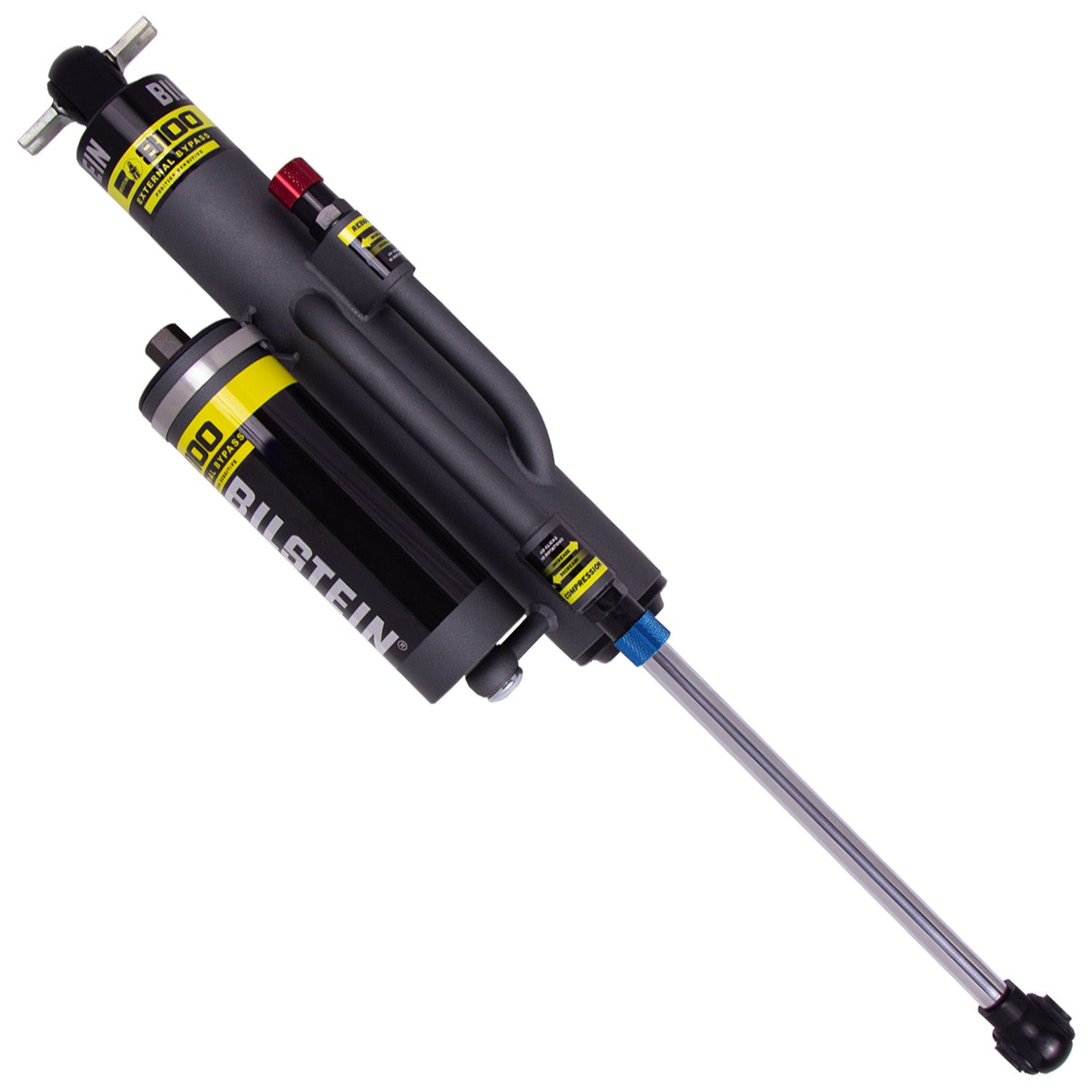

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

  • Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
  • Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
  • 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability

  • Internal Design: Monotube
  • Adjustable Damping: Double Adjustable Compression and Rebound with Click Adjuster Knobs
  • Lower Mount Type: Eye 12.1mm
  • Extended Length (in): 27.83
  • Boot Included: No
  • Spring Seat Included: No
  • Collapsed Length (in): 17.17
  • Reservoir: Yes
  • Series: B8 8100 (Bypass)
  • Extended Length (mm): 707.0
  • Finish: EVO Grey
  • Upper Mount Type: Bar Pin
  • Body Design: Bypass Body (Non-Coilover)
  • Collapsed Length (mm): 436.0
  • Piston Diameter: 60mm
  • Shaft Diameter: 18mm

Application

  • Jeep Wrangler 2007-2017, Wrangler JK 2018
