BD Diesel Super B Special SX-E S363 Turbo Kit - 1994-2002 Dodge 5.9L Cummins - 1045257

All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. A BD exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 manifolds.

Features

• Comp Wheel: 63mm 2.48in
• Turbine Wheel: 80mm 3.15in
• A/R Ratio: 0.80
• Flow: 79 Lb./min
• Approximate rated 550hp (depending on truck configuration)
• The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing
• Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
• The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds
• BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust manifolds
• BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability
• BD's HD Waste gate and bracket holds boost and prevents over speed damage
• Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning

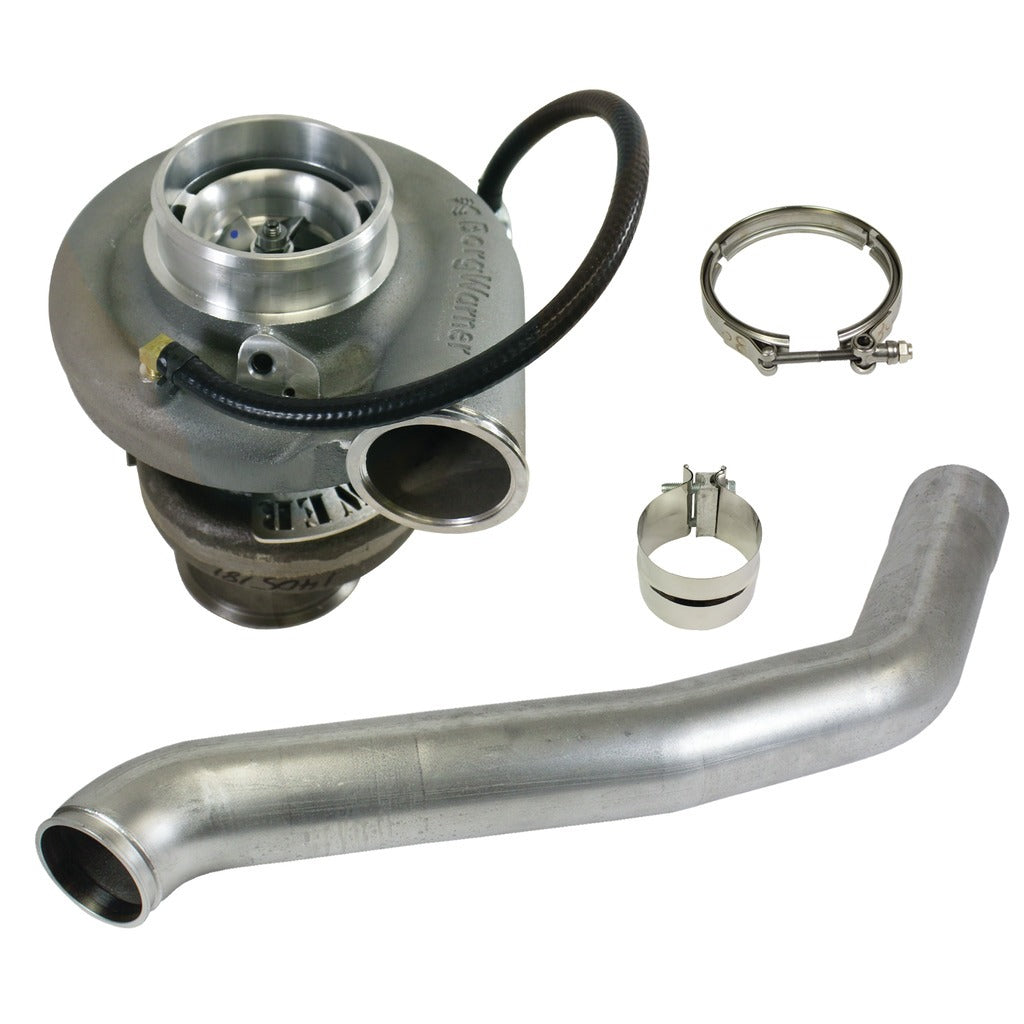

• Kit comes with downpipe, V-band clamp, band clamp

Specifications

Warranty

12 months or 12000 miles, whichever comes first.

Documentation

• Limited Warranty Statement Card (PDF)
• Super SXE Single 94-02 (PDF)
• - General Turbocharger Instructions (PDF)

Country of Origin: Canada
