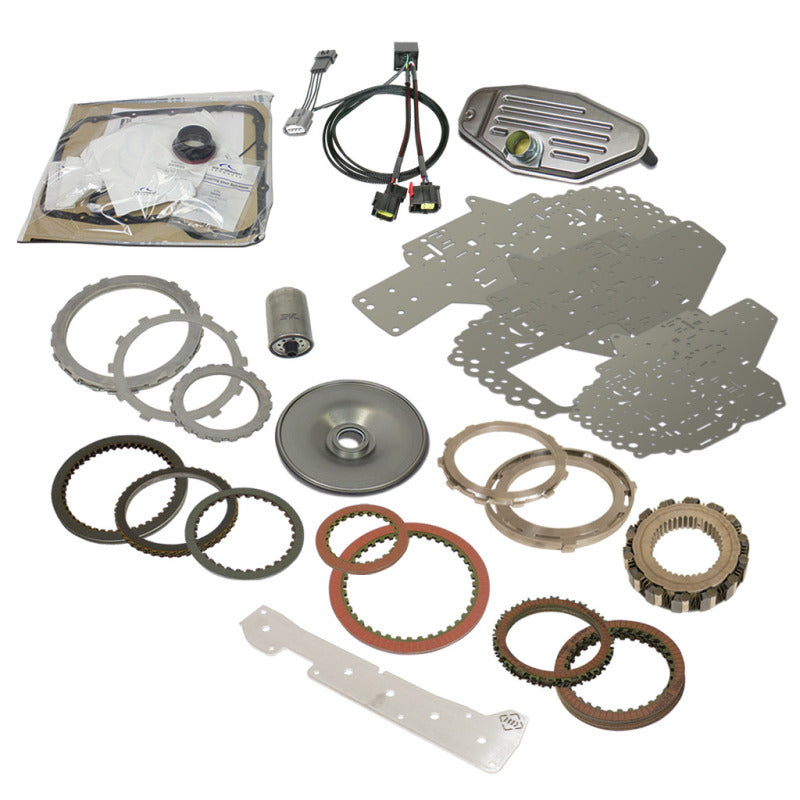

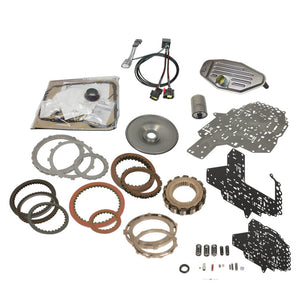

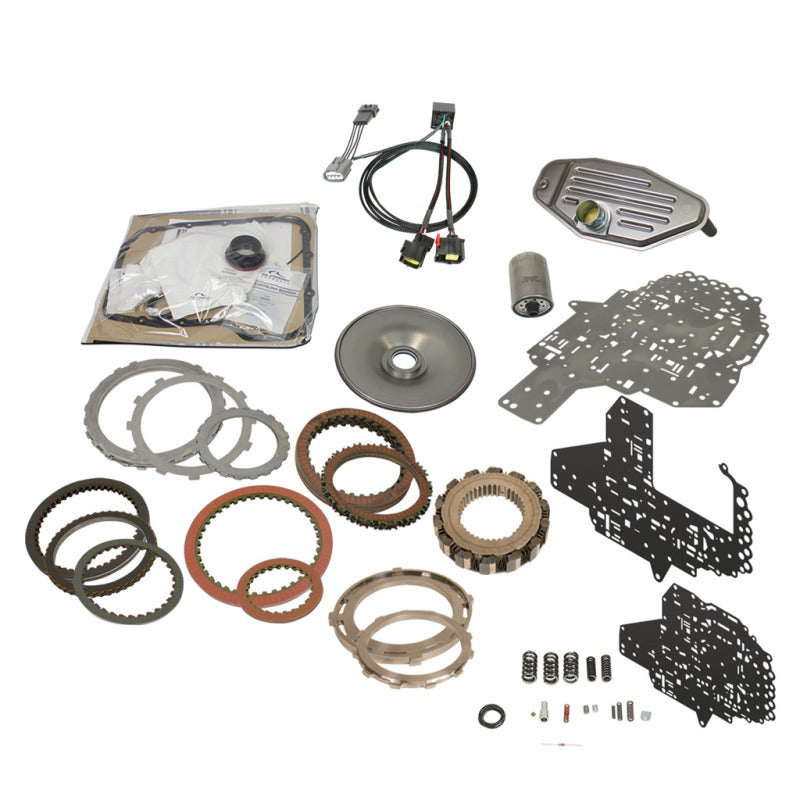

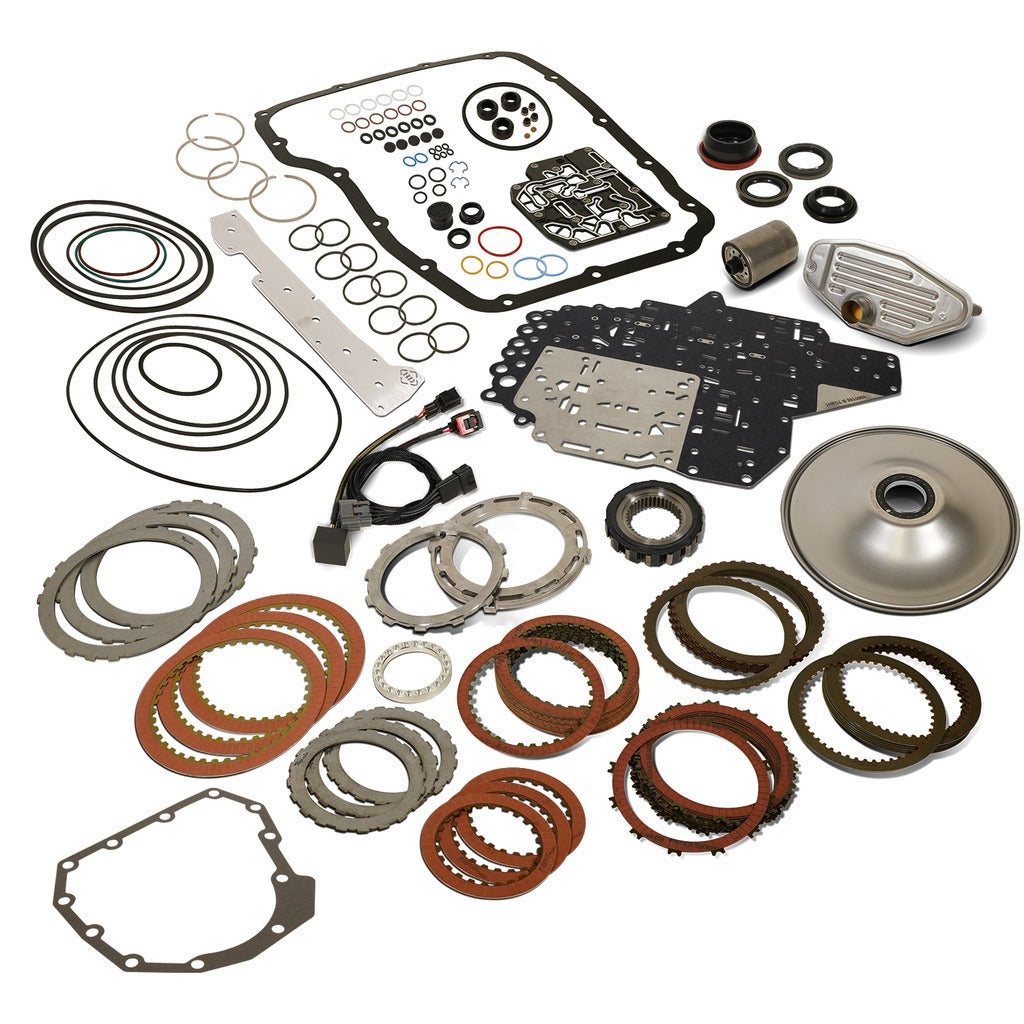

BD Diesel Built-It Trans Kit 5/07-16 Dodge 68RFE Stage 4 Master Rebuild Kit c/w ProTect 68 - 1062025

Are you a looking to rebuild your own transmission and needing some specialty parts to match your application? BD offers a range of rebuild parts kits featuring the same parts we use in our own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to our Stage 4 Master Kit - which is pretty well everything we put in our own transmission rebuilds.

Features

• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• Seal - Solenoid Pack Connector, 4wd Output Shaft, 2wd Output Shaft, Input Shaft
• Seal Kit - 2-4C, Input Drum, Solenoid Pack, Internal, External
• Heavy duty accumulator plate to prevent accumulator blowout
• O-Ring - pump Cover
• Pressure Control module delivers up to 250psi clutch apply pressure at full throttle
• Dynamically adjusts hydraulic apply pressures based on turbo boost/engine load
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Upgraded One Way Clutch/Sprag
• Over Drive clutches 17% increase and Under Drive clutches 20% increase
• Qty 2: Check Balls 1/4in
• Qty 7: Reverse Clutch Friction, Reverse Clutch Steel
• Qty 3: 2C Clutch Friction, 2C Clutch Steel, 4C Clutch Friction, 4C Clutch Steel
• Qty 15: OD Clutch Friction, OD Clutch Steel
• Filter - Pan, Spin On
• Pump Cover
• Billet OD/Reverse Selector Plate, OD/UD Reaction Plate
• Stiffer Billet Intermediate Reaction Plate, Billet Over Drive/Rev Reaction Plate
• Billet 4C Spring Retaining Ring
• Gasket Kit - Oil Cooler, Oil Pan, Solenoid Pack

Specifications

Warranty

12 months or 12000 miles, whichever comes first.

Documentation

• 68RFE Rebuild Kit Install Manual (PDF)
• 1030369 - Line Pressure Module (PDF)
• - 1060603 68 RFE One Way Clutch (PDF)
• 1030362 Protect 68 Valve Body Upgrade kit (PDF)

Country of Origin: Canada
