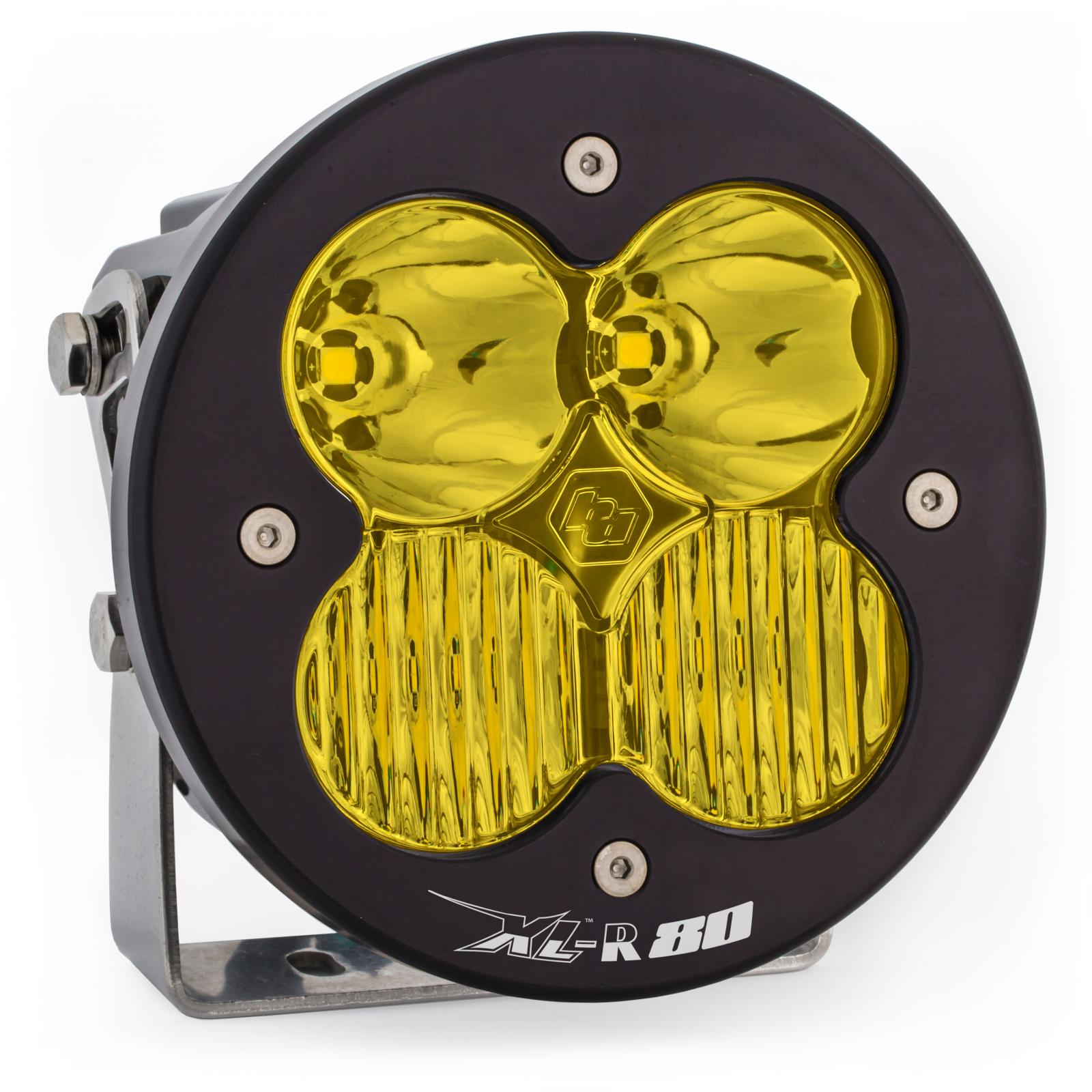

The Baja Designs XL-R 80 auxiliary LED light takes your off-road lighting to the next level, offering superior visibility and increased brightness. Using our trademarked high-speed spot reflectors, the XL-R 80 delivers a longer and wider beam pattern. This powerful next-generation LED technology provides 18% greater distance and increased intensity over our previous model, pushing an impressive 9,022 raw lumens per light. Perfect for any off-road vehicle, including trucks, vans, UTVs, and motorcycles.
Features & Benefits
- Using our trademarked high-speed spot reflectors, the XL-R 80 delivers a longer and wider beam pattern
- This powerful next-generation LED technology provides 18% greater distance and increased intensity over our previous model, pushing an impressive 9,022 raw lumens per light
- Perfect for any off-road vehicle, including trucks, vans, UTVs, and motorcycles
Specifications
| Depth (in.) |
3.65 |
| Height (in.) |
5.24 |
| Length (in.) |
5.24 |
| Weight (lbs.) |
2.45 |
| Amperage Rating (A) |
5.5 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Driving/Combo |
| Bezel Material |
Powder Coated Cast Aluminum |
| Brightness (Lumens) |
9,500 |
| Housing Color |
Black |
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color |
Amber |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Modes |
High Beam/Dimming Feature (20%) |
| Lighting Quantity |
4 |
| Lighting Technology |
Cree LED |
| Lighting Type |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
XL-R 80 LED Light Pod |
| Universal or Specific |
Universal |
| Wattage (W) |
80 |
| Wiring Harness Included |
No |
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
Documentation
Brochure / Owner's Manual
