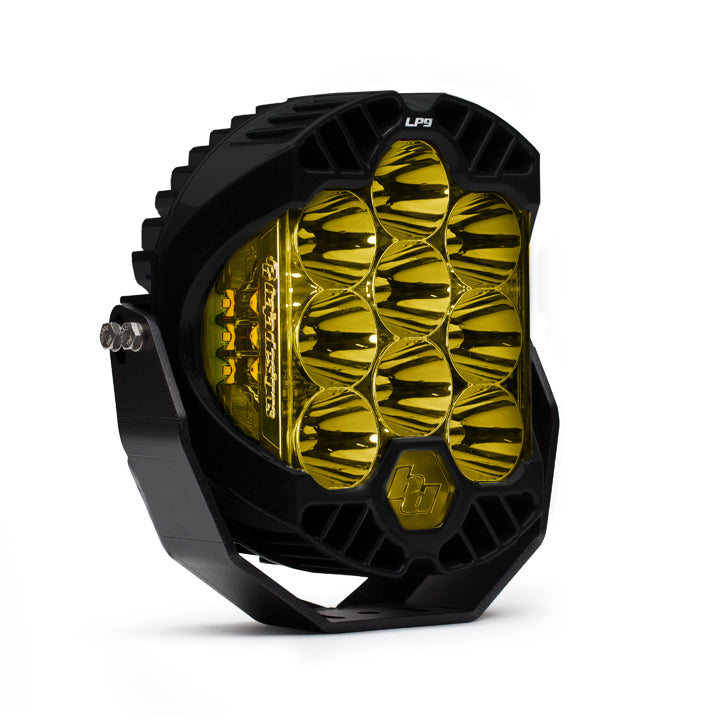

The LP9 Sport is perfect for enthusiasts that want a full size light with modern styling and advanced features. The Sport model still includes all of the technology that makes the LP9 series so popular. From Direct Ducted Cooling - that keeps your light cool under stress - to the Integrated Peripheral Technology (IPT), which produces an incredible 200 degree spread of usable light. The LP9 Sport utilizes 9 forward projecting LEDS to produce 6,500 Lumens at 61 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 2,280 lumens at 21 watts. As with all of our LED offerings, this light features uService technology - allowing customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens. Note: The LP9 Sport is simple on/off (no hi/lo) and does not include the amber backlit feature. These features are available on the LP9 Pro and Racer Editions.
Features & Benefits
- The LP9 Sport is simple on/off (no hi/lo) and does not include the amber backlit feature. These features are available on the LP9 Pro and Racer Editions.
Specifications
| Depth (in.) |
3.250 |
| Height (in.) |
8 |
| Length (in.) |
8 |
| Weight (lbs.) |
6.500 |
| Amperage Rating (A) |
6.400 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Spot |
| Bezel Material |
Powder Coat Cast Aluminum |
| Brightness (Lumens) |
9421 |
| Housing Color |
Black |
| Housing Material |
Powder Coat Cast Aluminum |
| Lens Color |
Amber |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Modes |
Beam |
| Lighting Quantity |
9 |
| Lighting Technology |
LED |
| Lighting Type |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
LP9 Sport LED Light Pod |
| Secondary Amperage Rating (A) |
1.520 |
| Secondary Brightness (Lumens) |
2302 |
| Secondary Light Quantity |
6 LEDs |
| Secondary Lighting Technology |
LED |
| Secondary Lighting Type |
Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) |
21 |
| Terminal Connector |
DT06-4S Deutsch |
| Terminal Type |
Mating Connector |
| Universal or Specific |
Universal |
| Wattage (W) |
88.320 |
| Wiring Harness Included |
No |
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
Documentation
Installation Instructions
Brochure / Owner's Manual
