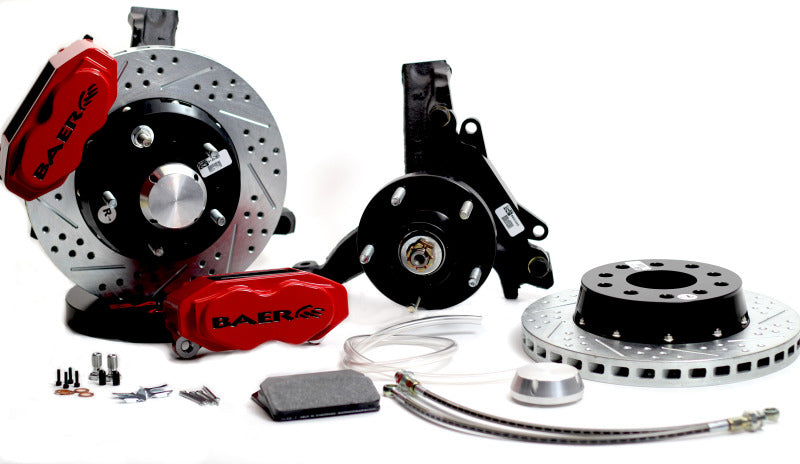

This system features the 4-piston, S4 caliper mounted to a 11 inch, 2 piece slot, drill, zinc plated rotor. The caliper has D.O.T. compliant dust and weather seals and uses the popular DR1 or HB100 pad type.
Rotors are pre-assembled with NAS high grade stainless hardware. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease, billet dust caps and come pre-assembled on 2 inch drop spindles.
All mounting brackets, stainless braided hoses and hardware are also included. The 11 inch SS4 Plus is designed just like Baer's larger systems, but in a smaller package for 15 inch wheels.
Features and Benefits:
- 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, Az
- CNC Machined from Us Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
- Dual Seals, Dust/Weather and Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.
Details:
- Fitment Notes: Comes Assembled on 2 Inch Drop Spindles
- Caliper: S4
- Caliper Color: Silver
- Disc Brake Rotor (Front) Outside Diameter: 11.0 Inch
- Applications: GM F-Body 70-81, GM A-Body 73-77, GM X-Body 75-79
- Axle: Front
- Brake Hose DOT Approved: Yes
- Disc Brake Caliper (Front) Piston Quantity: 4
- Disc Brake Caliper (Front) Type: Fixed
- Disc Brake Pad FMSI Number: DR1
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Grade Type: Performance
- Hose Material: Steel Braided
- Includes Spindles: Yes, 2 Inch Drop
- Lug Count: 5 Lug
- Min Wheel Diameter: 15.0 Inch
- Rotor Thickness: 1.02
- Rotor Type: 2-Piece
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: S125A
- Wheel Lug/Bolt Pattern: 5x4.75
- Wheel Stud Size: 1/2-20 x 2.25 Inch
