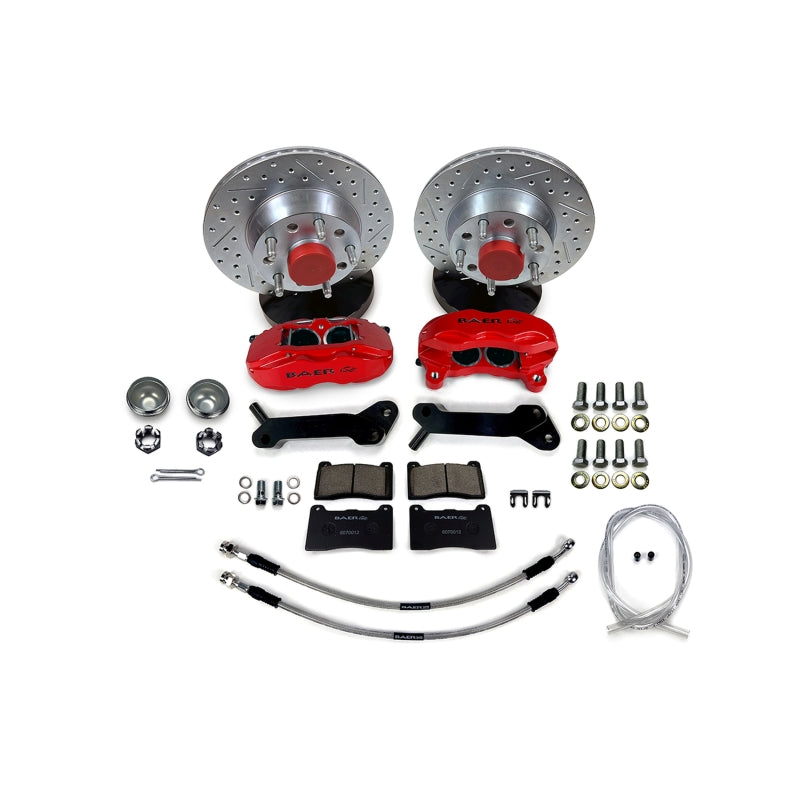

This system features the 4-piston, S4TL caliper mounted to a 11 inch, 1-Piece slot, drill, zinc plated integral hub rotor. The caliper has D.O.T. compliant dust and weather seals with a top load design for quick and simple pad changes.
Rotors come with bearing races installed and premium bearings packed with Redline synthetic grease and new dust caps. All mounting brackets, stainless braided hoses and hardware are also included.
The 11 inch SS4 is designed just like Baer's larger systems, but in a smaller package for 15 inch wheels.
Features and Benefits:
- 2-Piece, 4-Piston, S4TL, Top Loaded Caliper Manufactured in Phoenix, Az
- CNC Machined from Us Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
- Dual Seals, Dust/Weather & Pressure
- 1-Piece Slot, Drilled, Zinc-Plated Integral Hub Rotor
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.
Details:
- Fitment Notes: w/OE Disc Brake Spindles
- Caliper: S4TL

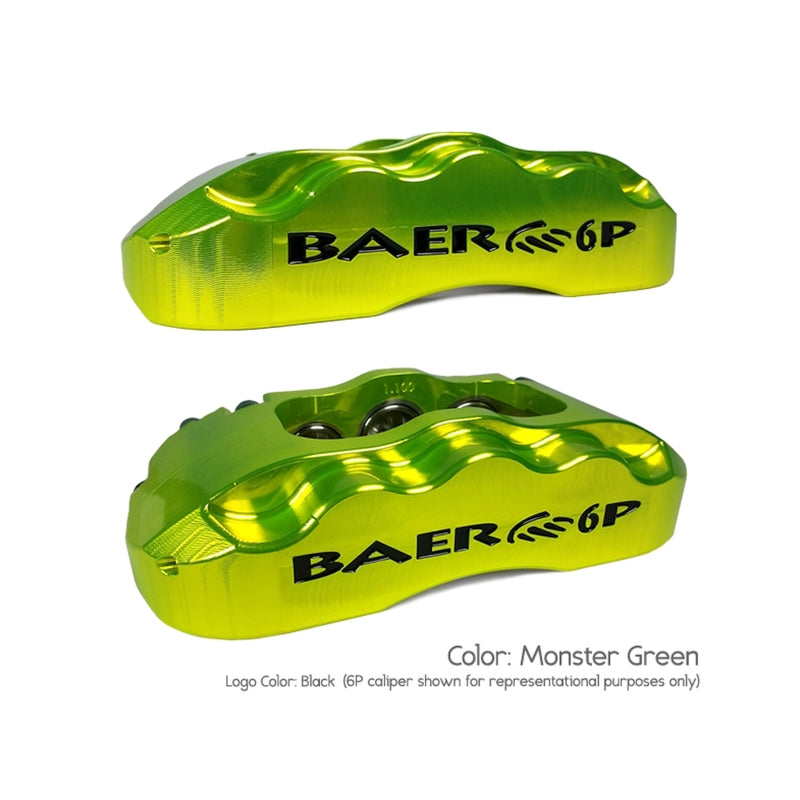

- Caliper Color: Monster Green
- Disc Brake Rotor (Front) Outside Diameter: 11.29 Inch
- Applications: Ford Mustang 71-73 (w/Disc), Mercury Cougar 71-73 (w/Disc)
- Axle: Front
- Brake Hose DOT Approved: Yes
- Disc Brake Caliper (Front) Piston Quantity: 4
- Disc Brake Caliper (Front) Type: Fixed
- Disc Brake Pad FMSI Number: 6070012
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Grade Type: Performance
- Hose Material: Steel Braided
- Lug Count: 5 Lug
- Min Wheel Diameter: 15.0 Inch
- Rotor Thickness: 0.94
- Rotor Type: 1-Piece Integral Hub
- Solid Or Vented Type Rotor: Vented
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: ST168B
- Wheel Lug/Bolt Pattern: 5x4.50
- Wheel Stud Size: 1/2-20 x 2.25 Inch
