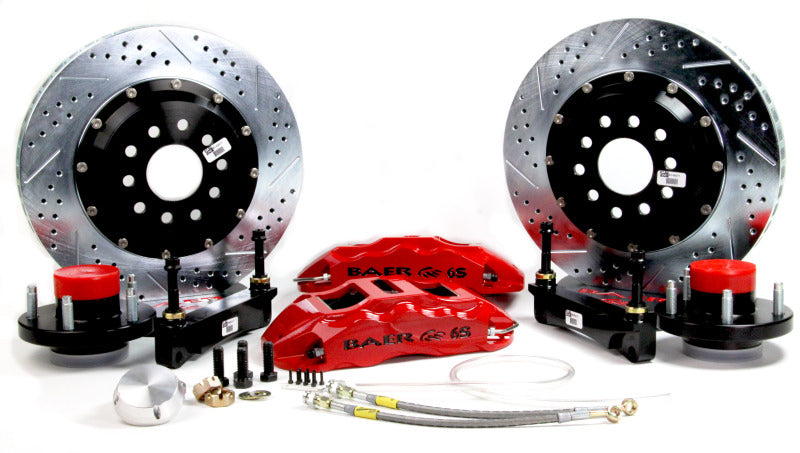

The Extreme Plus system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14 inch, 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, Az from a Us sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, dust and weather seals and uses the popular D1247 pad type.
Rotors are pre-assembled with NAS high grade stainless hardware. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps.
All mounting brackets, stainless braided hoses and hardware are also included. The 14 inch Extreme Plus fits most 18 inch or larger wheels.
Features and Benefits:
- 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, Az
- CNC Machined from Us Sourced 2618 Aluminum Forging
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather and Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Increases track width .200 inch Per Side on OE drum spindles Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer.
Details:
- Fitment Notes: w/OE, Dse, Heidt's, Fatman, Ridetech and L&H Drop Spindles

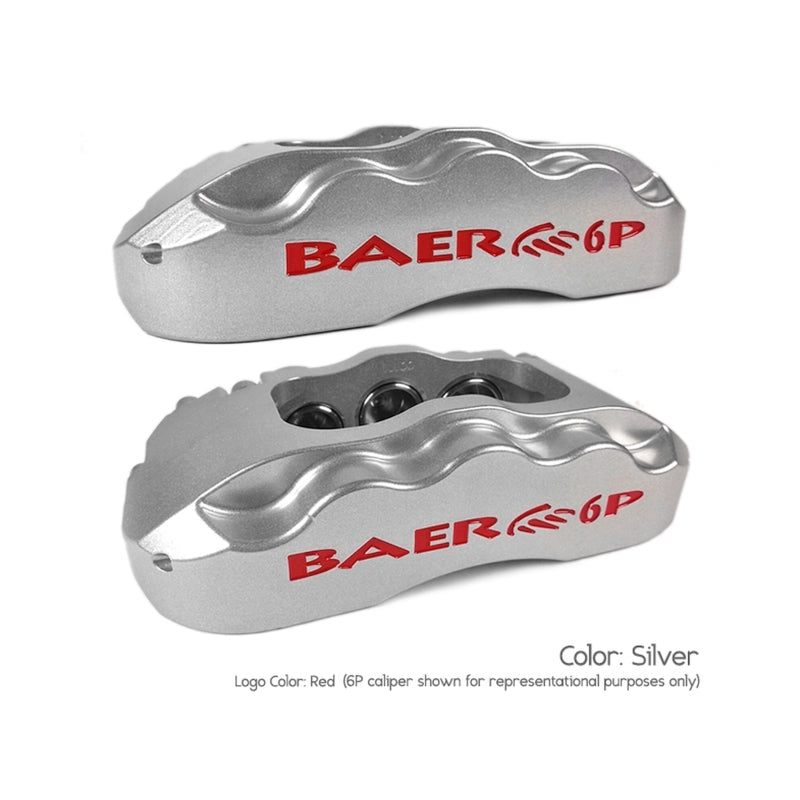

- Caliper: 6S
- Caliper Color: Silver
- Disc Brake Rotor (Front) Outside Diameter: 14.0 Inch
- Applications: GM A-Body 64-72, GM X-Body 64-74, GM F-Body 67-69
- Axle: Front
- Disc Brake Caliper (Front) Piston Quantity: 6
- Disc Brake Caliper (Front) Type: Fixed
- Disc Brake Pad FMSI Number: D1247
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Grade Type: Performance
- Hose Material: Stainless Steel
- Lug Count: 5 Lug
- Min Wheel Diameter: 18.0 Inch
- Rotor Thickness: 1.25
- Rotor Type: 2-Piece
- Spindle Type: GM Afx (also fits Dse, Heidt's, Fatman, Ridetech and L&H 2 Inch drop spindles)
- Spindles Included: No
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: N085P
- Wheel Lug/Bolt Pattern: 5x4.75
- Wheel Stud Size: 1/2-20 x 2.25 Inch
