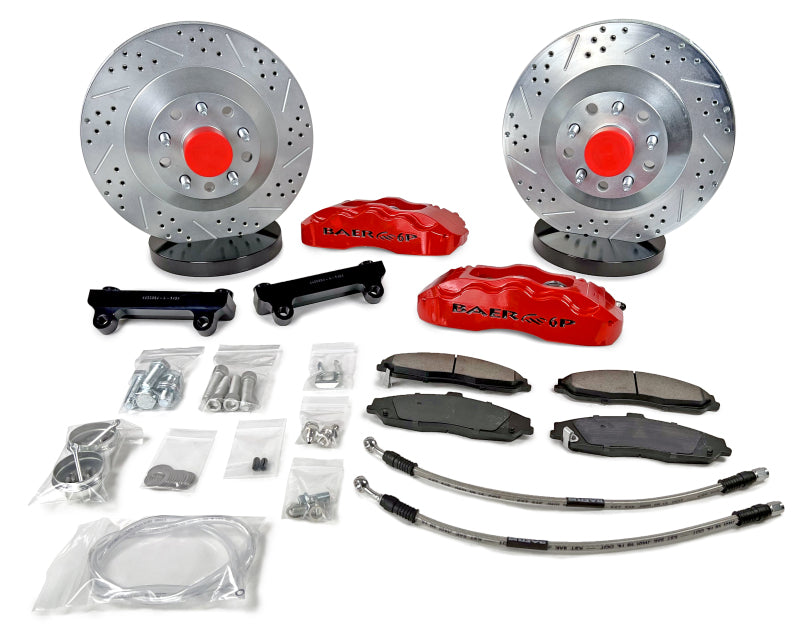

This system features the 6-piston, 6P caliper mounted to a 13 inch, 1-piece slot, drill, zinc plated integral hub rotor. The caliper has D.O.T. compliant dust and weather seals and uses the popular D0731 pad type.
Rotors come with bearing races installed and premium bearings packed with Redline synthetic grease and new dust caps. All mounting brackets, stainless braided hoses and hardware are also included.
The 13 inch Pro is designed to fit most 17 inch or larger wheels.
Features and Benefits:

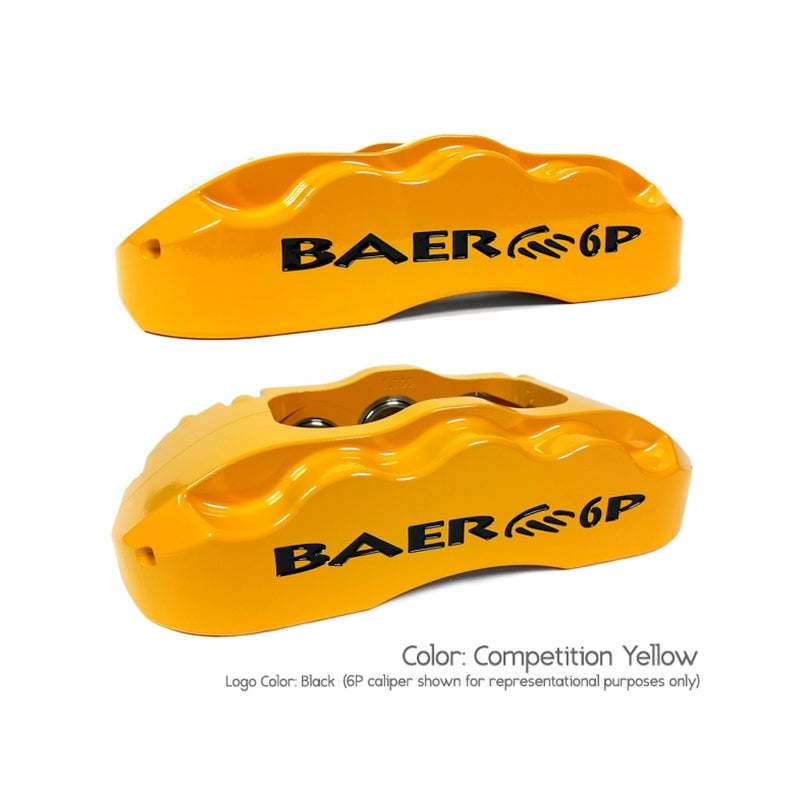

- 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, Az
- CNC Machined from Us Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure

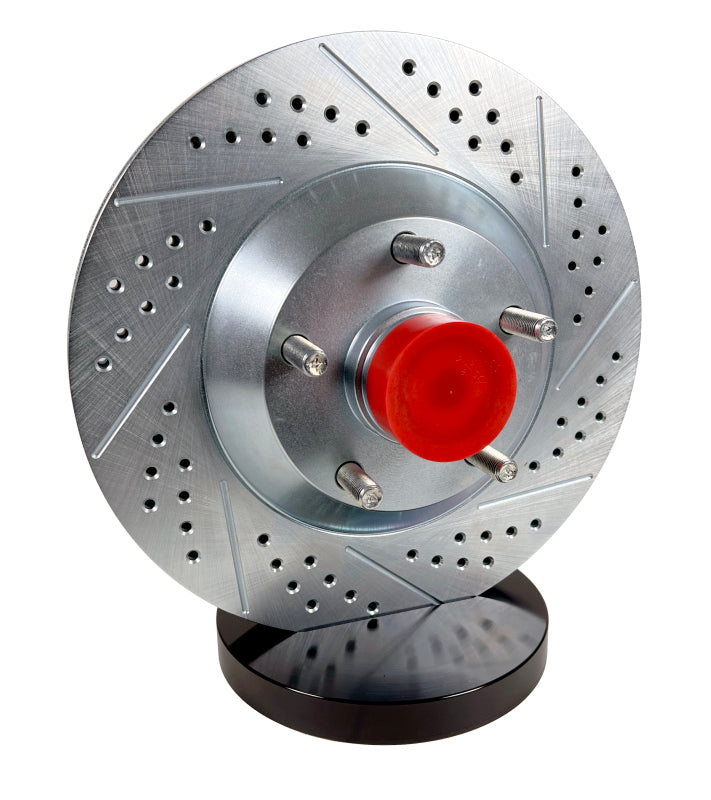

- 1-Piece Slot, Drilled, Zinc-Plated Integral Hub Rotor
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.
Details:
- Fitment Notes: w/OE, Dse, Heidt's, Fatman, Ridetech and L&H Drop Spindles
- Caliper: 6P
- Caliper Color: Comp Yellow
- Disc Brake Rotor (Front) Outside Diameter: 13.0 Inch
- Applications: GM X-Body 64-74, GM F-Body 67-69, GM A-Body 64-72
- Axle: Front
- Brake Hose DOT Approved: Yes
- Disc Brake Caliper (Front) Piston Quantity: 6
- Disc Brake Caliper (Front) Type: Fixed
- Disc Brake Pad FMSI Number: D0731
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Grade Type: Performance
- Hose Material: Steel Braided
- Lug Count: 5 Lug
- Min Wheel Diameter: 17.0 Inch
- Rotor Thickness: 1.1
- Rotor Type: 1-Piece Integral Hub
- Spindle Type: GM Afx (also fits Dse, Heidt's, Fatman, Ridetech and L&H 2 Inch drop spindles)
- Spindles Included: No
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: Q085H
- Wheel Lug/Bolt Pattern: 5x4.75
- Wheel Stud Size: 1/2-20 x 1.875 Inch
