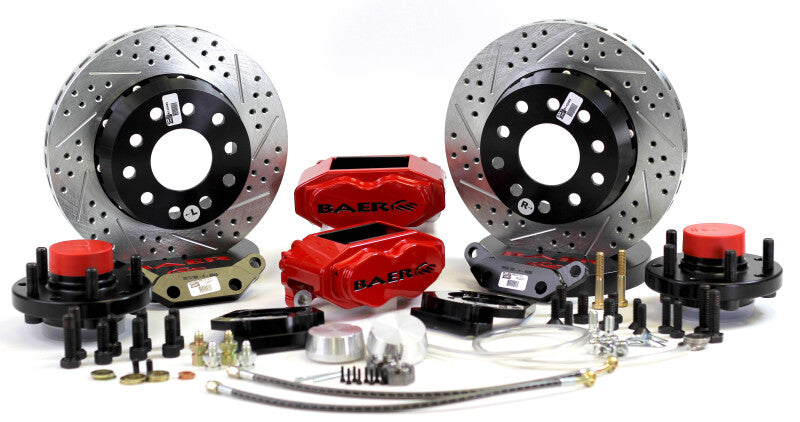

This system features the 4-piston, S4 caliper mounted to a 11 inch, 2 piece slot, drill, zinc plated rotor. The caliper has D.O.T. compliant dust and weather seals and uses the popular DR1 or HB100 pad type.
Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware.
All mounting brackets, stainless braided hoses and hardware are also included. The 11 inch SS4 Plus is designed just like Baer's larger systems, but in a smaller package for 15 inch wheels.
Features and Benefits:
- 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, Az
- CNC Machined from Us Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.
Details:
- Fitment Notes: w/OE Disc Brake Spindles, w/OE Drum Brake Spindles

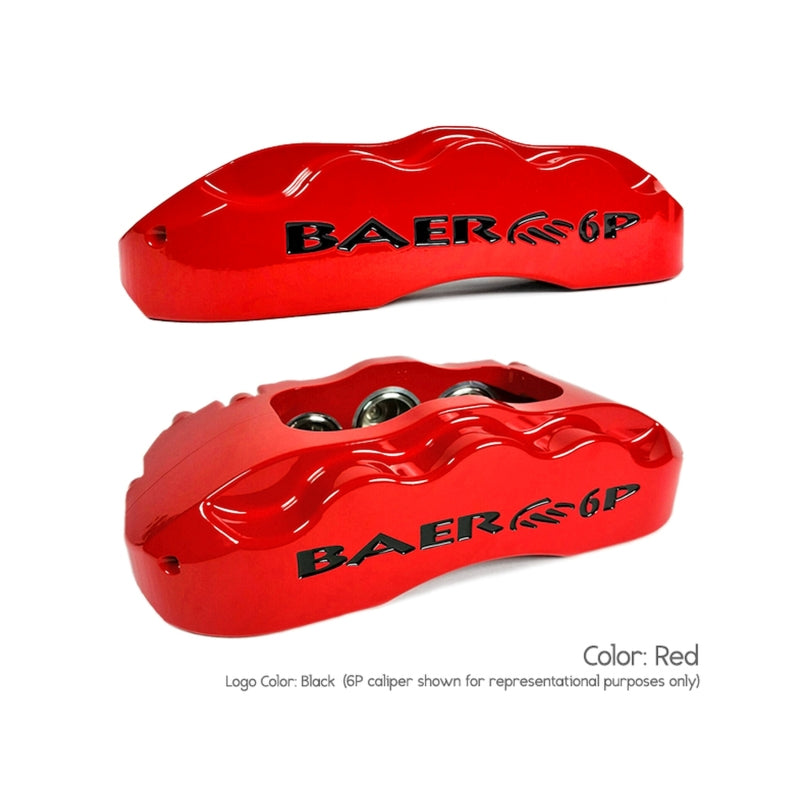

- Caliper: S4
- Caliper Color: Red
- Disc Brake Rotor (Front) Outside Diameter: 11.0 Inch
- Applications: Ford Torino 69 (w/Drum), Mercury Comet 66-69 (w/Drum), Ford Mustang 67 (w/Disc), Ford Mustang 65-69 (w/Drum), Mercury Cyclone 69 (w/Drum), Ford Fairlane 62-69 (w/Drum), Mercury Cougar 67 (w/Disc), Mercury Cougar 67-69 (w/Drum), Ford Falcon 63-69 (w/Drum)
- Axle: Front
- Brake Hose DOT Approved: Yes
- Disc Brake Caliper (Front) Piston Quantity: 4
- Disc Brake Caliper (Front) Type: Fixed
- Disc Brake Pad FMSI Number: DR1
- Disc Brake Rotor (Front) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Grade Type: Performance
- Hose Material: Steel Braided
- Lug Count: 5 Lug
- Min Wheel Diameter: 15.0 Inch
- Rotor Thickness: 1.02
- Rotor Type: 2-Piece
- Surface Type: Slotted, Drilled and Zinc Plated
- Template: S162A
- Wheel Lug/Bolt Pattern: 5x4.50
- Wheel Stud Size: 1/2-20 x 2.25 Inch
