Baer Brakes 14in Extreme+ Rear SDZ Brake Kit - Red - 4262205R

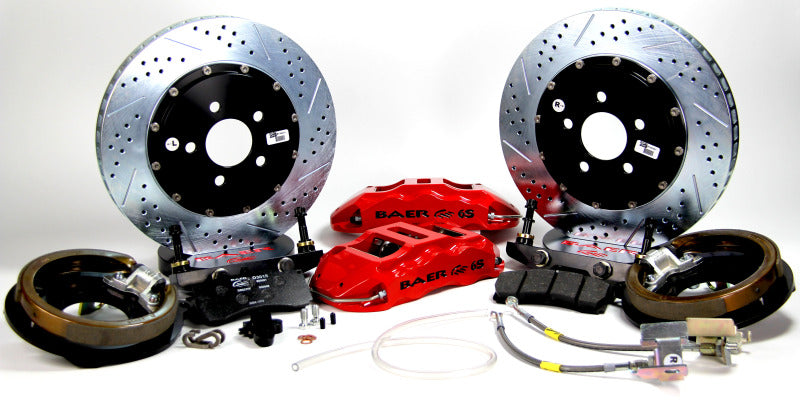

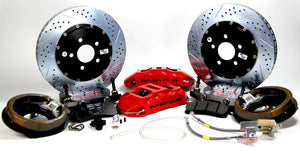

The Extreme Plus system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14 inch, 2 piece slot, drill, zinc plated rotor. The caliper has D.O.T. compliant dust and weather seals and uses the popular D1247 pad type.

Rotors are pre-assembled with NAS high grade stainless hardware. Baer's unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly.

Stainless braided hoses and hardware are also included. The 14 inch Extreme Plus fits most 18 inch or larger wheels.

Features and Benefits:

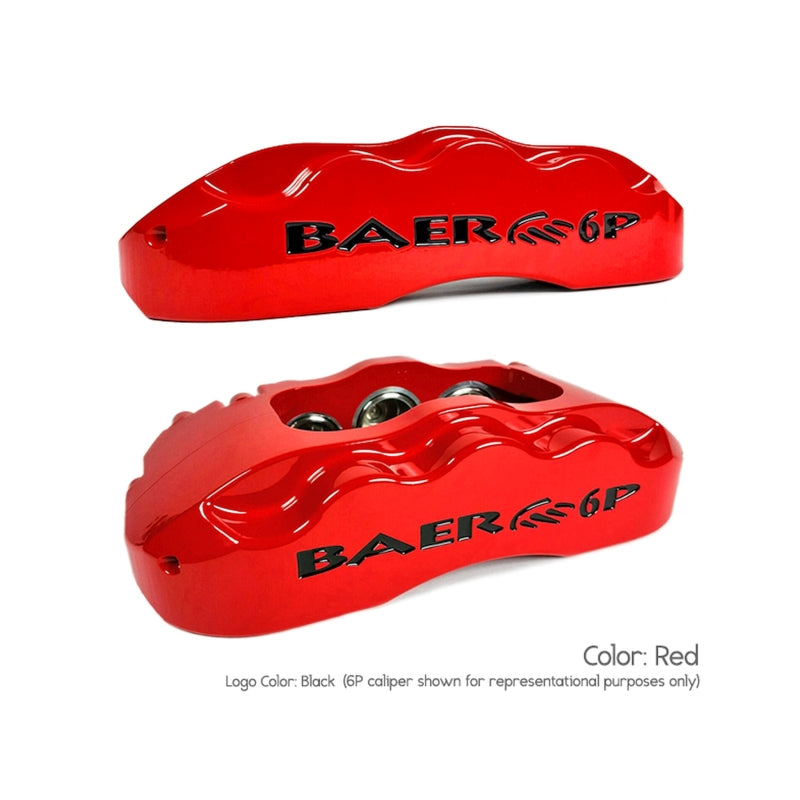

• 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, Az
• CNC Machined from Us Sourced 2618 Aluminum Forging
• Powder Coated Finish
• Stainless Steel Pistons, Abutments and Noise Suppression Clips
• Staggered Pistons to Minimize Uneven Pad Wear
• Dual Seals, Dust/Weather & Pressure
• 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat

Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.

Details:

• Caliper: 6S
• Caliper Color: Red
• Disc Brake Rotor (Rear) Outside Diameter: 14.0 Inch
• Axle: Rear

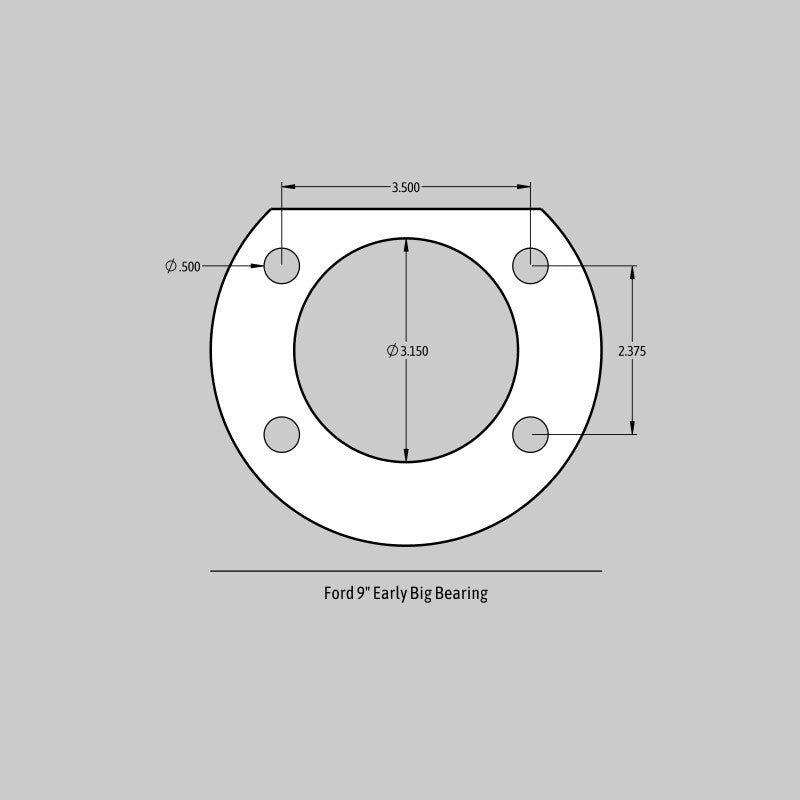

• Axle Flange: Ford 9 Inch Early Big Bearing
• Disc Brake Caliper (Rear) Piston Quantity: 6
• Disc Brake Caliper (Rear) Type: Fixed
• Disc Brake Pad FMSI Number: D1247
• Disc Brake Rotor (Rear) Construction: Vented
• Emission Code: 6
• Export Description: Brake Components
• Grade Type: Performance
• Hose Material: Stainless Steel
• Includes Park Brake: Yes
• Includes Park Brake Cables: No
• Lug Count: 5 Lug
• Min Wheel Diameter: 18.0 Inch
• Rotor Thickness: 1.25
• Rotor Type: 2-Piece
• Surface Type: Slotted, Drilled and Zinc Plated
• Template: N085P
• Wheel Lug/Bolt Pattern: 5x5.00
