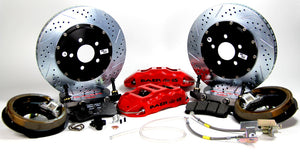

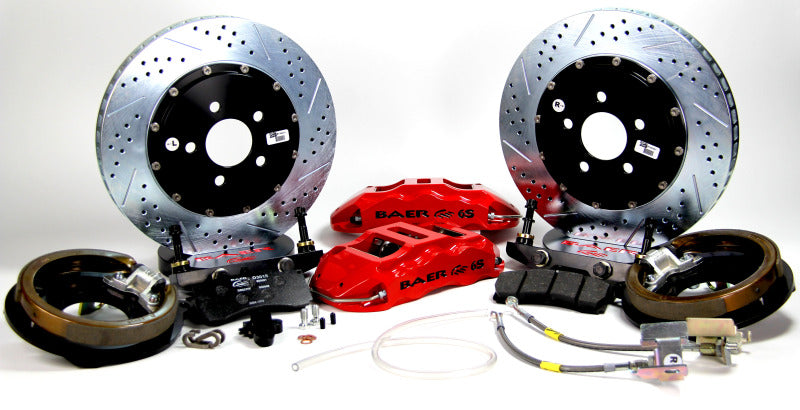

The Extreme Plus system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14 inch, 2 piece slot, drill, zinc plated rotor. The caliper has D.O.T. compliant dust and weather seals and uses the popular D1247 pad type.
Rotors are pre-assembled with NAS high grade stainless hardware. Baer's unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly.
Stainless braided hoses and hardware are also included. The 14 inch Extreme Plus fits most 18 inch or larger wheels.
Features and Benefits:
- 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, Az
- CNC Machined from Us Sourced 2618 Aluminum Forging
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.
Details:
- Fitment Notes: w/OE 8.8 Inch C-clip Rear end
- Caliper: 6S

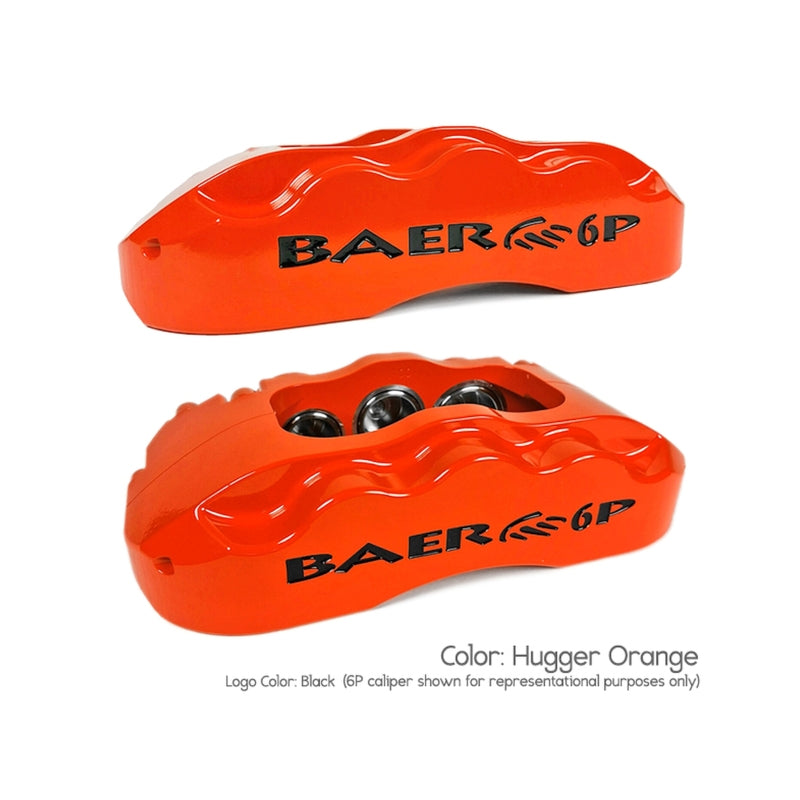

- Caliper Color: Hugger Orange
- Disc Brake Rotor (Rear) Outside Diameter: 14.0 Inch
- Applications: Ford Mustang 05-14
- Axle: Rear
- Disc Brake Caliper (Rear) Piston Quantity: 6
- Disc Brake Caliper (Rear) Type: Floating
- Disc Brake Pad FMSI Number: D1247
- Disc Brake Rotor (Rear) Construction: Vented
- Emission Code: 6
- Export Description: Brake Components
- Grade Type: Performance
- Hose Material: Stainless Steel
- Includes Park Brake: Yes
- Includes Park Brake Cables: No, Re-uses OE
- Lug Count: 5 Lug
- Min Wheel Diameter: 18.0 Inch
- Rotor Thickness: 1.25
- Rotor Type: 2-Piece
- Surface Type: Slotted, Drilled and Zinc Plated

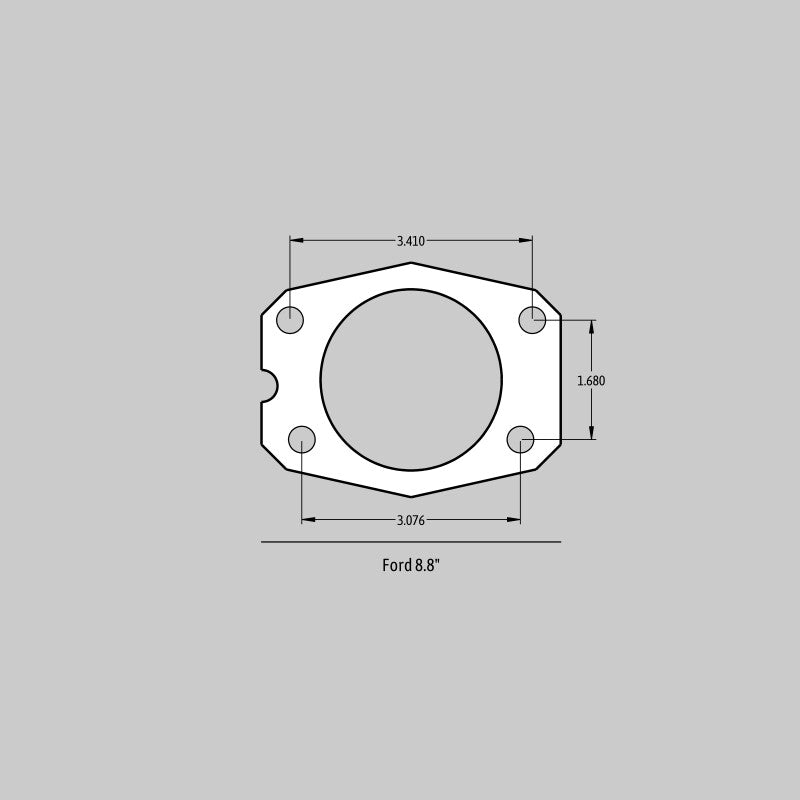

- Template: N050P
- Wheel Lug/Bolt Pattern: 5x4.50
