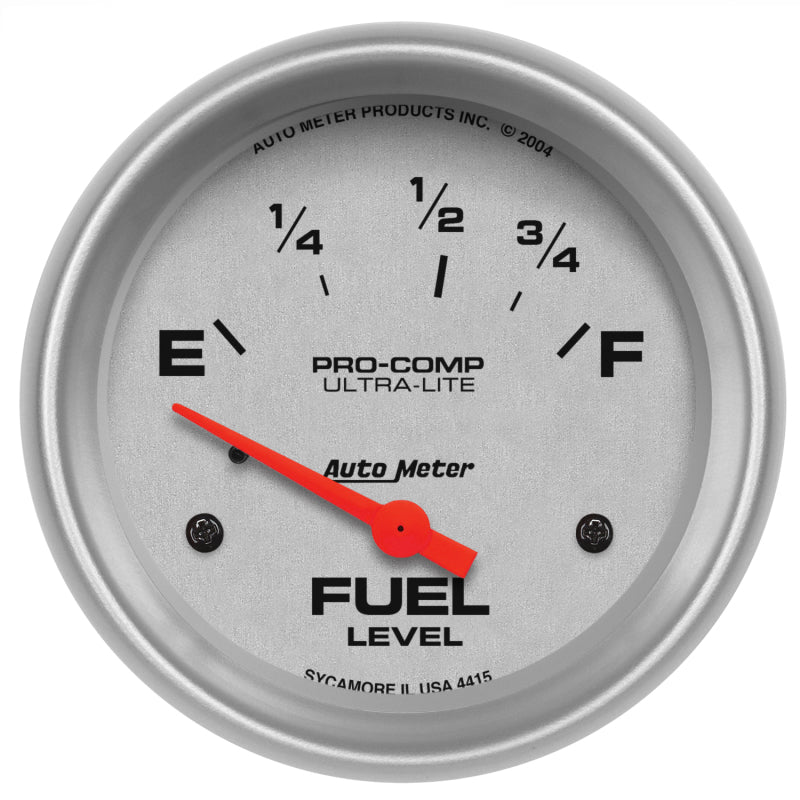

One Of The Most Necessary Gauges In A Dashboard, Autometer Makes It Easy By Offering 5 Different Resistance Range Configuration To Match Your Existing Fuel Sending Unit. Available In 0-90 Ohm (Gm Mid 60S To Mid 90S), 0-30 Ohm (Early Gm), 73-10 Ohm (Pre 90S Ford And Chrysler), 16-158 Ohm (Later Model Fords) And 240-33 Ohm (Aftermarket Senders Such As The Autometer 3262). Our Patented Air Core Meter Movement Receives Extra Dampening To Help Combat The Effects Fuel Slosh In Non-Baffled Tanks.
Installation Instructions
Specifications
-
Size (in): 2-5/8"
-
Outer Bezel Diameter: 2-7/8"
-
Includes Bulb & Socket: Part # 3220
-
Includes Mounting Hardware: Part # 3245
-
Cup/Hole Size (mm): 66.7mm
-
Range: 73 O Empty / 10 O Full (NON-LINEAR)
-
Bezel Color: Brushed Aluminum
-
Movement: Electric, Air-Core
-
Lens Style: Flat, Clear
-
Pointer Color: Fluorescent Red
-
Gauge Type: Fuel Level
-
Lighting Type: Incandescent
-
Includes Light Covers: Red 3214 & Green 3215
-
Dial Color: Silver
-
Bezel Style: Super Bezel
-
Series: ULTRA-LITE
-
Lighting Color: White Incandescent
