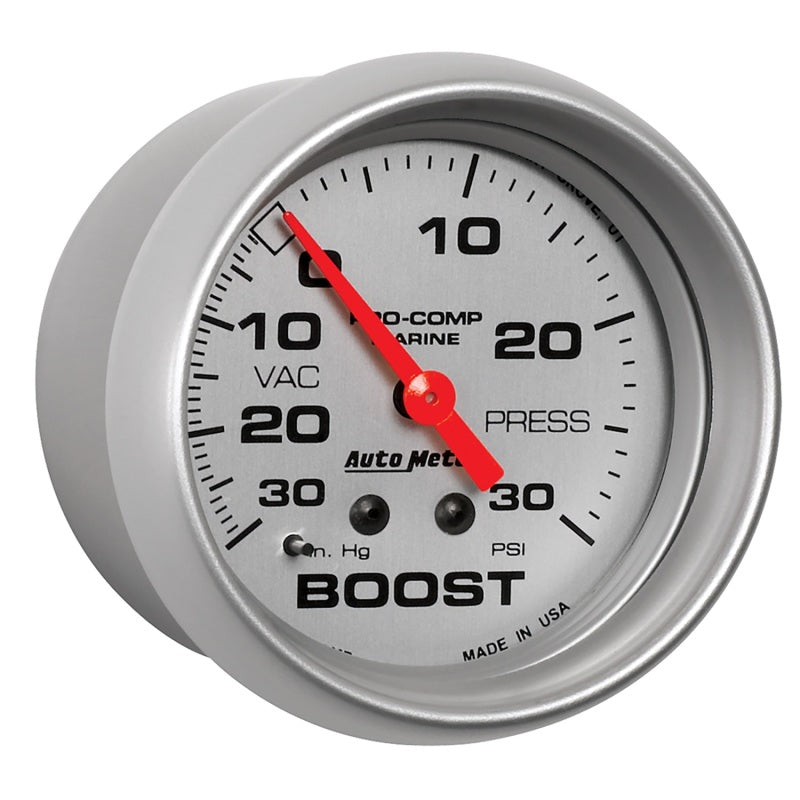

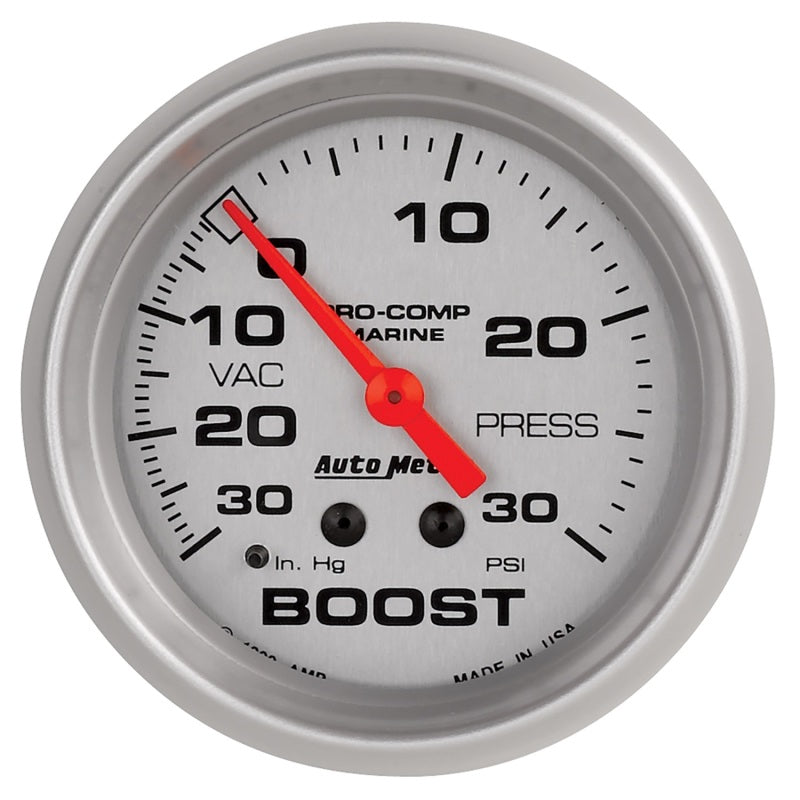

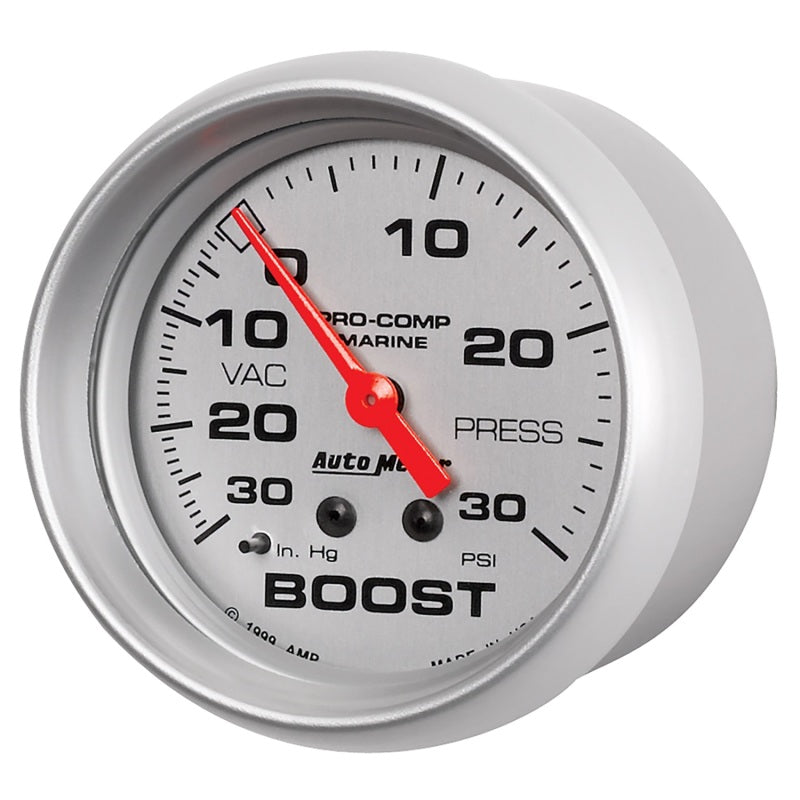

The standard in the industry, AutoMeter’s Mechanical Boost/Vac gauges have found their way into more builds than any other. Using a patented, high precision bourdon tube meter movement, there isn’t another gauge on the market that can lay claim to the levels of accuracy or durability you’ll find here. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. Appropriate 1/8” NPT fittings and line kits are available separately.
Specifications
-
Cup/Hole Size (in): 2-5/8"
-
Outer Bezel Diameter: 2-7/8"
-
Includes Mounting Hardware: Part # 2226
-
Range: 30 IN HG/20 PSI
-
Includes Bulb & Socket: Part # 3220
-
Cup/Hole Size (mm): 66.7mm
-
Bezel Color: Brushed Aluminum
-
Lens Style: Flat, Clear
-
Pointer Color: Fluorescent Red
-
Lighting Type: Incandescent
-
Series: MARINE SILVER ULTRA-LITE
-
Includes Light Covers: Red 3214 & Green 3215
-
Dial Color: Silver
-
Bezel Style: Super Bezel
-
Gauge Type: Vacuum/Boost
-
Lighting Color: White Incandescent
