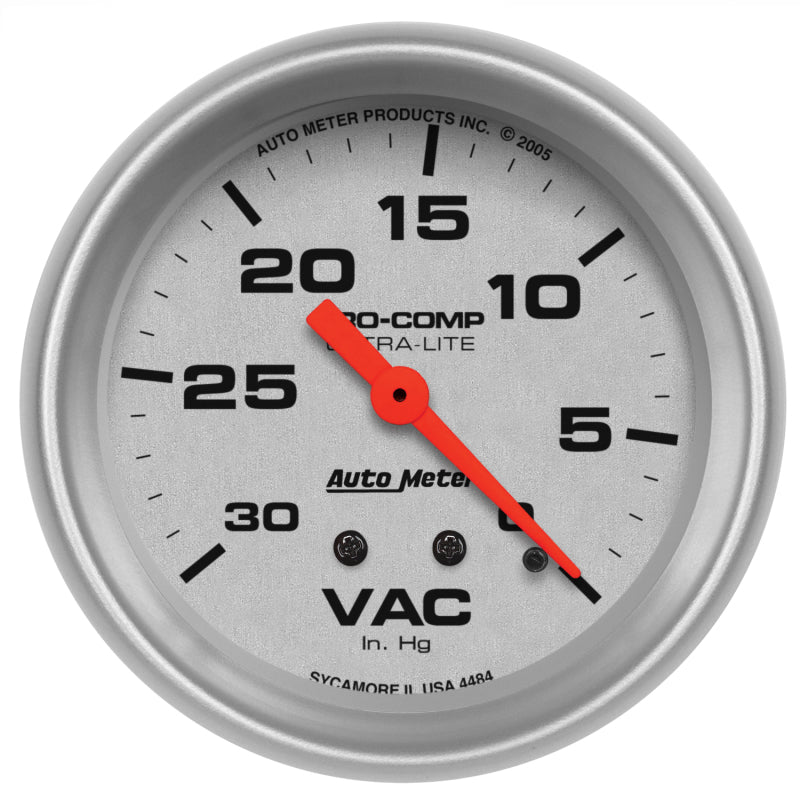

Whether Tuning Your Vehicle For Maximum Performance Or Monitoring Your Driving For Maximum Fuel Economy, Autometers Mechanical Vacuum Gauge Has Been The Solution Trusted By Professionals For Years. An Ultra Precise Bourdon Tube Meter Movement Sits At The Heart Of This Instrument, Providing The Kind Of Accuracy And Durability Necessary To Compete At The Highest Levels. A Simple 1/8" Npt Fitting On The Back Makes Installation Easy, And 1/8" Nylon Line And Fittings Are Included.
Installation Instructions
Specifications
-
Range: 0-30 IN HG
-
Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
-
Includes Tubing: 10 ft. nylon tubing
-
Cup/Hole Size (in): 2-5/8"
-
Outer Bezel Diameter: 2-7/8"
-
Includes Bulb & Socket: Part # 3220
-
Includes Mounting Hardware: Part # 3245
-
Cup/Hole Size (mm): 66.7mm
-
Bezel Color: Brushed Aluminum
-
Lens Style: Flat, Clear
-
Pointer Color: Fluorescent Red
-
Lighting Type: Incandescent
-
Includes Light Covers: Red 3214 & Green 3215
-
Dial Color: Silver
-
Bezel Style: Super Bezel
-
Series: ULTRA-LITE
-
Lighting Color: White Incandescent
