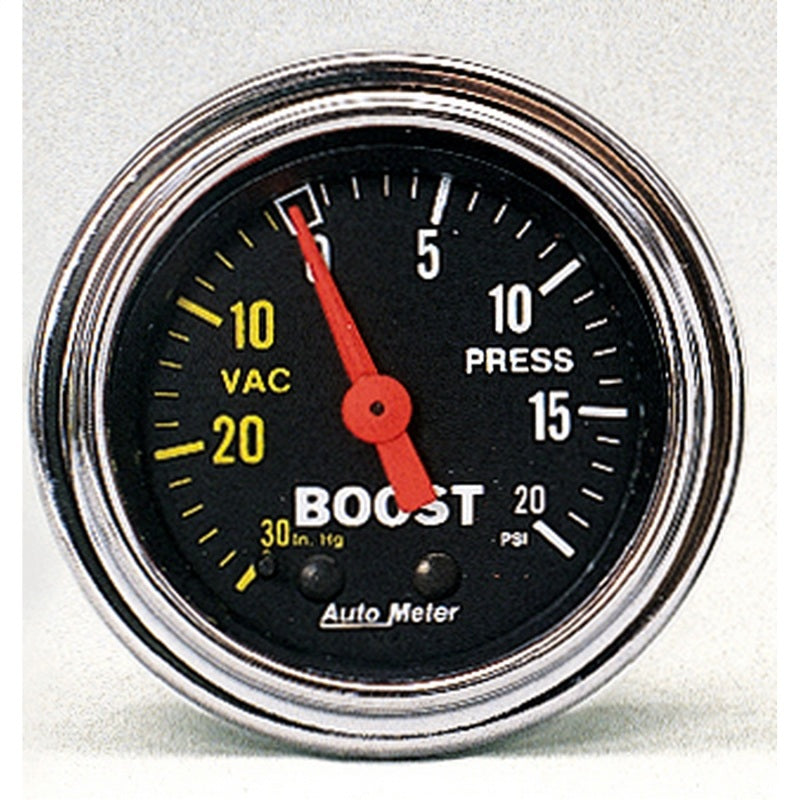

The standard in the industry, AutoMeter’s Mechanical Boost/Vac Gauges have found their way into more builds than any other. Using a patented, high precision bourdon tube meter movement, there isn’t another gauge on the market that can lay claim to the levels of accuracy or durability you’ll find here. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. Includes 1/8” NPT fittings and nylon line kit.
Specifications
-
Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
-
Includes Tubing: 10 ft. nylon tubing
-
Cup/Hole Size (in): 2-1/16"
-
Outer Bezel Diameter: 2-5/16"
-
Includes Mounting Hardware: Part # 2230
-
Range: 30 IN HG/20 PSI
-
Includes Bulb & Socket: Part # 3220
-
Cup/Hole Size (mm): 52.4mm
-
Dial Color: Black
-
Gauge Type: Boost/Vacuum
-
Bezel Color: Chrome
-
Lens Style: Flat, Clear
-
Pointer Color: Fluorescent Red
-
Lighting Type: Incandescent
-
Includes Light Covers: Red 3214 & Green 3215
-
Bezel Style: SAE
-
Series: TRADITIONAL CHROME
-
Lighting Color: White Incandescent
