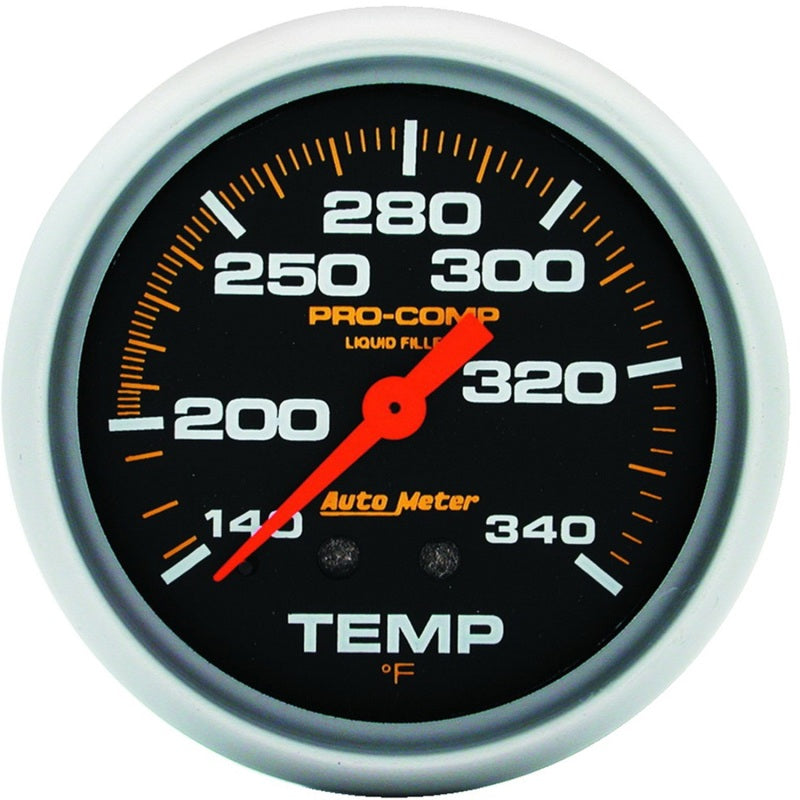

Whatever temperature source you need to measure, AutoMeter’s Mechanical Temperature Gauges will provide you a highly accurate, bullet proof reliable solution. The bourdon tube meter movement used in this gauge is engineered to function in even the harshest conditions and no electrical connection is needed for operation. A 6’ Capillary tube and 1/2” NPT mounting nut are included.
Specifications
-
Includes Adapter/Fitting: 1/2" NPT adapter/fitting.
-
Range: 140-340 °F
-
Cup/Hole Size (in): 2-5/8"
-
Outer Bezel Diameter: 2-7/8"
-
Includes Bulb & Socket: Part # 3211
-
Includes Mounting Hardware: Part # 3245
-
Cup/Hole Size (mm): 66.7mm
-
Includes Tubing: 8 ft. Capillary Tube
-
Dial Color: Black
-
Bezel Color: Brushed Aluminum
-
Lens Style: Flat, Clear
-
Pointer Color: Fluorescent Red
-
Lighting Type: Incandescent
-
Series: PRO-COMP
-
Includes Light Covers: Red 3214 & Green 3215
-
Bezel Style: Super Bezel
-
Lighting Color: White Incandescent
