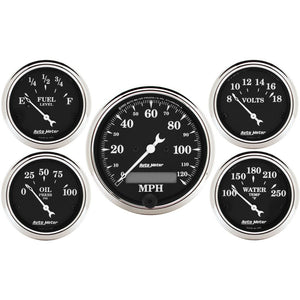

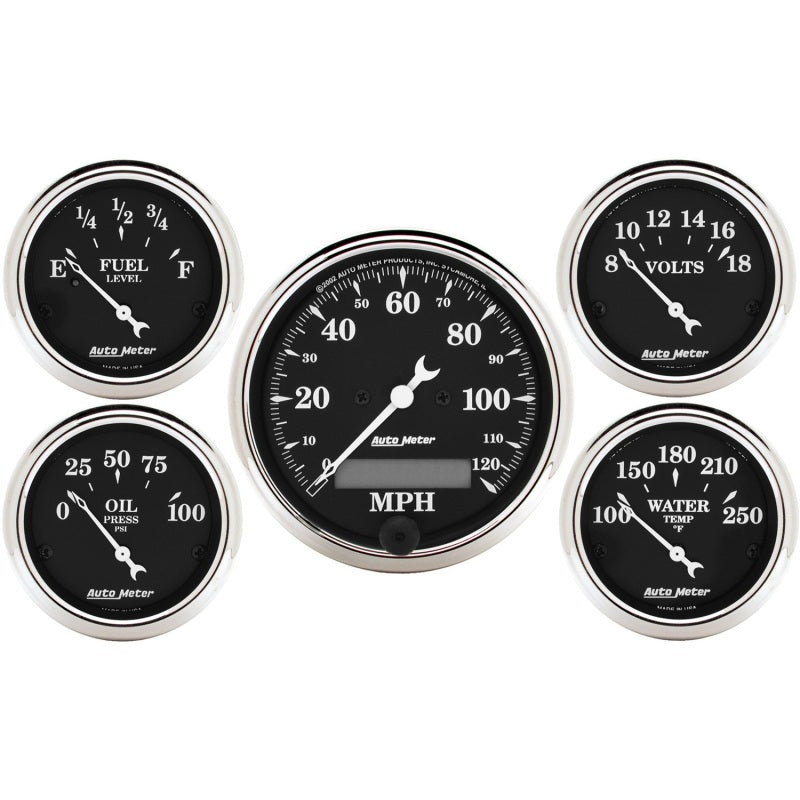

AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
Features & Benefits
- sending unit adapters (1/4" , 3/8" , and 1/2" NPT adapters)
- bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
- Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
- Kit includes fuel level sender (240E/33F)
- oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD)
Specifications
-
Range: 120 MPH/100 PSI/100-250 °F/8-18V/240OE-33OF
-
Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
-
Includes Bulb & Socket: Part # 3212
-
Gauge Type: 5 Piece Kit
-
Dial Color: Black
-
Includes Mounting Hardware: Brackets Included
-
Bezel Color: Chrome
-
Lens Style: Domed, Clear
-
Includes Sensor Unit: Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - VSS Sensor
-
Lighting Type: Incandescent
-
Series: OLD TYME BLACK
-
Includes Light Covers: Red 3214 & Green 3215
-
Bezel Style: Street Rod
-
Pointer Color: White
-
Lighting Color: White Incandescent
