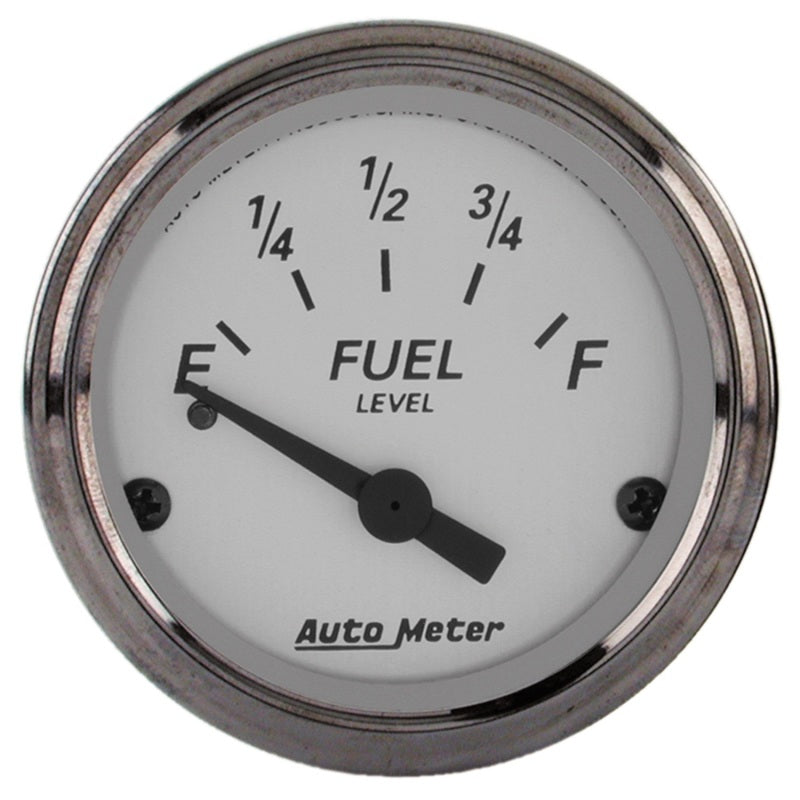

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering a variety of different fuel level gauges to match the resistance range of your existing fuel sending unit. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. Don’t get stranded down the road or at the track.
Specifications
-
Range: 0 O Empty / 30 O Full
-
Cup/Hole Size (in): 2-1/16"
-
Outer Bezel Diameter: 2-15/64"
-
Includes Mounting Hardware: Part # 2230
-
Includes Bulb & Socket: Part # 3220
-
Cup/Hole Size (mm): 52.4mm
-
Series: AMERICAN PLATINUM
-
Pointer Color: Black
-
Lens Style: Domed, Clear
-
Movement: Electric, Air-Core
-
Lighting Type: Incandescent
-
Bezel Color: Nickel
-
Includes Light Covers: Red 3214 & Green 3215
-
Dial Color: Silver
-
Bezel Style: Street Rod
-
Lighting Color: White Incandescent
