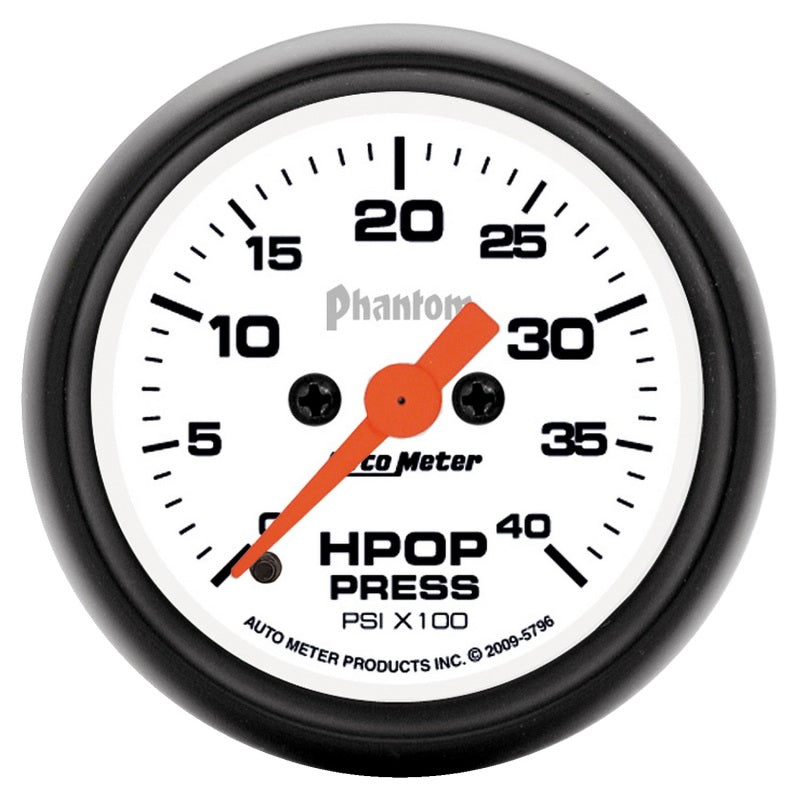

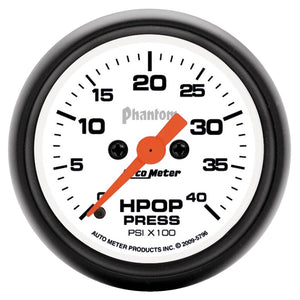

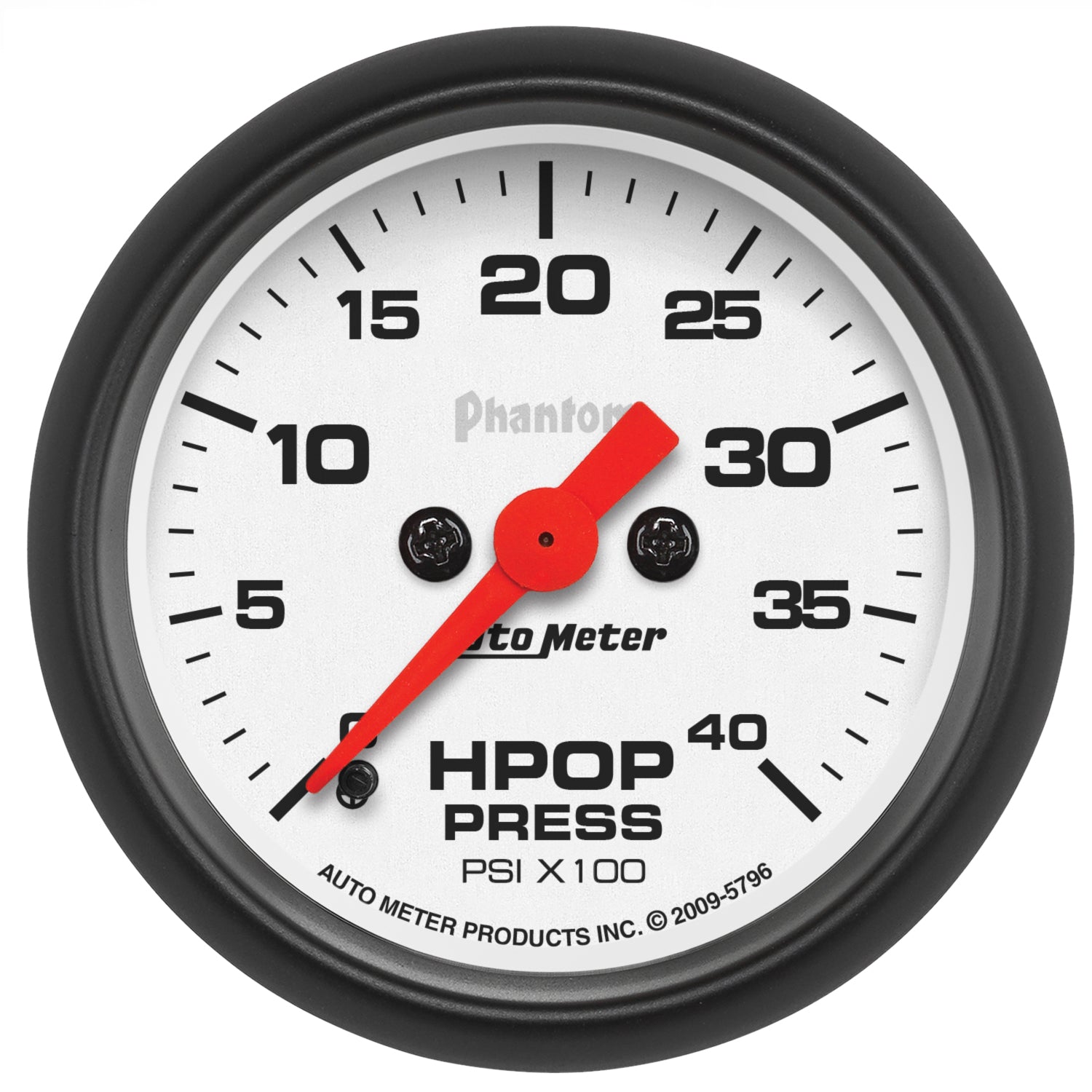

Ultra High Pressures In Modern Direct Injected Diesel Applications Require Precise Monitoring To Assure The Longevity And Power Output Of Your Engine. Using Autometers Advanced Digital Stepper Motor Drive, This Gauge Provide The Most Accurate Possible Reading, Professional Grade Reliability And Smooth Pointer Movement. Connects Directly To Your Factory Sensor With An Included Wiring Harness.
Features & Benefits
- Gauge kit includes wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Included wiring harness connects to original equipment High Pressure Oil Pump sensor wiring.
- For use with 1994-2003 7.3L & 2003-2007 6.0L Ford Powerstroke Engines ONLY
- Autometers Race Proven Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy While Keeping Hazardous Fluids Outside Of The Vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Specifications
-
Range: 0-4K PSI
-
Cup/Hole Size (in): 2-1/16"
-
Outer Bezel Diameter: 2-1/4"
-
Includes Mounting Hardware: Part # 2230
-
Includes Bulb & Socket: Part # 3220
-
Cup/Hole Size (mm): 52.4mm
-
Bezel Color: Black
-
Movement: Electric, Digital Stepper Motor
-
Lens Style: Flat, Clear
-
Pointer Color: Fluorescent Red
-
Gauge Type: HPOP Pressure
-
Lighting Type: Incandescent
-
Series: PHANTOM
-
Includes Light Covers: Red 3214 & Green 3215
-
Bezel Style: Super Bezel
-
Dial Color: White
-
Lighting Color: White Incandescent
