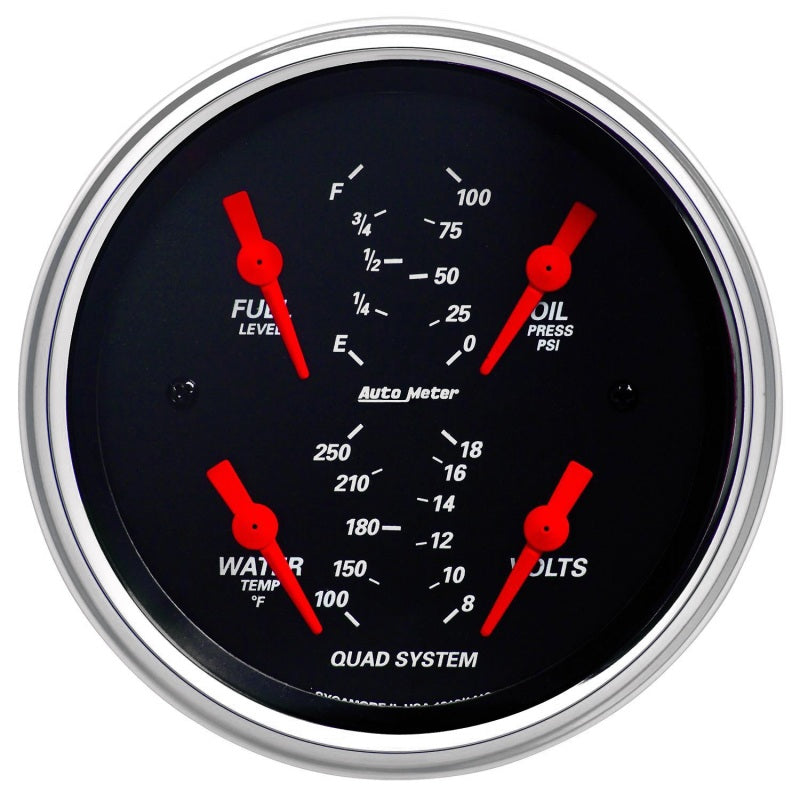

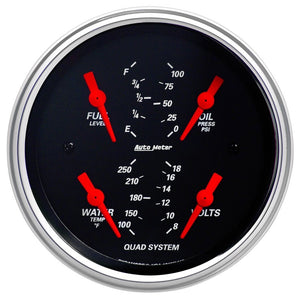

Sometimes Space Is Limited. The Autometer Quad Gauge Provides A Solution To Limited Dashboard Space While Providing A Clean Look. Individual Autometer Air Core Meter Movements For Each Function Provide The Accuracy And Durability Required By Even The Most Demanding Applications. Includes A Single Wire 1/8" Npt Temperature Sender And A 1/8" Npt Oil Pressure Sender. The Voltmeter Reads From 8-18V On Negative Ground Electrical Systems And Fuel Level Resistance Range Is 240 Ohms Empty To 33 Ohms Full (Compatible With Autometers 3262 Fuel Level Sender).
Features & Benefits
- Gauge kit includes 1/8" NPT pressure sender, 1/4" NPT adapter, 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
Specifications
-
Range: 100 PSI/100-250 °F/8-18V/240OE-33OF
-
Outer Bezel Diameter: 3-3/4"
-
Cup/Hole Size (in): 3-3/8"
-
Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
-
Includes Bulb & Socket: Part # 3211
-
Cup/Hole Size (mm): 85.7mm
-
Dial Color: Black
-
Includes Mounting Hardware: Bracket Included
-
Bezel Color: Chrome
-
Series: DESIGNER BLACK
-
Lens Style: Domed, Clear
-
Movement: Electric, Air-Core
-
Pointer Color: Fluorescent Red
-
Lighting Type: Incandescent
-
Includes Sensor Unit: Oil Sender 2242 - Water Sender 2258
-
Includes Light Covers: Red 3214 & Green 3215
-
Bezel Style: Street Rod
-
Lighting Color: White Incandescent
