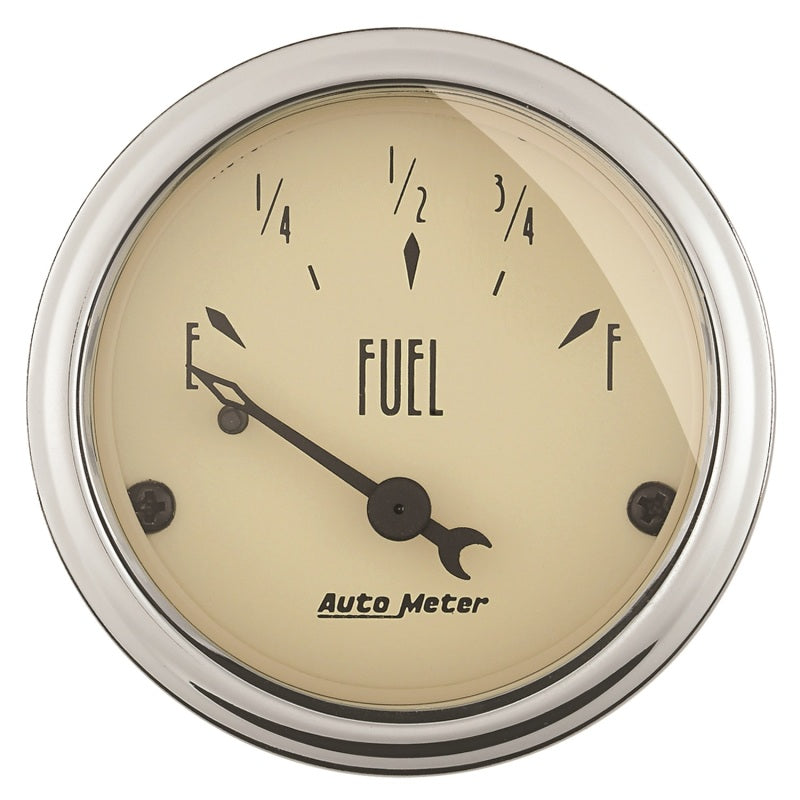

One Of The Most Necessary Gauges In A Dashboard, Autometer Makes It Easy By Offering 5 Different Resistance Range Configuration To Match Your Existing Fuel Sending Unit. Available In 0-90 Ohm (Gm Mid 60S To Mid 90S), 0-30 Ohm (Early Gm), 73-10 Ohm (Pre 90S Ford And Chrysler), 16-158 Ohm (Later Model Fords) And 240-33 Ohm (Aftermarket Senders Such As The Autometer 3262). Our Patented Air Core Meter Movement Receives Extra Dampening To Help Combat The Effects Fuel Slosh In Non-Baffled Tanks.
Features & Benefits
- Works with most 1965 to 1997 Chevrolet/GM senders
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings
Specifications
-
Range: 0 O Empty / 90 O Full
-
Cup/Hole Size (in): 2-1/16"
-
Outer Bezel Diameter: 2-15/64"
-
Includes Mounting Hardware: Part # 2230
-
Includes Bulb & Socket: Part # 3220
-
Cup/Hole Size (mm): 52.4mm
-
Series: ANTIQUE BEIGE
-
Dial Color: Beige
-
Pointer Color: Black
-
Bezel Color: Chrome
-
Lens Style: Domed, Clear
-
Movement: Electric, Air-Core
-
Gauge Type: Fuel Level
-
Lighting Type: Incandescent
-
Includes Light Covers: Red 3214 & Green 3215
-
Bezel Style: Street Rod
-
Lighting Color: White Incandescent
