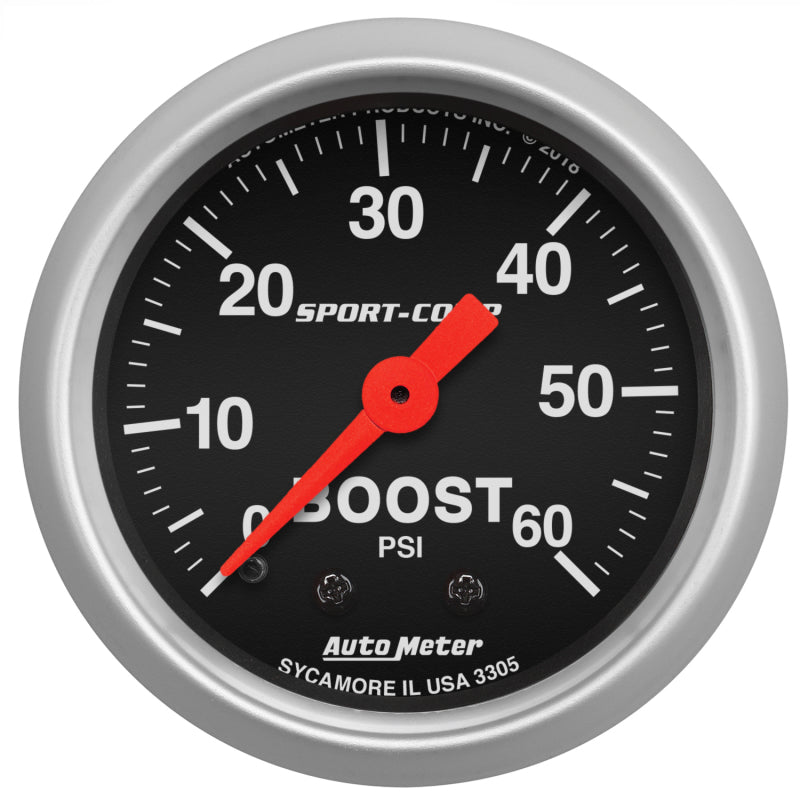

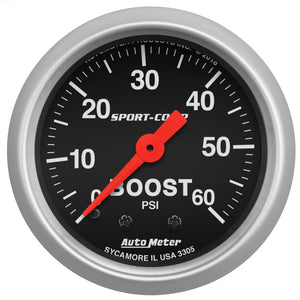

Mechanical boost gauges have become the staple in boost pressure monitoring for all types of engines,gasoline,diesel,or otherwise. Ultra-precise bourdon tube meter movement ensures accuracy and durability not seen anywhere else in the industry. A simple 1/8 NPT pressure connection requires no electrical hookup for operation. Includes 1/8 NPT fittings and nylon line kit.
Specifications
-
Range: 0-60 PSI
-
Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing
-
Includes Tubing: 10 ft. nylon tubing
-
Cup/Hole Size (in): 2-1/16"
-
Outer Bezel Diameter: 2-1/4"
-
Includes Mounting Hardware: Part # 2230
-
Includes Bulb & Socket: Part # 3220
-
Cup/Hole Size (mm): 52.4mm
-
Dial Color: Black
-
Bezel Color: Brushed Aluminum
-
Lens Style: Flat, Clear
-
Pointer Color: Fluorescent Red
-
Lighting Type: Incandescent
-
Includes Light Covers: Red 3214 & Green 3215
-
Series: SPORT-COMP
-
Bezel Style: Super Bezel
-
Lighting Color: White Incandescent
