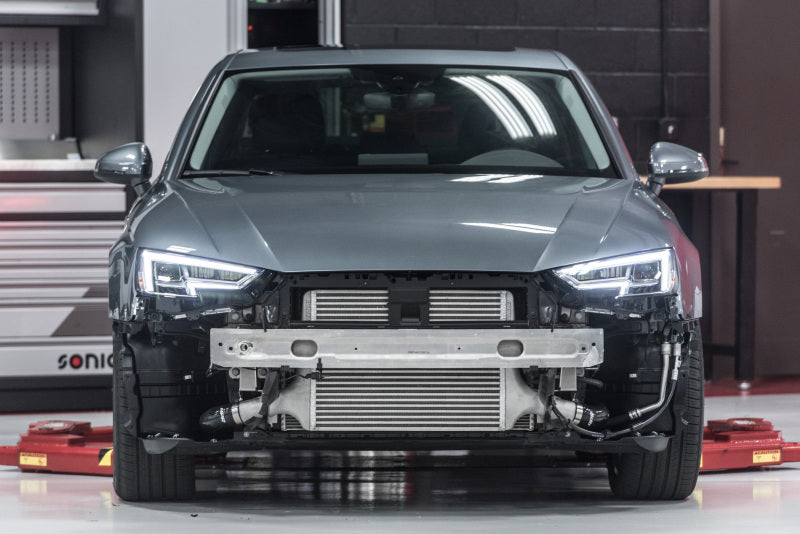

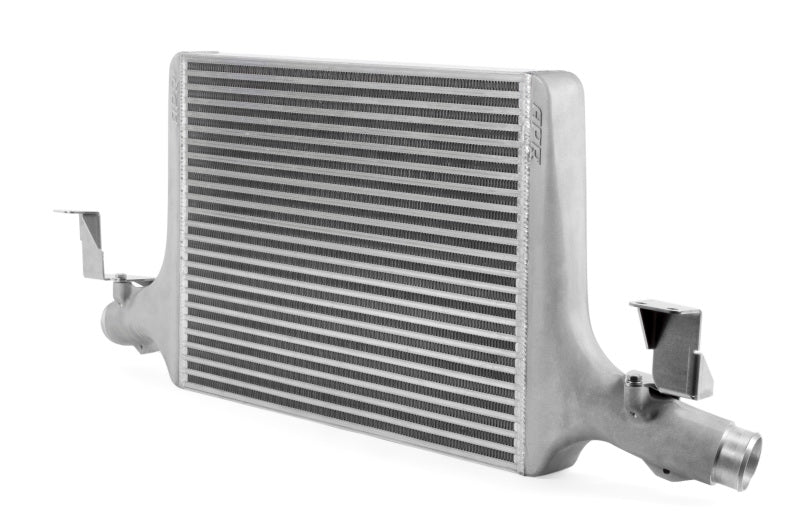

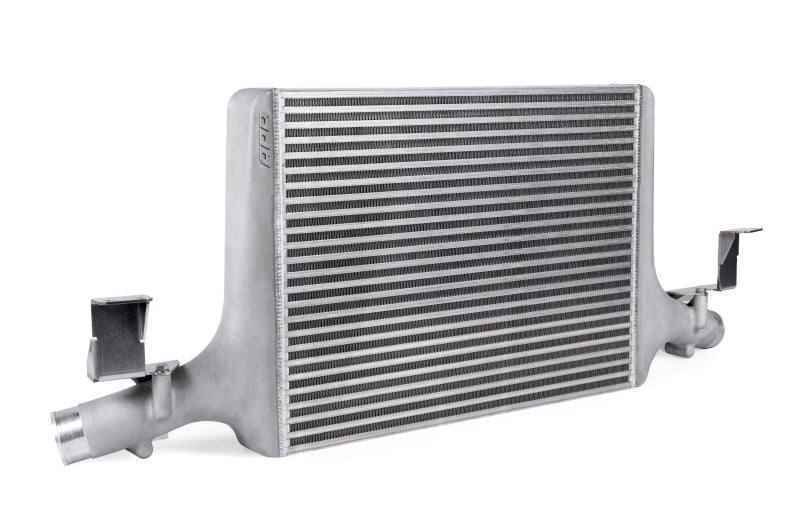

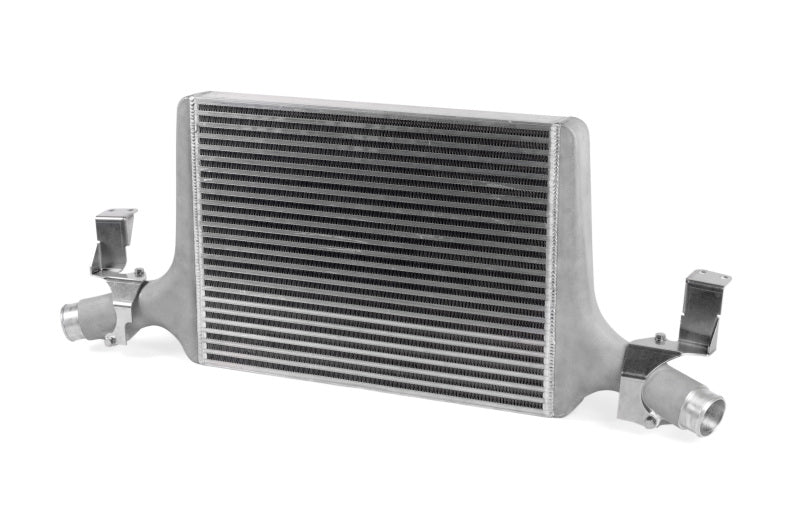

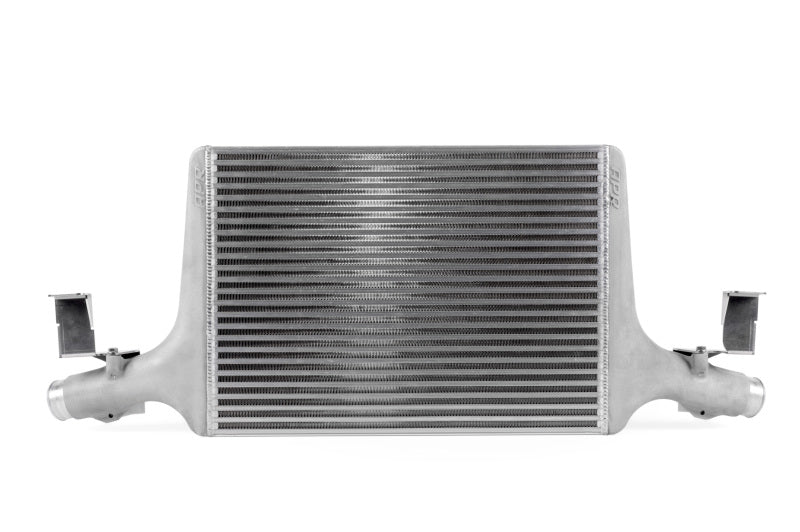

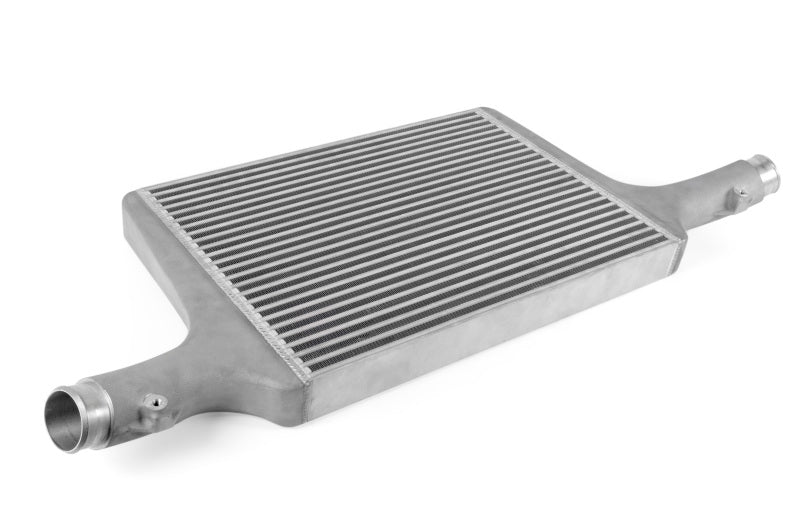

APR 18-20 Audi A5 Sportback B9 2.0T Intercooler Kit - IC100022

The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.

• Dramatically lowers intake air temp (IAT)
• Increases HP while minimizing power-robbing heat soak!
• Retained as high as 45 AWHP compared to the factory system!

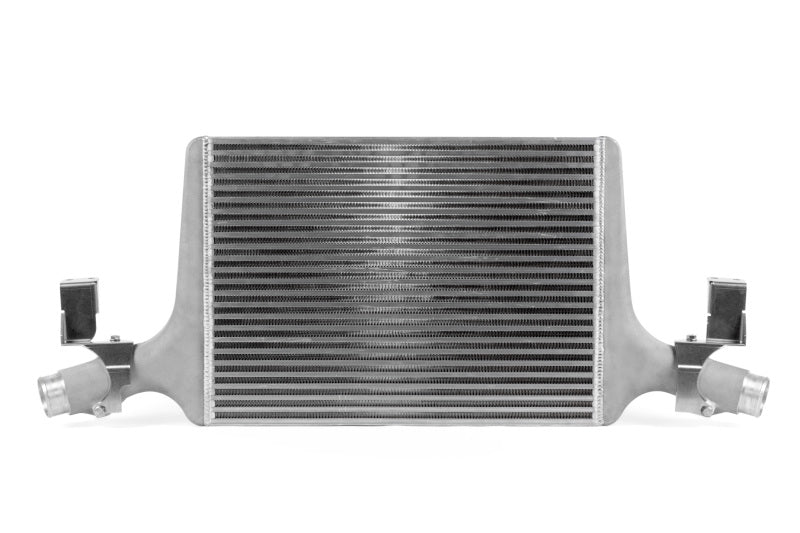

• Massive frontal surface area and core volume
• 3.125 Inch x 5.75 Inch x 28.25 Inch - 162.4 in front. & 507.62 in volume - OEM
• 2.250 Inch x 16.2 Inch x 22.00 Inch - 356.4 in front. & 801.90 in volume - APR
• Highly effective core design
• Bar-and-plate core with staggered and louvered fins.
• Rigorous testing determined core style, fin density, and size.
• Low pressure drop + highly effective cooling = high performance!

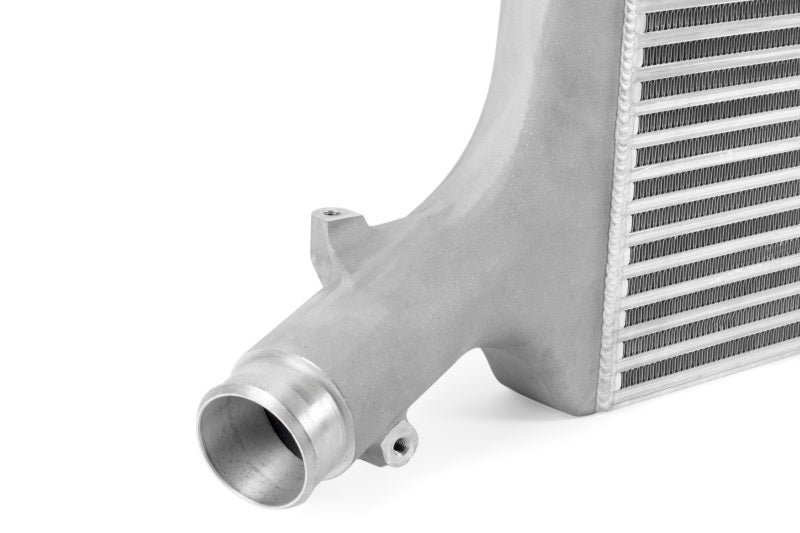

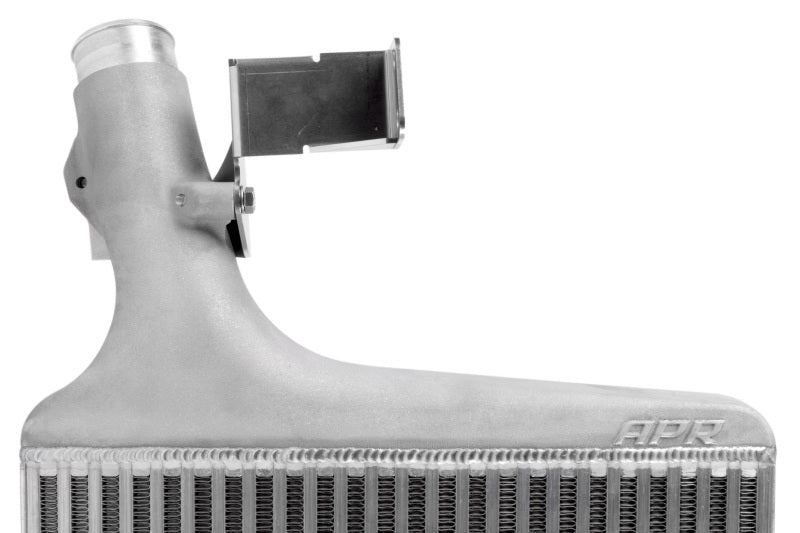

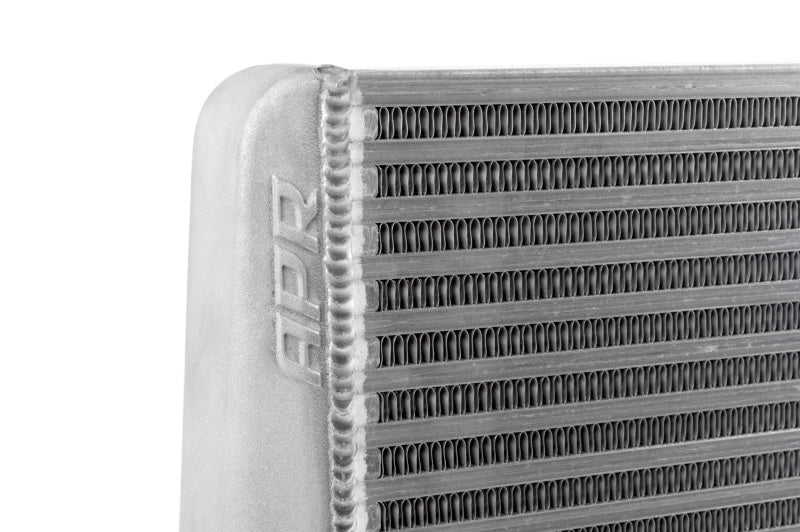

• Smooth cast end tanks
• Engineered for low turbulence/restriction and maximum flow
• Organically shaped to promote airflow across entire core.
• Pressure tested to prevent power robbing boost leaks.

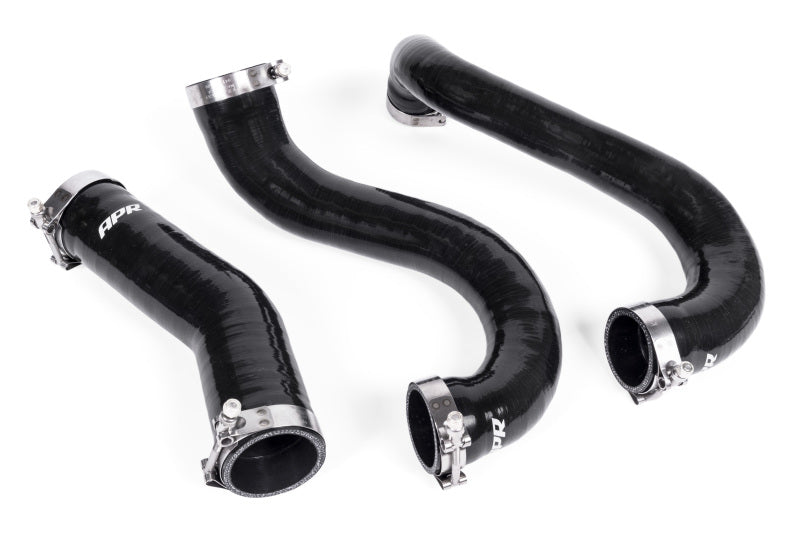

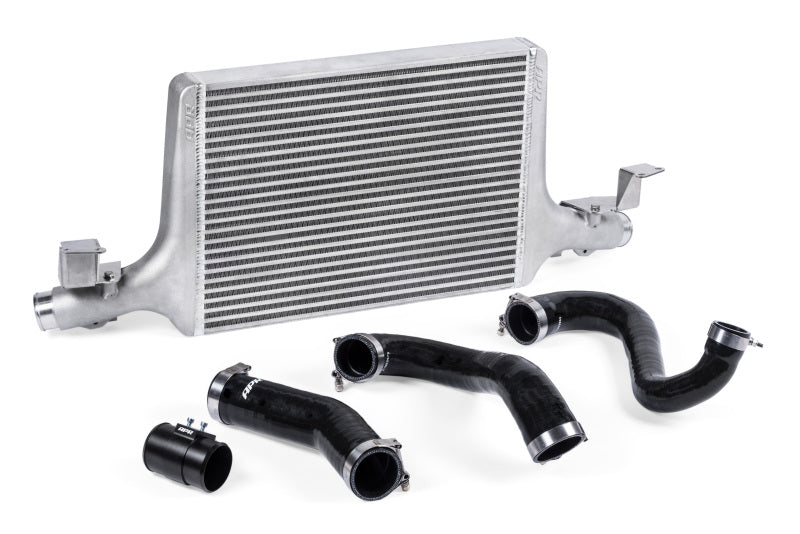

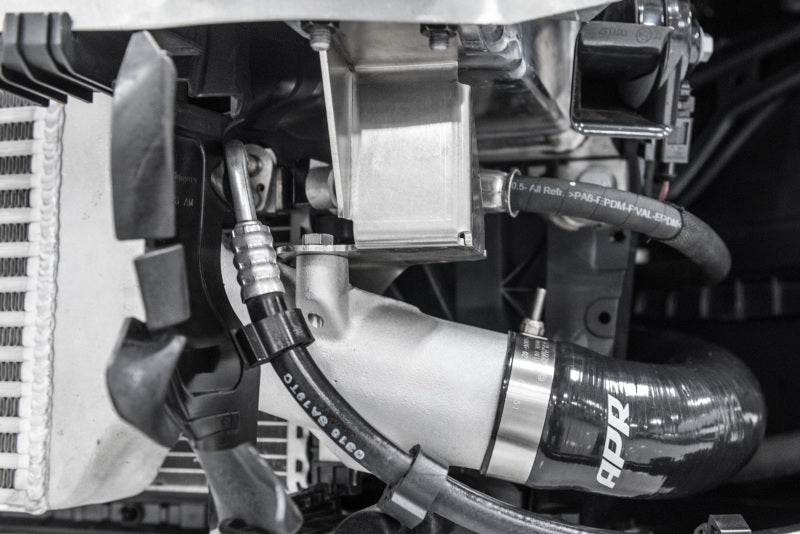

• Silicone inlet and outlet hoses
• Multi-ply silicone design with internal wire reinforcement, fluorosilicone internal protective layer and APR's EZ-Flow stepped design.
• Clampco T-bolt clamps
• Strong, stainless-steel Clampco T-Bolt clamps provide better clamping for increased protection against hose slippage and boost leaks.

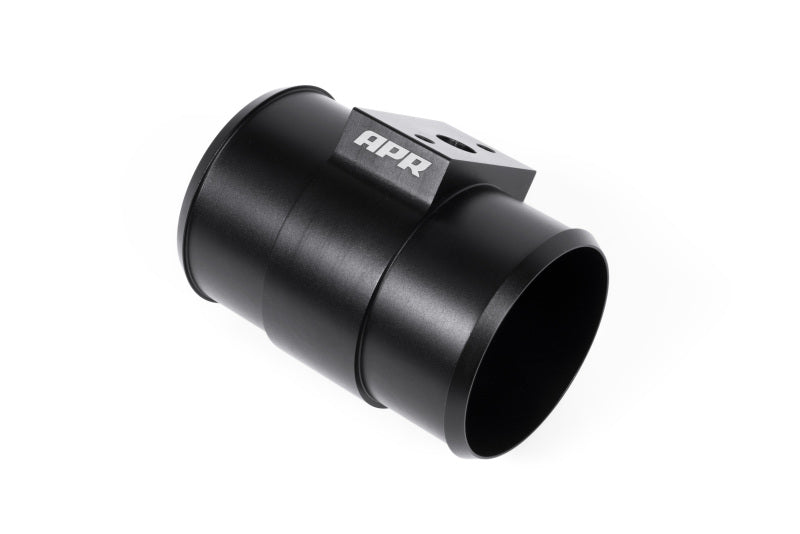

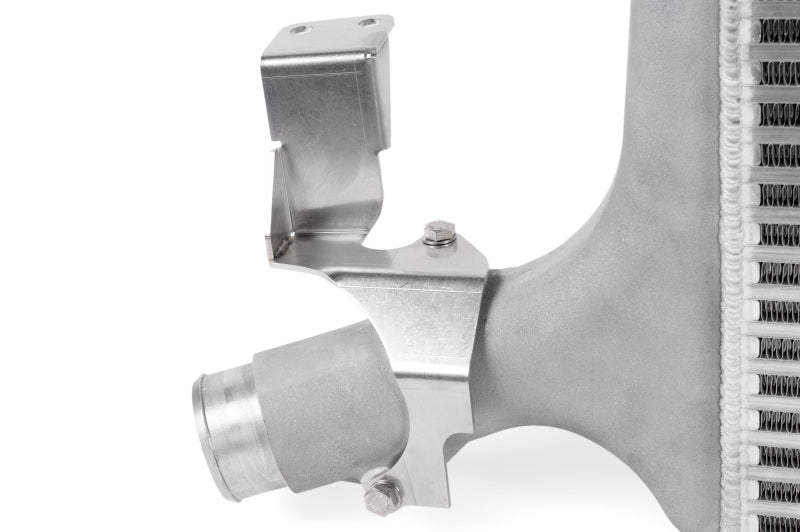

• Billet MAP housing
• Precision CNC-machined for secured sensor placement with an attractive matte-black anodized finish.

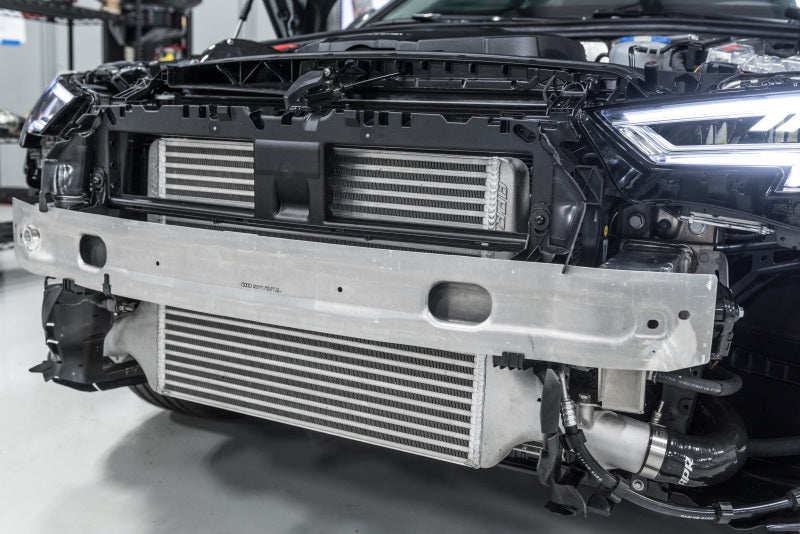

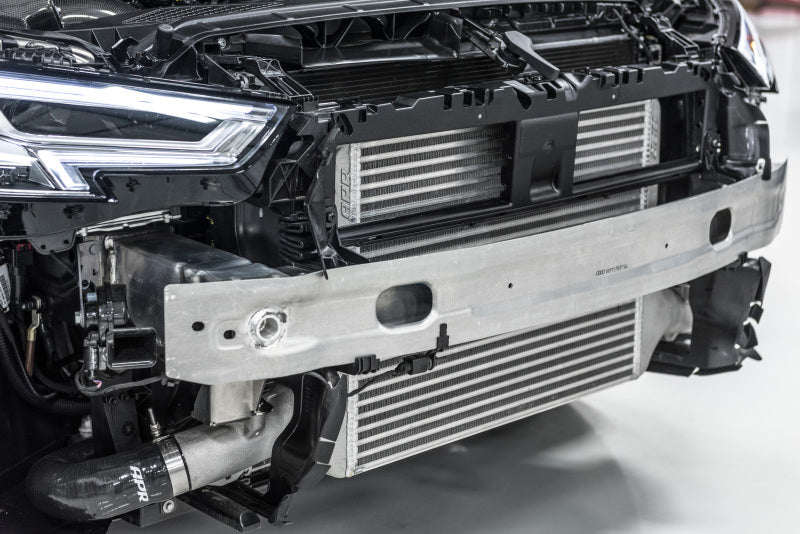

• Easy to install
• Simple bolt-on install with no trimming or drilling necessary!
• Designed by engineers with lasers
• With the best equipment and smartest engineers, it just works!

Details:

• Color: Silver / Natural
• Cooler Type: Air to Air
• Core Frontal Area: 357.50 Square Inches
• Core Height: 16.25 Inch
• Core Type: Bar and Plate
• Core Volume: 804.38 Cubic Inches
• Core Width: 2.25, 22 Inch
• Direct Fit: Yes
• Emission Code: 7
• End Tank Construction: Cast
• End Tank Material: 356-F Aluminum
• Hose Clamp Type: T-Bolt
• Hose Type: Silicon
• Product Type: Intercooler Systems
• Version: B9 2.0T (A4/A5)
• Welding Type: TIG

Fitment Notes: Please note: Your factory ignition coil rubber boot must be swapped over to the APR ignition coil.
