Variant: Street Kit w/ 355mm rotors / with Project Mu H16-03 pads / Anodized

Benefit from racing supremacy with the Alcon/Pro System Big Brake Kit Front for the C5/C6 Corvette! Borne from decades experience, this kit is a fusion of performance and precision. Crafted by Alcon and Pro System Brakes it is cutting-edge braking technology. Tailored for aftermarket wheels or OEM wheels, envision conquering corners with this.

Street kit uses 355x32mm rotors (16.2lbs) and 6 Piston calipers. (7.3lbs)
Race kit comes with 380mm x 34mm rotors (22.5lbs) and 6 piston ENP calipers (7.3lbs)

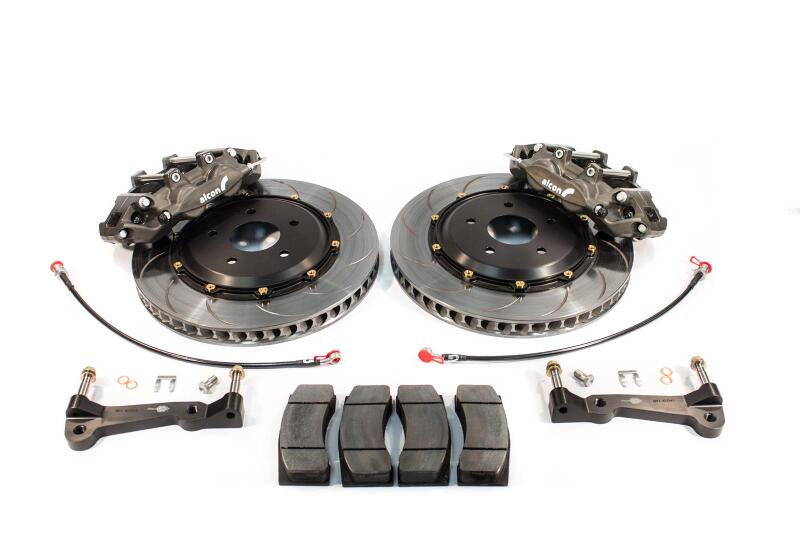

Designed to fit under Z06 or Aftermarket 18" wheels. Includes:

• Calipers Brake Pads
• SS Brake Lines
• Mounting Brackets Floating rotors
• All necessary hardware.

The street kit comes with your choice of Anodized or Nickel Plated Calipers and fine-tune your experience with Hawk or PMu pads. The race kit uses PMu pads and ENP plated calipers.

This isn't just a brake kit; it's an adrenaline-infused symphony of power, control, and automotive excellence, propelling you to the win.

Alcon Pro System C5/C6 Corvette Front Big Brake kit

Alcon has taken what it has learned during more than two decades in motorsport to develop brake kits and solutions for selected street machines. These upgrades allow high-performance vehicles to take on both track and road challenges. We know the sports car world and we can put together the complete kit for your racer. Brackets, hats, rotors, calipers, brake lines, pads, a braking solution in a box, thanks to our expertise and experience.

Features

• All rotors are machined at our facility in Mooresville, North Carolina from specially formulated grey cast iron providing the best in thermal stability, friction coefficient and heat transfer characteristics.
• Dyno-bedded rotors and pads
• Precision machined and anodized aluminum hats and brackets
• Fully floating rotor attachment with anti-rattle clips
• Utilizes stock park brake • All kits are supplied with high performance brake pads.
• Added value, most of our competitor's kits have a similar cost but brake pads, anti-rattle clips and bedding are not included. However, these are all included.

Specifications and part numbers sheet

Alcon calipers:

• Forged car8949 Alcon aluminum calipers weighing only 7.3# each (No wiper seals)
• Aerospace grade aluminum alloy provides high strength and light weight
• 6 piston
• High temperature seals
• Piston diameter optimized for use with stock master cylinder, booster and ABS
• Fully compatible with aftermarket ABS systems
• Staggered piston diameters reduce pad taper
• Bolted pad retainer to increase stiffness
• Quick change pads without removing calipers
• Stainless steel pistons

Rotors

• Floating 2-piece design allows thermal expansion of the rotor while minimizing deformation and ensuring the rotor is self-centered with the pads
• 22.5#/16.2# each
• Superior braking and cooling efficiency
• Features directional ventilation vanes to create suction, turbulence, and guides cool air through the rotor for improved heat dissipation and increased resistance to cracking

Curved Directional Ventilation Vanes

Features 48 directional ventilation vanes to create suction and turbulence, and guide cool air through the rotor to achieve better heat dissipation and increased resistance to cracking under harsh track conditions. Each rotor is left or right side specific, and the ventilation vanes are optimized to spin in a particular direction to pump the maximum amount of cool air through the rotor. This design allows the rotor to run up to 30% cooler than O.E. rotors and increases cooling efficiency by up to 30% over standard 1-piece units. Brake fade and judder are minimized during extended sessions. This means the brake system can withstand heavier track usage and provide consistent braking performance lap after lap.

Slotted Friction Face

Slotted rotor face pattern improves brake consistency by constantly cleaning the contact surface and dissipate heat generated, and gases released when the pads come into contact with the rotors. Slotted rotors have a superior advantage over blank rotors in wet or raining conditions by preventing water films to form between the brake pad and rotor surface.

Aluminum Hats

• CNC machined from lightweight 6061-T6 aerospace grade aluminum
• Unsprung weight reduction
• High strength and durability
• Black/hard anodized to increase resistance to wear and corrosion

Authorized Alcon Brakes dealer. Genuine OE-quality parts shipped from Raptor Racing.
