Aeromotive VaporWorx Ford Mustang GT Returnless Pulse Width Modulation Fuel Module Controller Kit - 66131

Aeromotive Part Number: 66131
Legacy VaporWorx Part Number: BWGT

The Ford Mustang GT fuel module control system has everything needed to provide a stand alone, manifold referenced, OE-type returnless fuel system.

When used with the low-cost Ford/Motorcraft PFS1215 fuel module the system will provide a 42-60psi base pressure with a 1:1 manifold referenced fuel pressure change for up to 25psi of boost. It will act just like a mechanical fuel pressure regulator would with the ECM tuned in the same manner. The fuel injector does not know if the fuel supplied is pumped by a return or returnless system. Every OEM today, even on the highest horsepower models, use returnless PWM control systems.

The key to making this system simple to use is the stand-alone manifold pressure sensor that tells the controller how to adjust the fuel pressure.

Just like a manifold referenced mechanical fuel pressure regulator, simply connect the hose from the pressure sensor mount to the intake manifold, set the fuel pressure according to the need, and you're done. Base fuel pressures at idle are typically between 42-60psi, but the VaporWorx controller has much greater range if needed.

The controller can also be used with any engine that needs to have a separate MAP sensor for manifold referenced fuel pressure. The kit is tailored to fit the PFS1215 fuel module by using the OEM Delphi/Aptive connector and terminals.
The fuel requirements for all versions of the Ford Controls Pack for the Naturally Aspirated Coyote crate engine can be met with this BoostWorx controller. Can also work up to 25psi forced induction.

NOTE: The Ford Controls Pack for Coyote engines states that a return-type regulator is to be used. This is for two reasons: 1) The fuel pressure must be manifold referenced, and 2) The Ford Controls Pack does not come with a Fuel Pump Driver Module like the modern cars do. The controller does have manifold referenced fuel pressure capability, hence the system will be providing fuel very much the same way as the OEM car. Ford just does not know about VaporWorx since we are the only company to offer a stand-alone electronic returnless fuel system. In other words, no worries!

This kit can also be used in constant pressure mode. Just remove the vacuum line or MAP sensor wiring, and the controller will provide a constant pressure.

Suggested fuel modules:

• Any Gen1-3 naturally aspirated or supercharged Coyote equipped fuel module. Motorcraft PFS1215 suggested. The PFS1215 fuel module can also be used for other applications besides Coyote (Hotrod, LS, SBF, etc.)
• NOTE: It is highly recommended to NOT use an inline fuel filter with a modern integrated fuel module. With the Gen3 GT500 as the exception, a final filter is built into the fuel module. Many aftermarket inline filters have check valves. During key-off engine hot days, heat soak from the engine/exhaust will make the fuel pressure increase, often to over 200psi. Once the key-off pressure goes over about 100psi the injectors can no longer function, hence the car will not start. The check valve does not allow the excessive pressure to bleed off through the safety overpressure valve that is built into the fuel module.

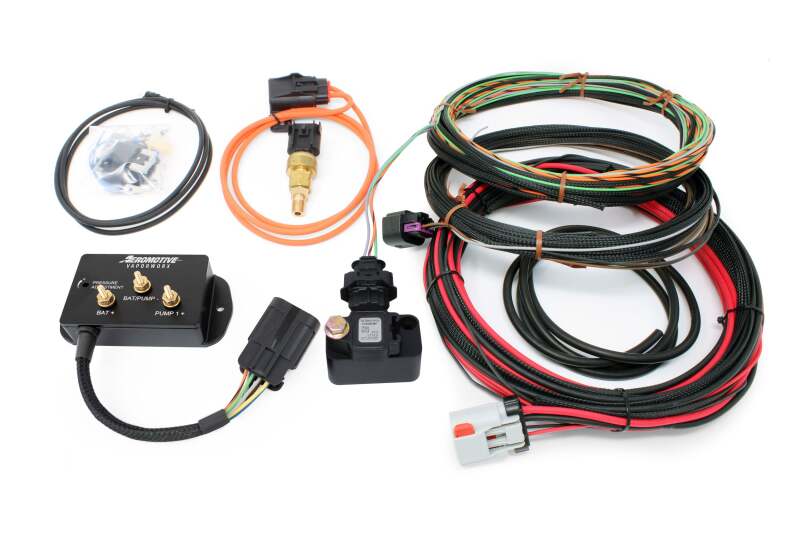

The GT Controller includes these standard features:

• Everything needed electrically to drive the fuel pump module. No relays, external regulators, or return lines needed.
• Unmatched low fuel level capability when combined with the OEM style fuel module.
• A minimum 50% reduction in power to the fuel pump during idle and cruise vs traditional systems.
• 40A minimum continuous power rating in a compact controller package. Total size 4" L x 2.1" W x 1-5/8" H.
• Over-temperature shutdown with automatic reset.
• Short circuit protection that will operate indefinitely without damage.
• OEM Delphi/Aptiv connections for terminals, seals, and connector bodies.
• All cross-linked polyethylene wiring.
• UL94 rated components used throughout.
• Integrates into the OE ECM to allow all safety systems to remain functional.
• 10-22v operating capacity. Can be used with voltage boosters. Lower than 10v applied to the turn on circuit will cause controller shutdown to protect from an AFR lean condition.

All kits now feature the billet aluminum VaporWorx MAP sensor bracket and 3bar pressure sensor!
