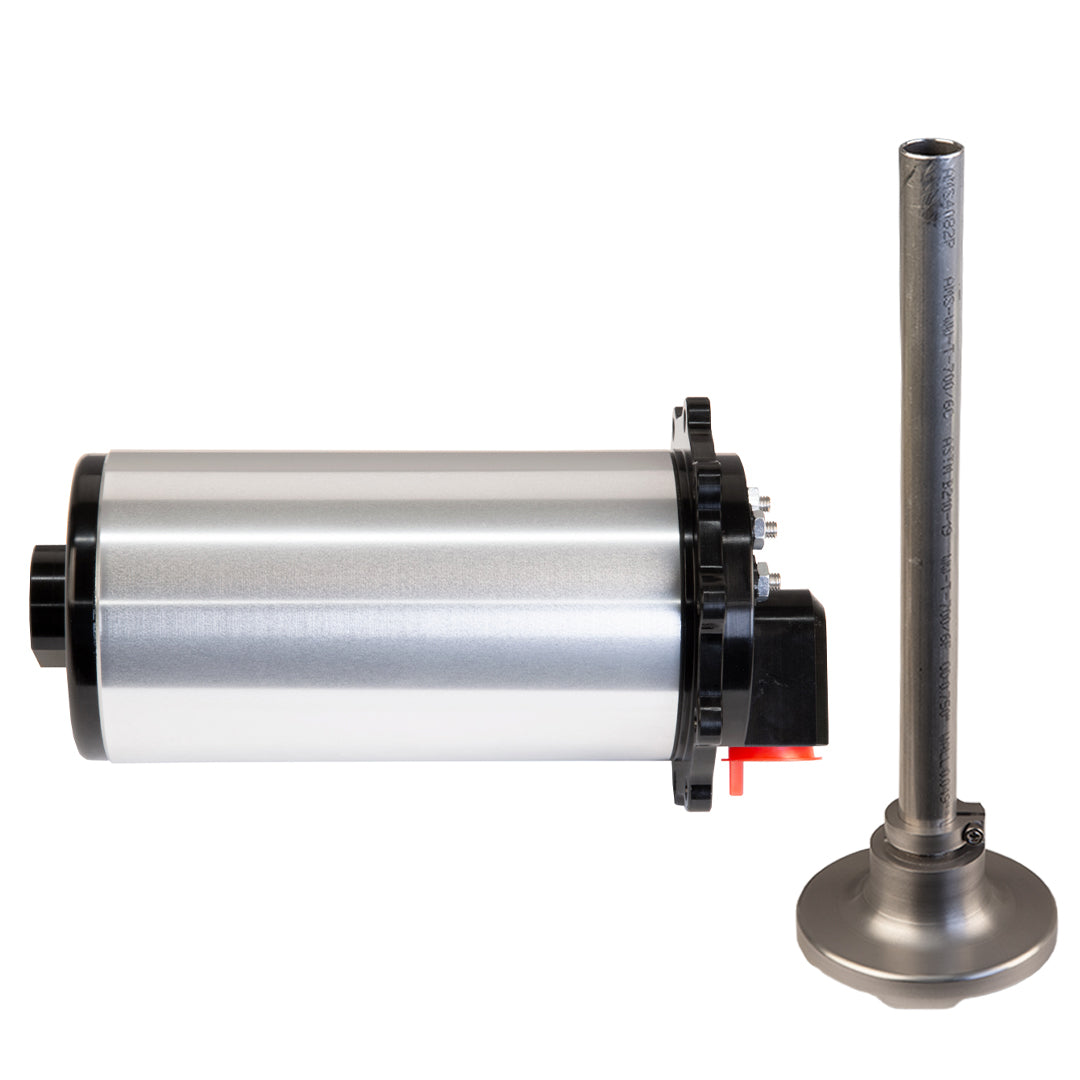

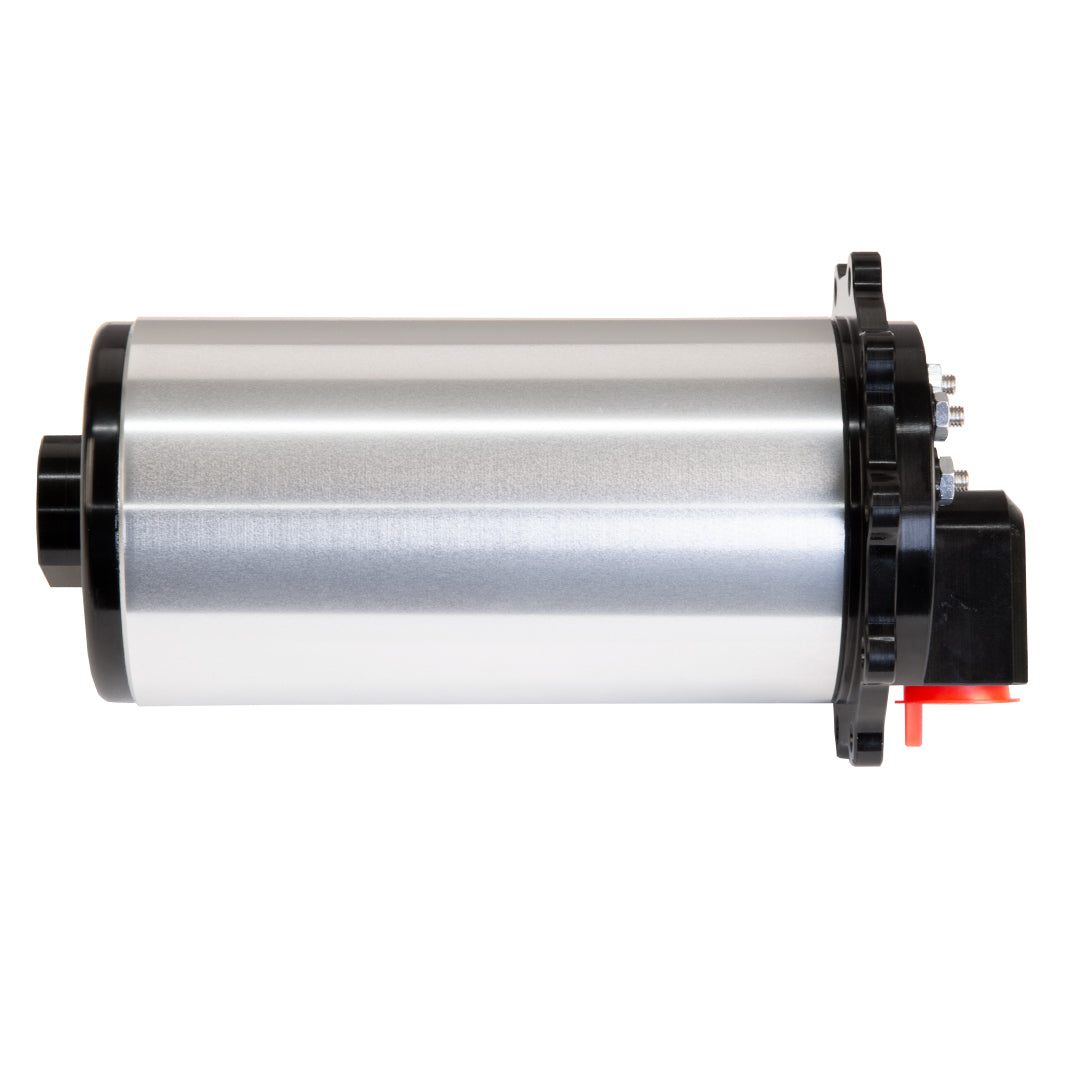

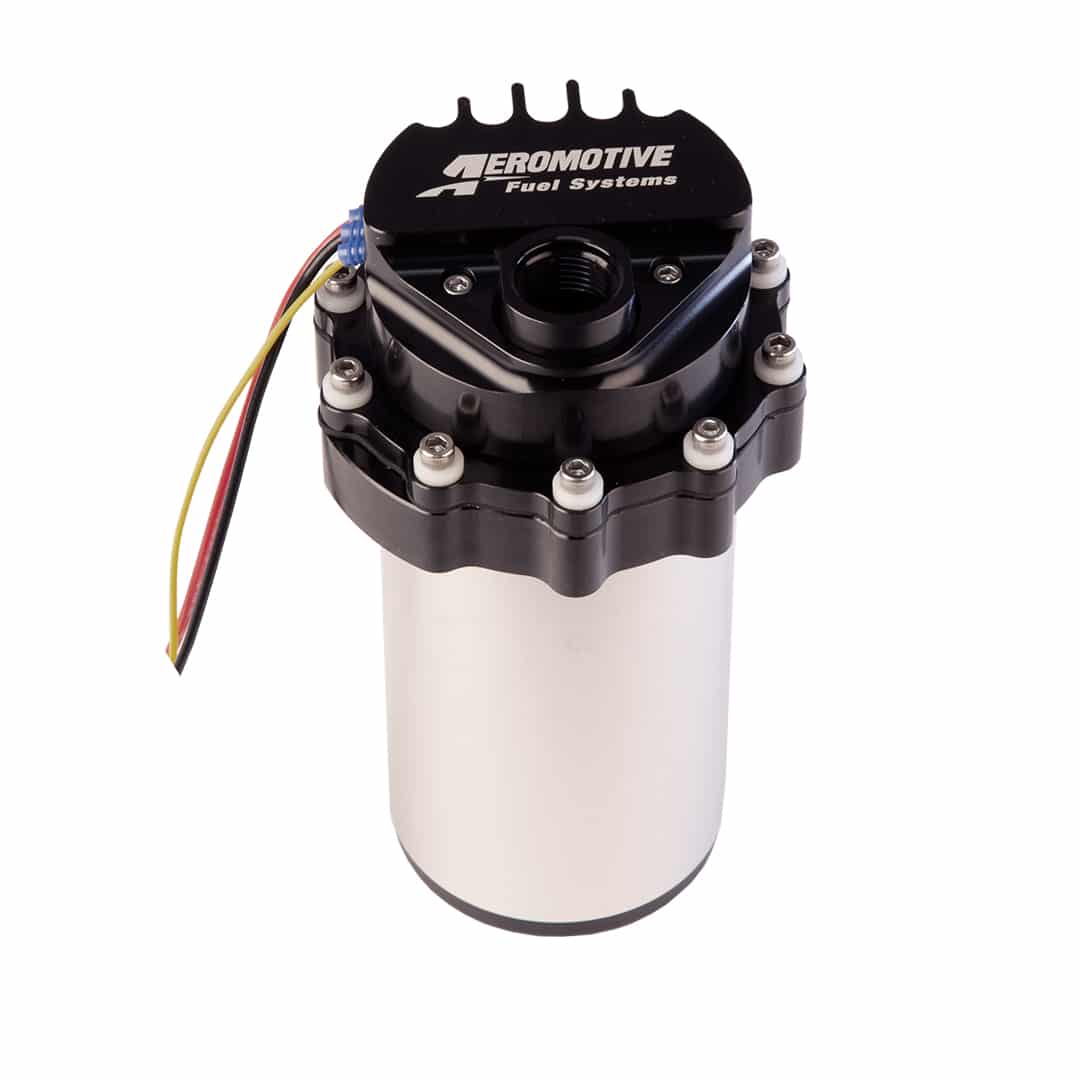

Aeromotive Fuel Pump Module TVS 90-Deg Outlet Brushless A1000 - 18065

SKU: SKU: AER18065

A1000 Performance Plus Advanced Technology

  • The A1000 performance you expect and more:
    • Fuel Injected Engines: GAS
      up to 1300 FWHP – naturally aspirated
      up to 1000 FWHP – forced air induction
    • Carbureted Engines: GAS
      up to 1500 FWHP – naturally aspirated
      up to 1200 FWHP – forced air induction
    • Fuel Injected Engines: E85
      up to 910 FWHP – naturally aspirated
      up to 700 FWHP – forced air induction
    • Carbureted Engines: E85
      up to 1050 FWHP – naturally aspirated
      up to 840 FWHP – forced air induction
  • Lighter than the traditional A1000 pump.
  • Reduced current draw at higher, EFI pressures.
  • Extended service life in methanol and ethanol.
  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
  • Quieter than the traditional A1000 Stealth Pump.
  • ORB-10 outlet port.
  • Requires straight 12-VDC to 16-VDC power supply.
    • Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.

  • Not compatible with pulse modulated systems or fuel pump speed controllers.
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.


EFI rated flow of 700 lbs./hr. @ 45 psi, 13.5 volts
Carb rated flow of 900 lbs./hr. @ 9 psi, 13.5 volts
