Aeromotive Fuel Pump Module Mounting Ring - Aluminum - 68702

Aeromotive Part Number: 68702
Legacy VaporWorx Part Number: GM5AL

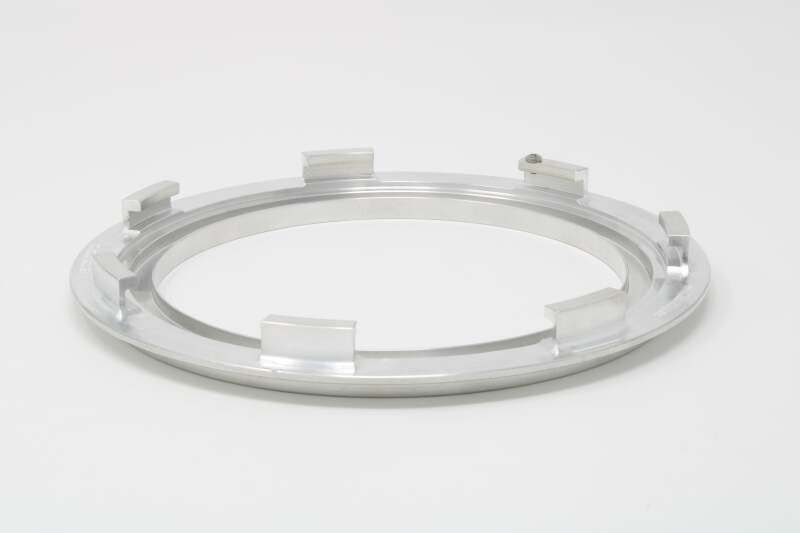

The VaporWorx Fuel pump module mounting ring will fit with modules that have a 6" major diameter (not including the alignment tab) and 1/8" thickness.

Made of 6061AL Aluminum.

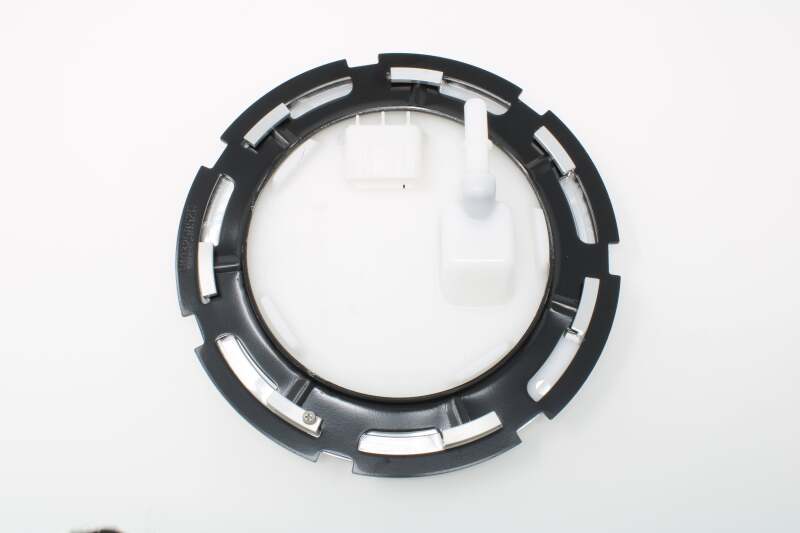

The ring can be welded from the top or bottom. A standard OEM cam locking ring can be used (not included).

Compatibility & Installation:

• The original design is from 2009 and has been in regular production since 2010. The others are a copy of this design.
• For LS3, ZL1, and CTS-V2 pump modules + many aftermarket tank interfaces.

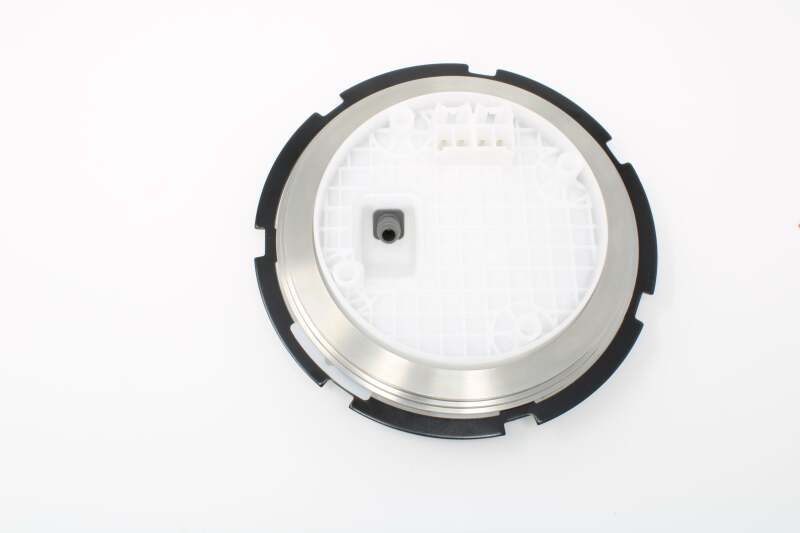

• For any OEM fuel pump with a standard 6" major hat diameter. Fits Ford, GM, Dodge, etc fuel pump modules (common USCAR design.) Even modern motorcycles like the Honda Gold Wing use this tank interface.
• Mounting hole diameter 6-3/8".
• Target depth to bottom of tank: LS3 and CTS-V2 5.5 - 7" mounting depth range. ZL1 6 - 7". Target the middle of the compression range as the rough mounting height.
• Welding required.
