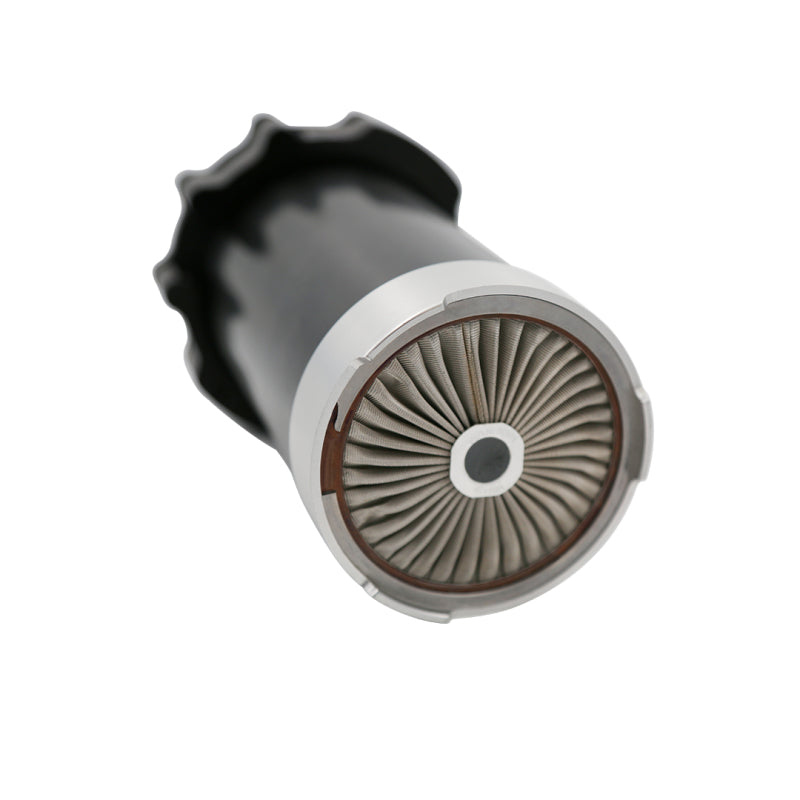

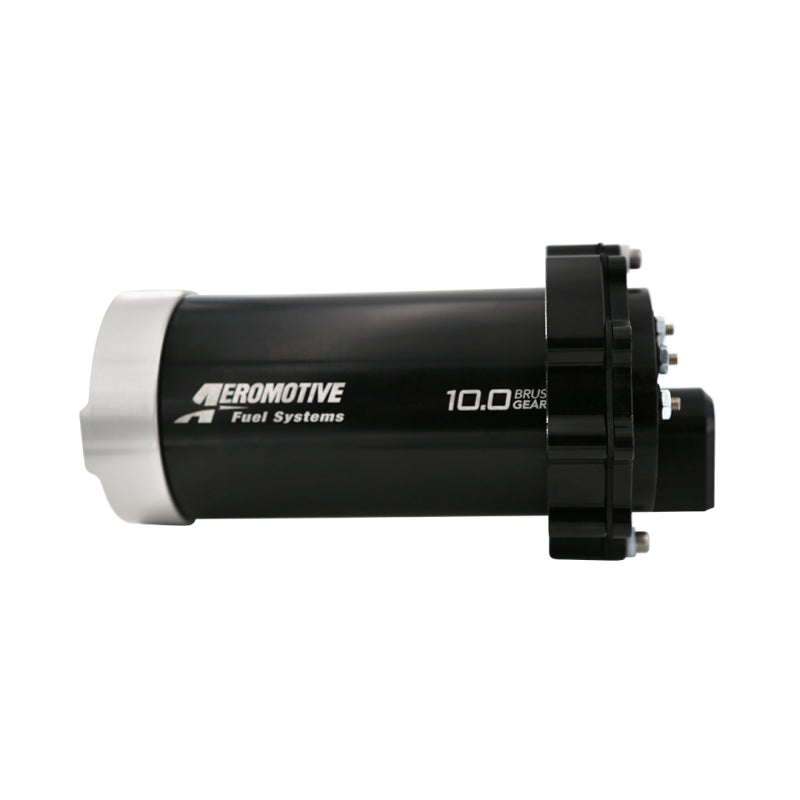

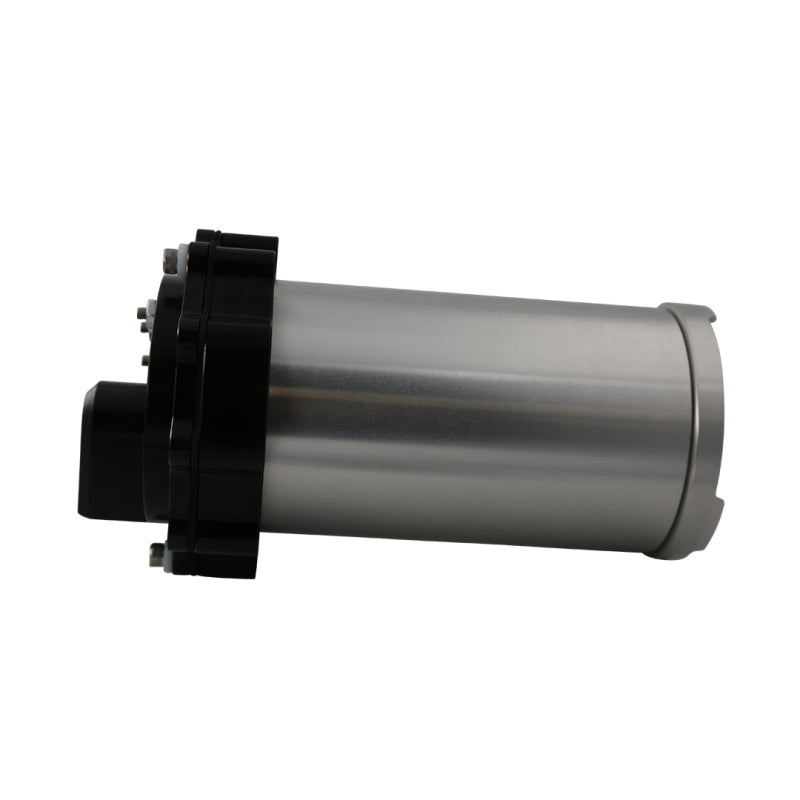

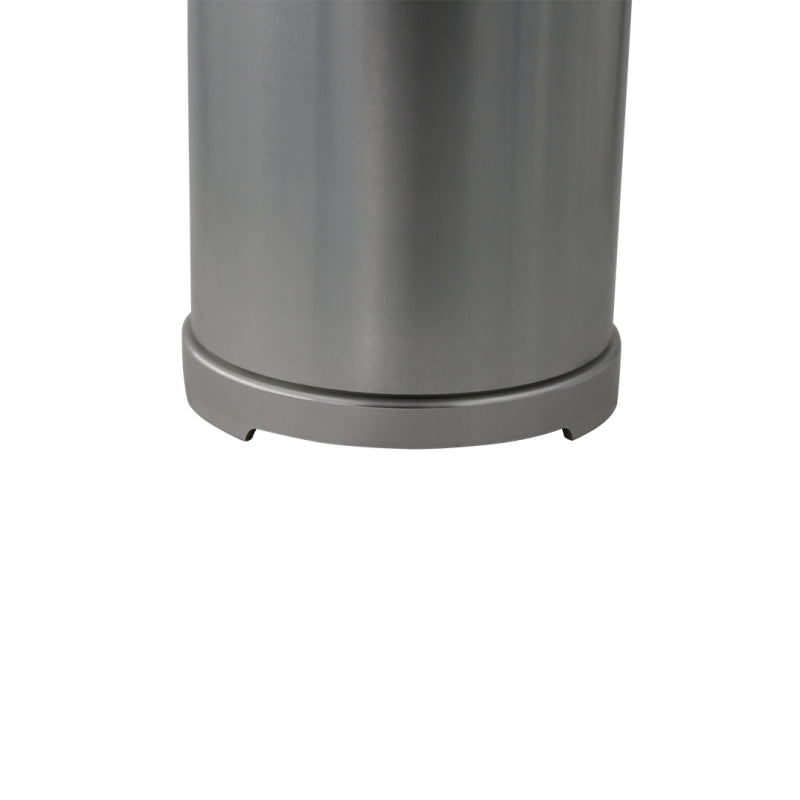

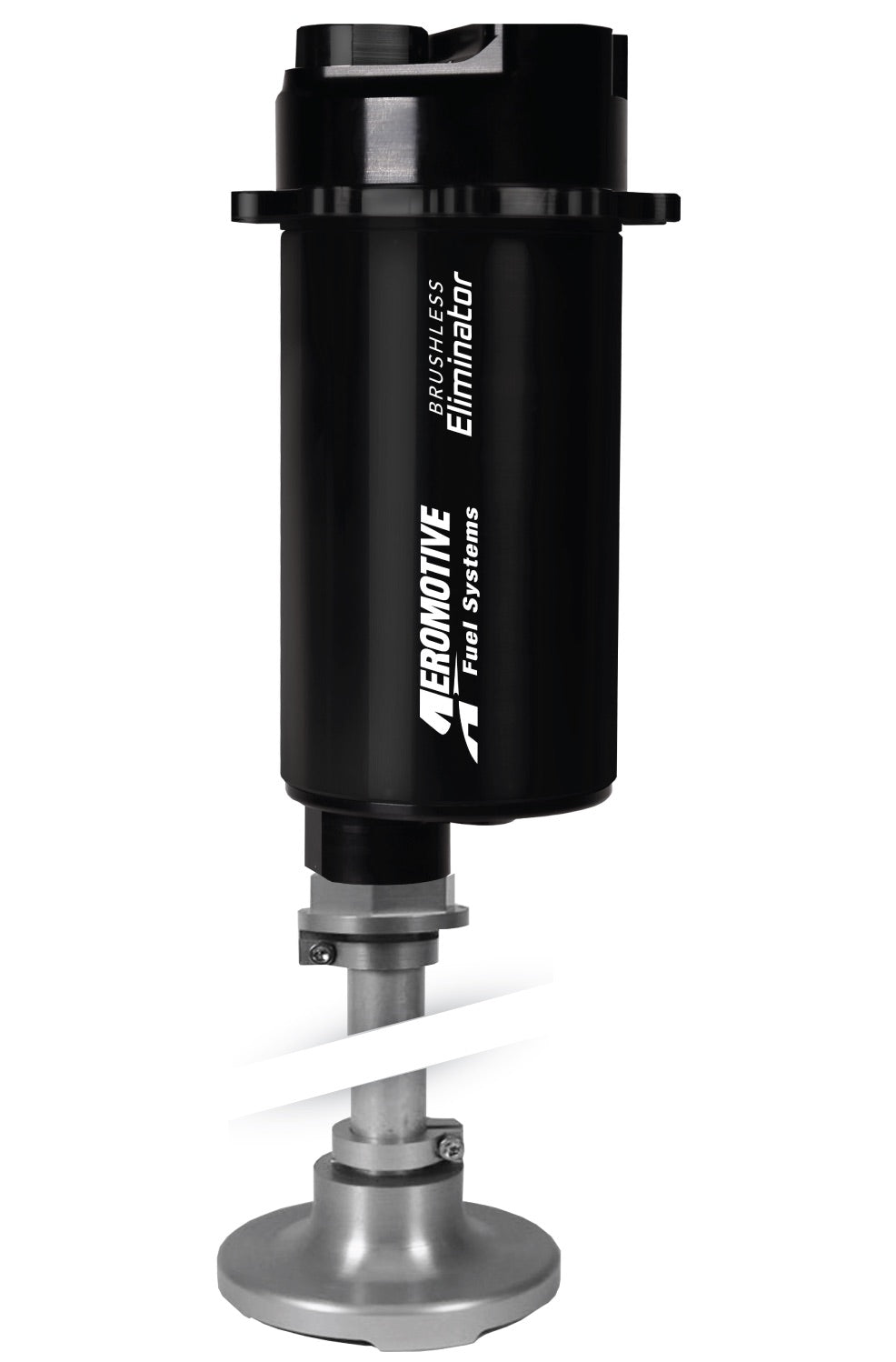

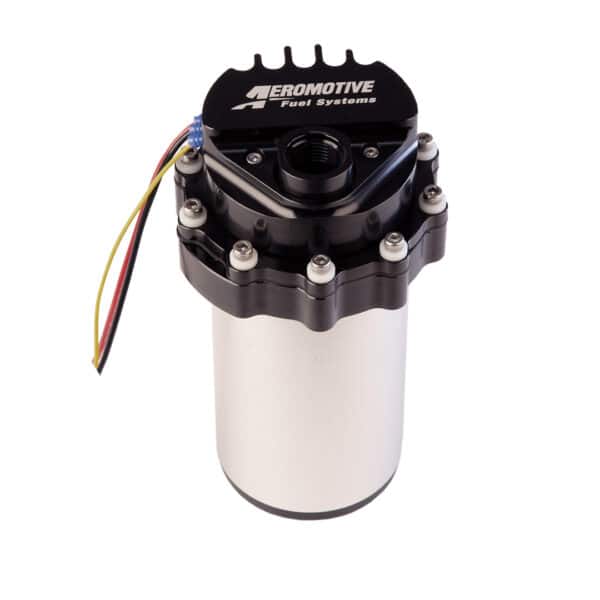

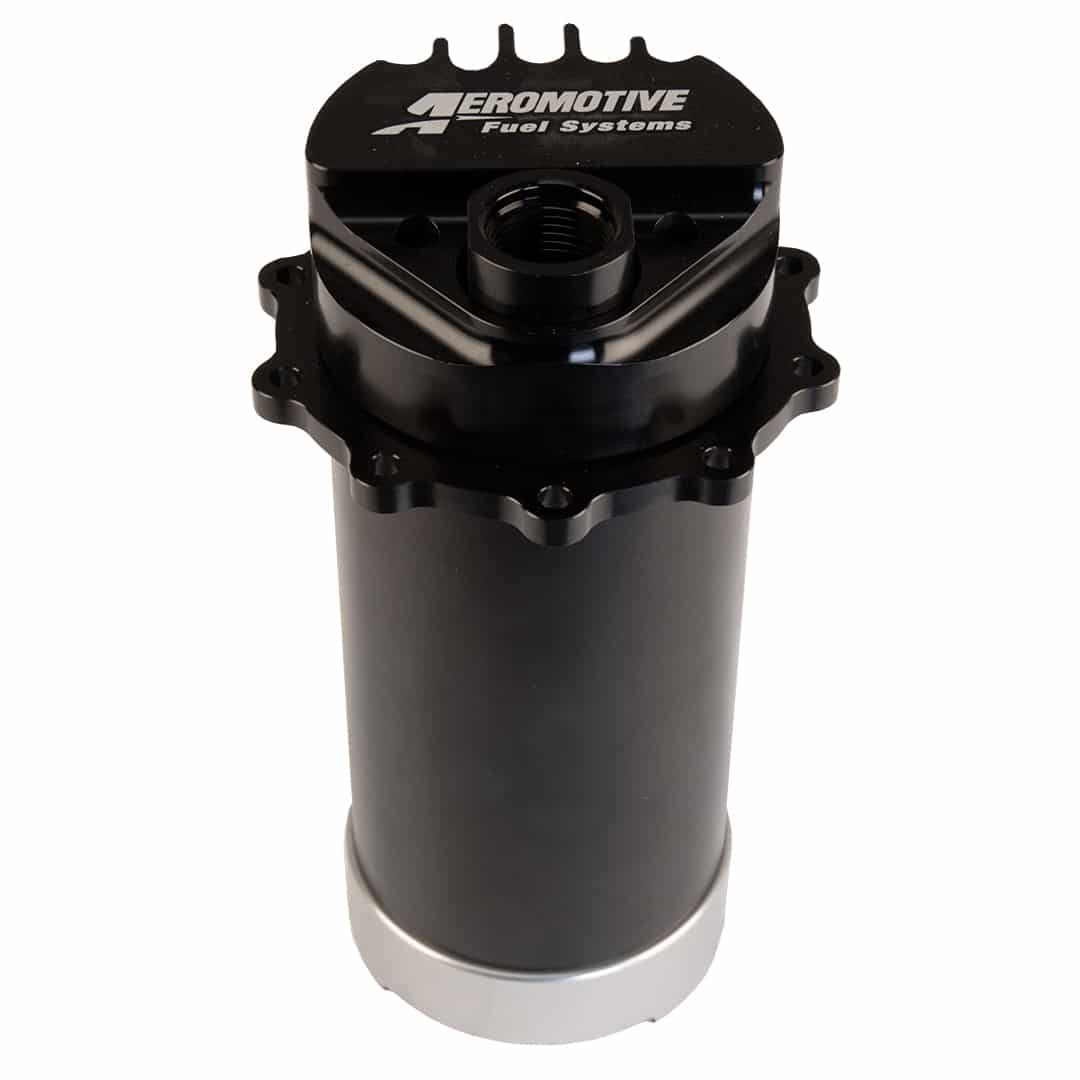

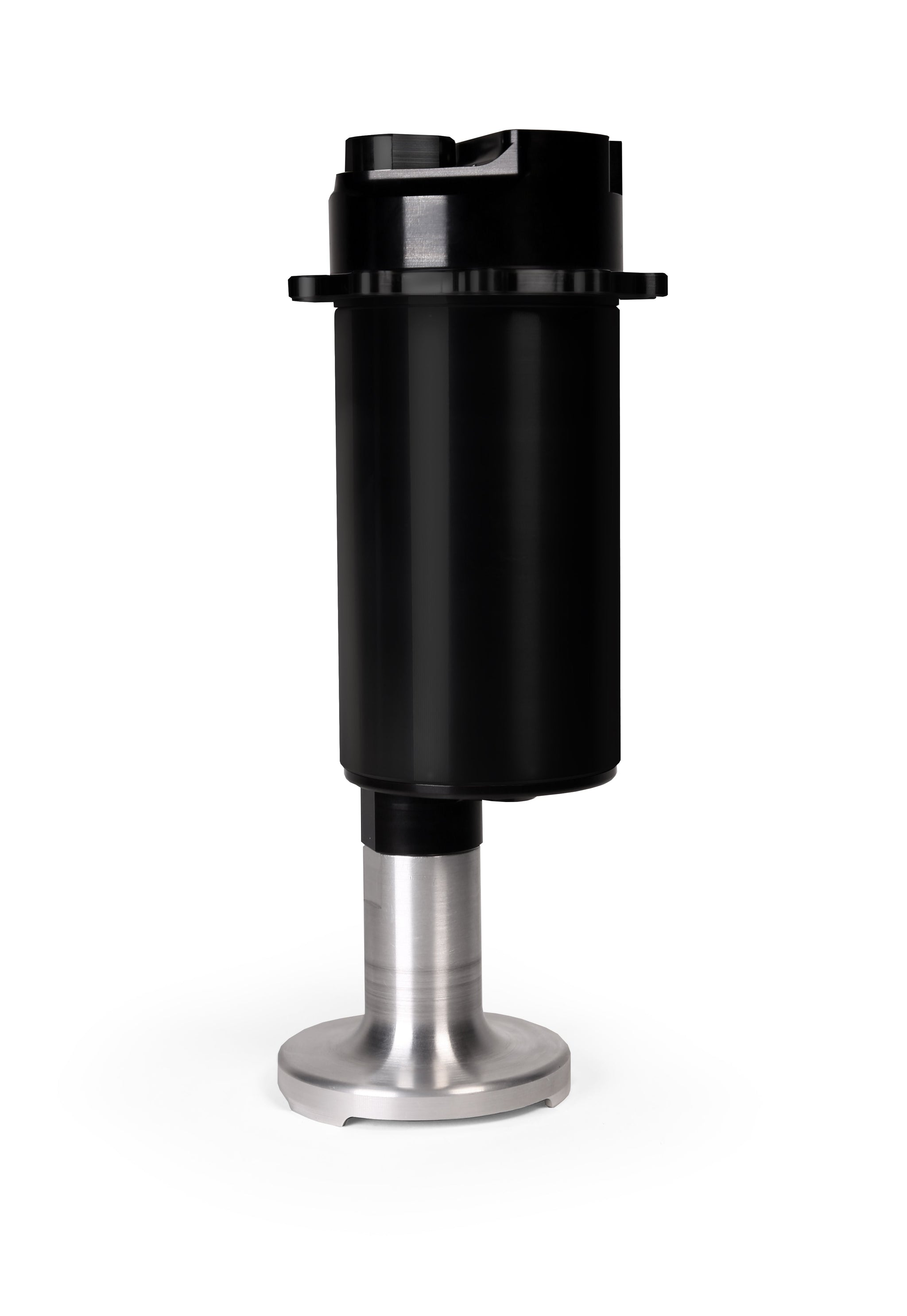

Aeromotive Brushless Eliminator In-Tank (90 Degree) Fuel Pump w/TVS Controller - 19001

Eliminator Performance Plus Advanced Technology

• The Eliminator performance you expect and more:

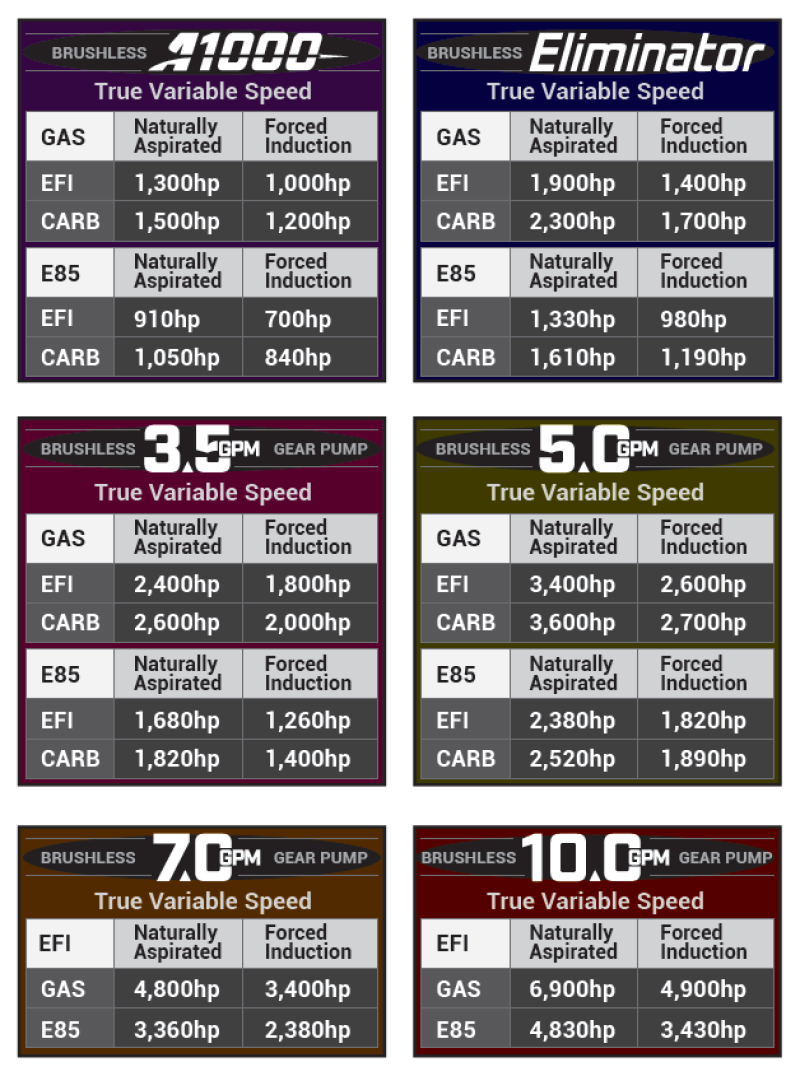

  • Fuel Injected Engines: GAS
    up to 1900 FWHP - naturally aspirated
    up to 1400 FWHP - forced air induction
  • Carbureted Engines: GAS
    up to 2300 FWHP - naturally aspirated
    up to 1700 FWHP - forced air induction
  • Fuel Injected Engines: E85
    up to 1330 FWHP – naturally aspirated
    up to 980 FWHP – forced air induction
  • Carbureted Engines: E85
    up to 1610 FWHP – naturally aspirated
    up to 1190 FWHP – forced air induction
• Lighter than the traditional Eliminator pump.

• Reduced current draw at higher, EFI pressures.

• Extended service life in methanol and ethanol.

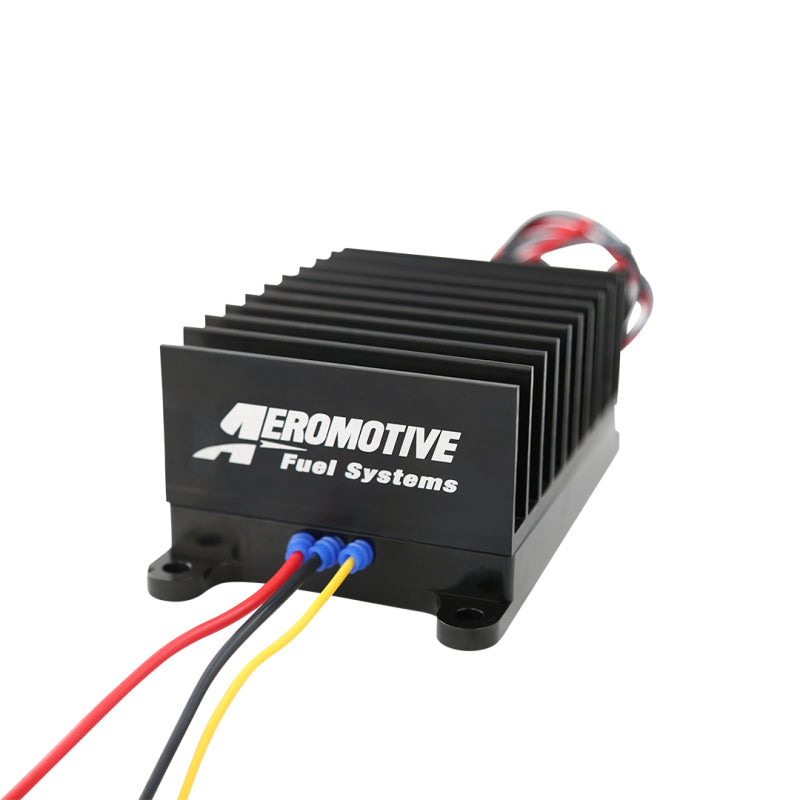

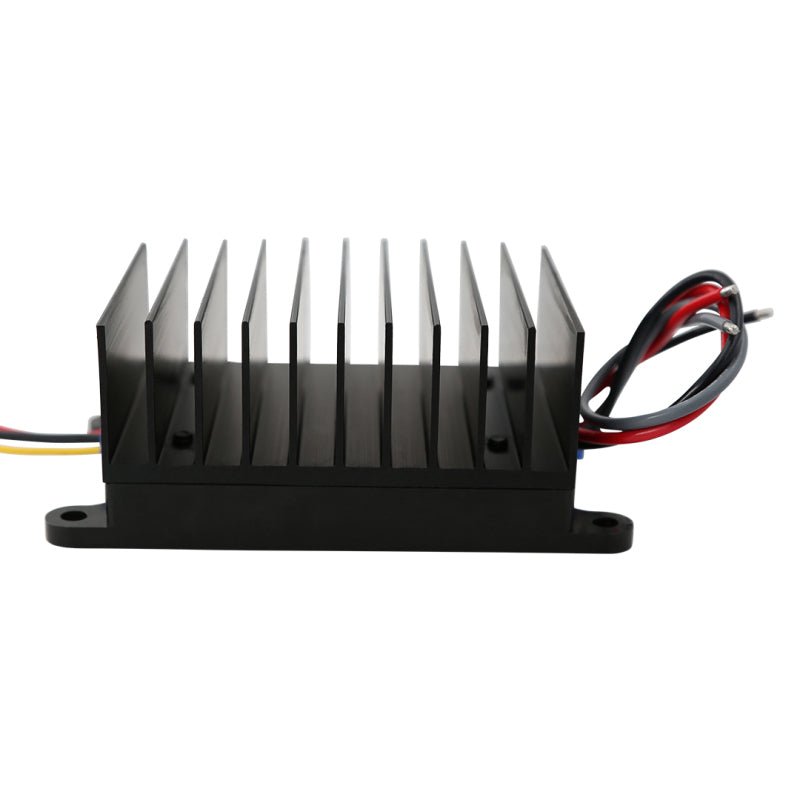

• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.

• Quieter than the traditional Eliminator pump.

• ORB-12 inlet and ORB-10 outlet ports.

• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

• Requires straight 12-VDC to 16-VDC power supply.
  • Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.

• Not compatible with pulse modulated systems or fuel pump speed controllers.

EFI Rated flow of 1,000 lbs./hr. @ 45 psi, 13.5 volts
Carb Rated Flow of 1,300 lbs./hr. @ 9 psi, 13.5 volts
