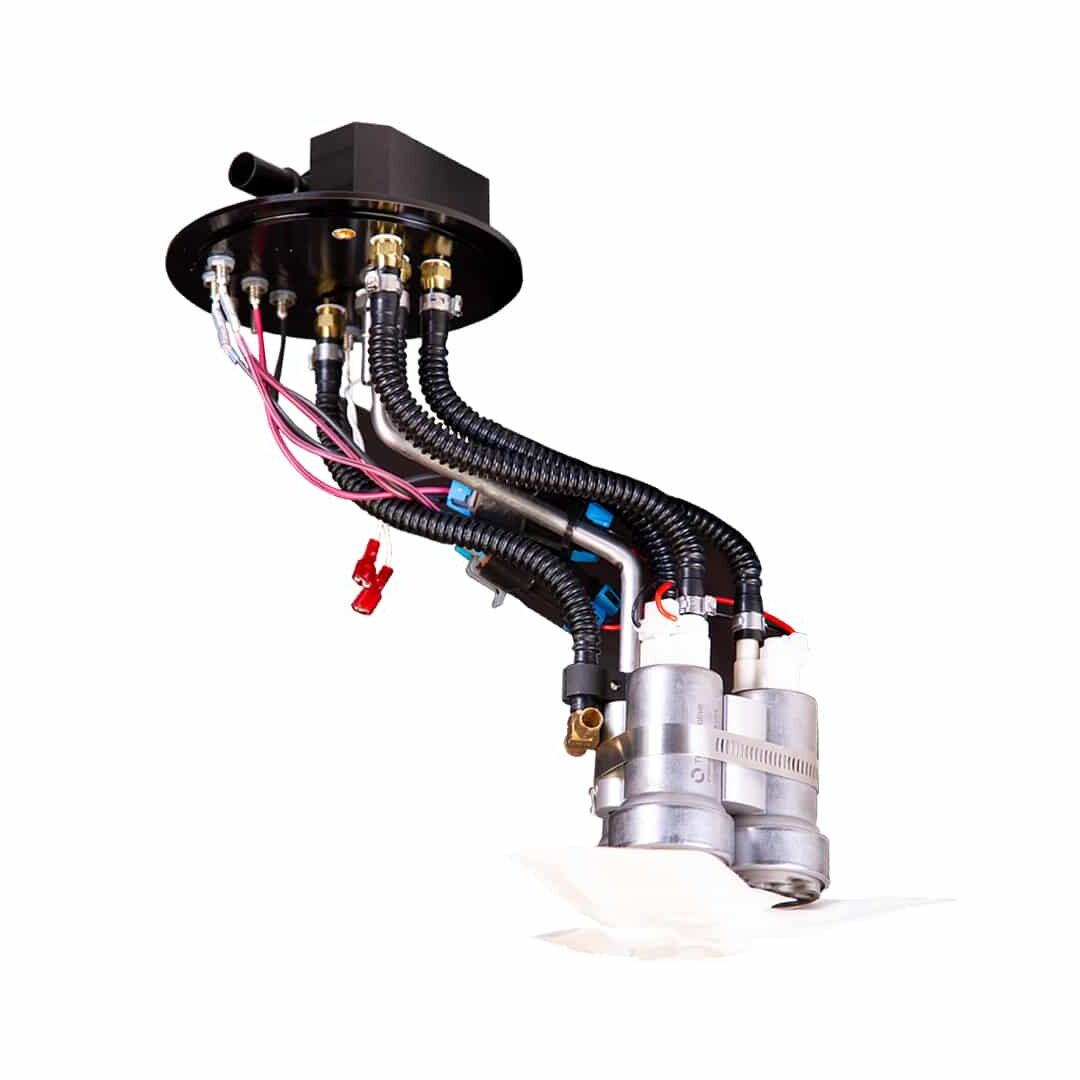

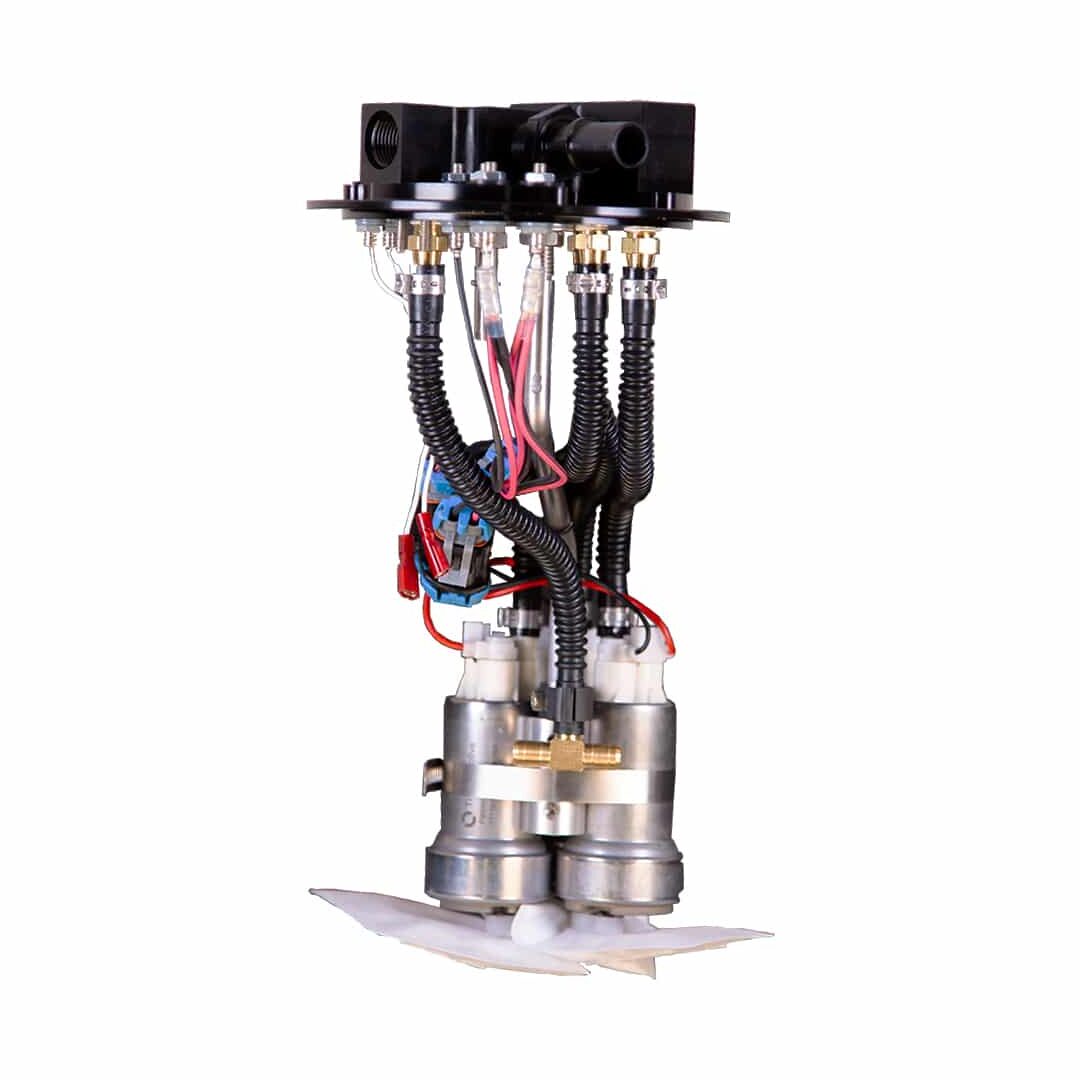

Aeromotive 15-23 Ford F-150 450 Dual Drop-In Phantom System - 18090

2015-2023 F-150  Drop-In Fuel Pump

Direct Drop-In Module – No Drilling Required

• Available in Dual 450LPH (18090) or Triple 450LPH (18091) Configurations

• Depth Adjustable between 23 and 36 Gallon Tanks

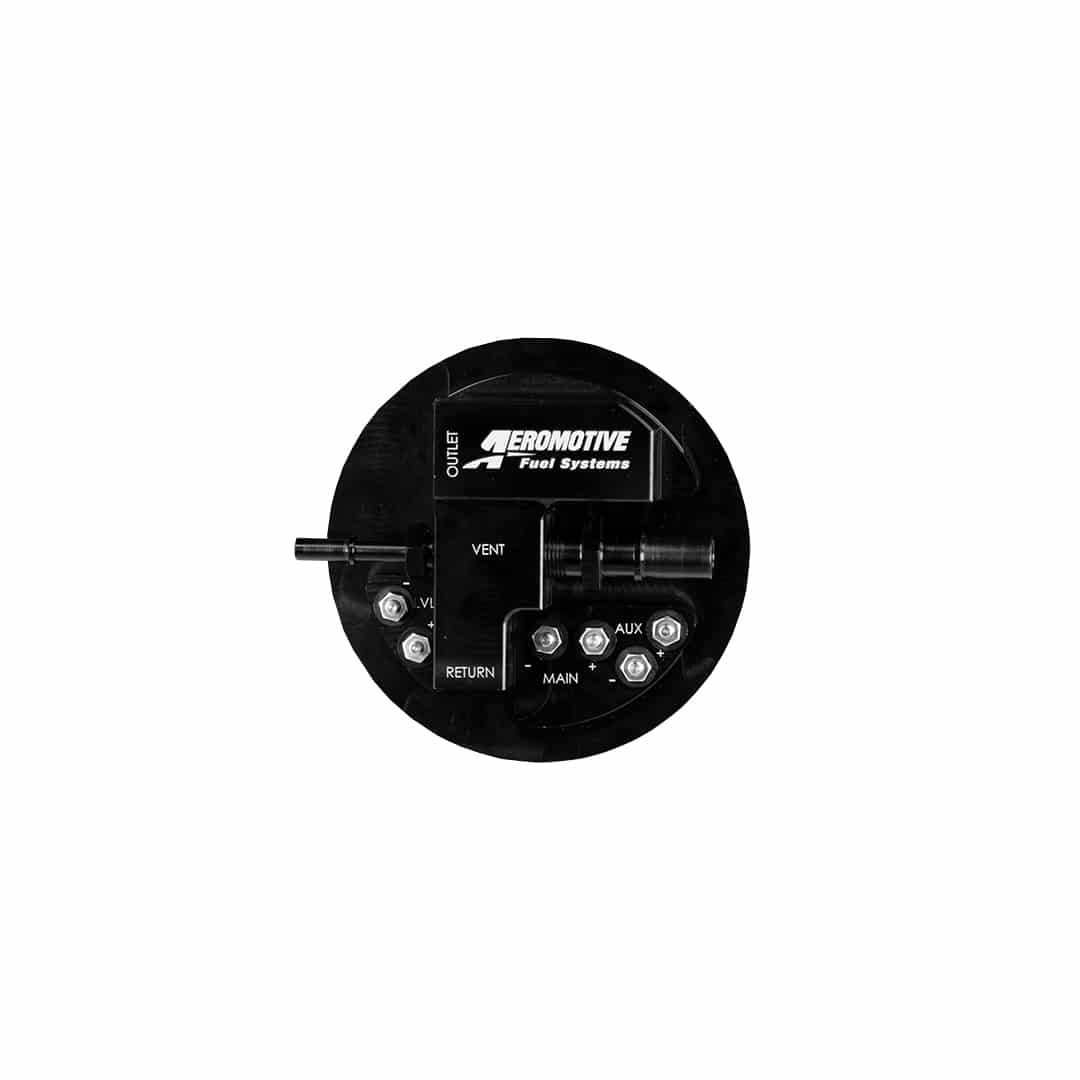

• Single ORB-10 Outlet Port

• Requires the use of a Return Style Regulator (13134 or 13305) and High Flow Filters (12339 or 12341)

• Incorporates OEM Fuel Level Sender, and Vent

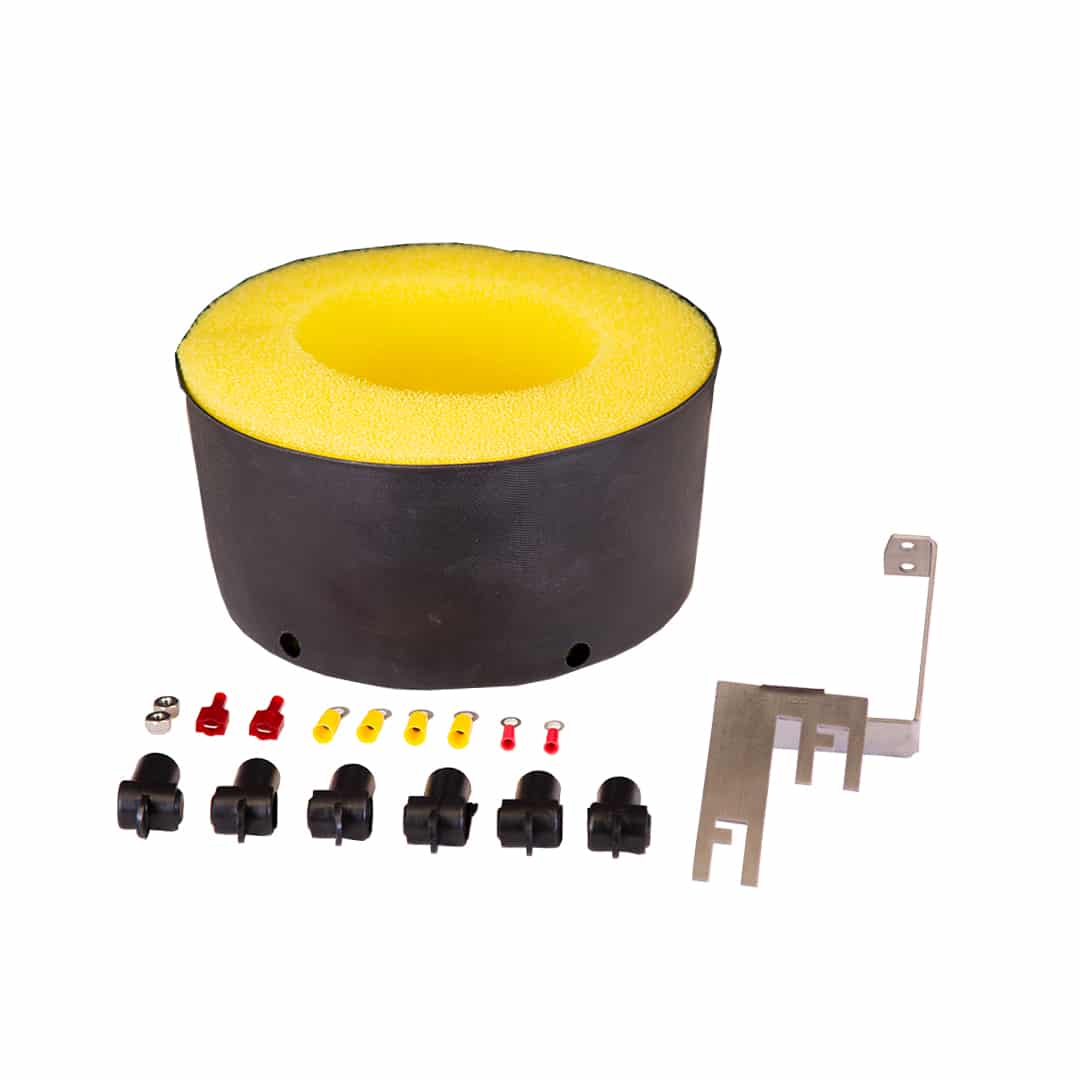

• Utilizes Patented Aeromotive Foam and Bladder Assembly to Control Fuel Slosh

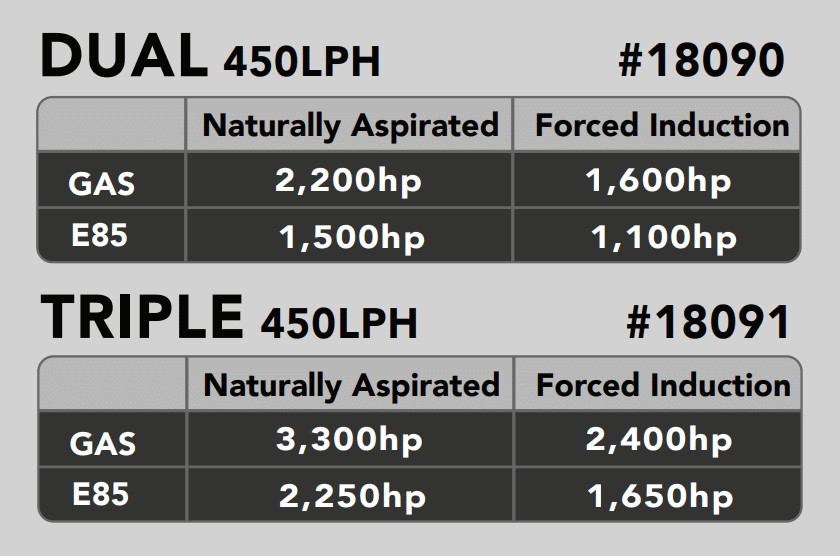

Horsepower Ratings

#18090 - Dual (450+450 LPH)

• Naturally Aspirated
  • Gas up to 2,200 hp
  • E85 up to 1,500 hp


• Forced Induction


  • Gas up to 1,600 hp
  • E85 up to 1,100 hp


#18091 - Triple (450+450+450 LPH)

• Naturally Aspirated
  • Gas up to 3,300 hp
  • E85 up to 2,250 hp


• Forced Induction


  • Gas up to 2,400 hp
  • E85 up to 1,650 hp
