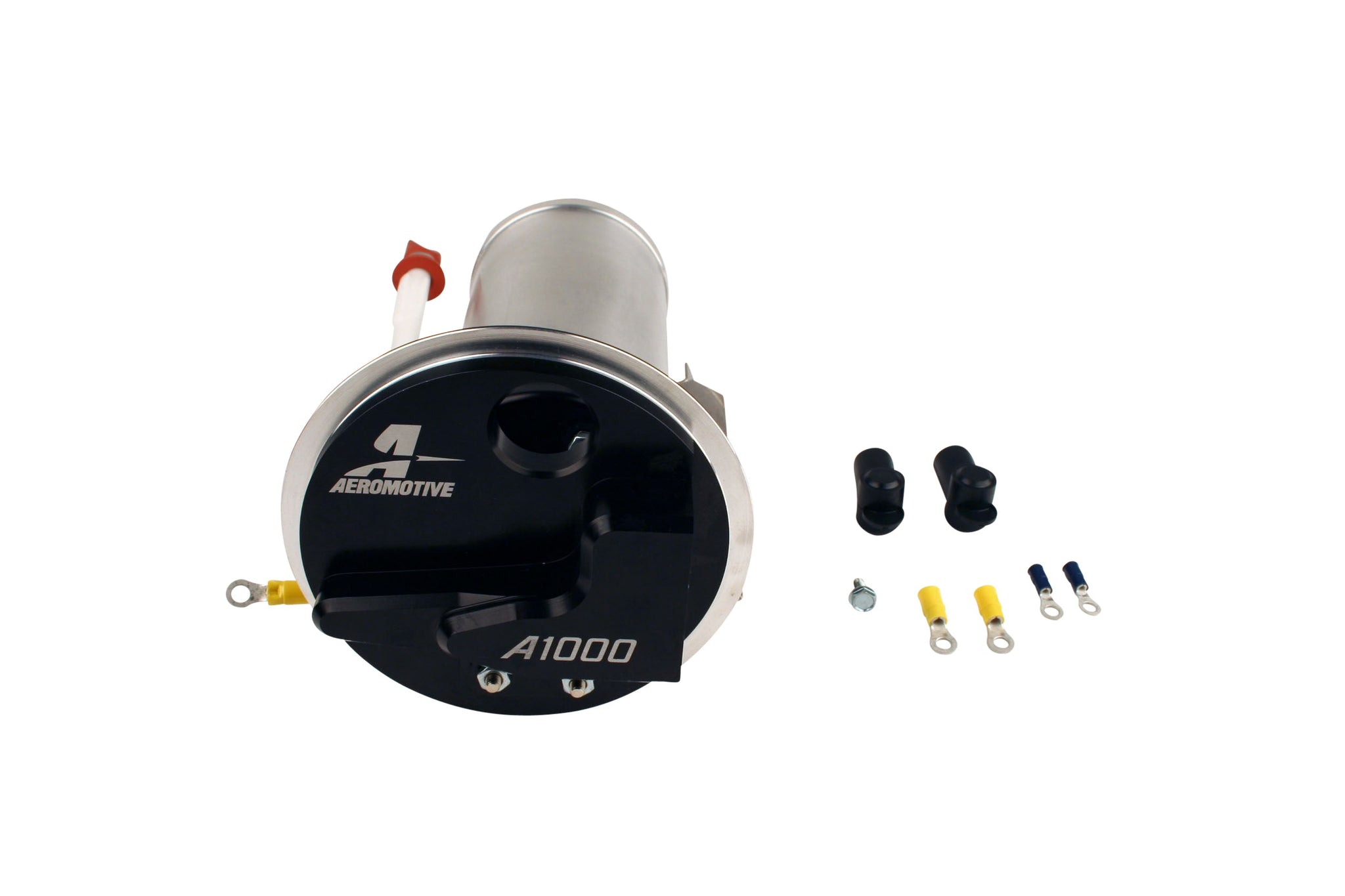

Aeromotive 07-12 Ford Mustang Shelby GT500/S197 - A1000 In-Tank Stealth Fuel System - 18682

Aeromotive’s Stealth Fuel Systems for Mustangs are a truly innovative concept in fueling today’s powerful, complex muscle cars. No need for voltage boosters and expensive twin-pump systems. These Mustang Stealth systems are designed to allow you to utilize your factory fuel tank, but still plumb in a return-style system and support big power. Our single fuel pump drop-in kits use the factory tank, factory fuel level sending unit, and even the o-ring/retainer ring. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

-Features ORB-08 outlet and ORB-08 return ports.
-Incorporates factory jet-siphon system and sending unit.
-Includes an integrated 100-micron stainless-steel pre-pump filter.
-Utilizes the factory tank, o-ring, lock ring and mounting location.
-Requires the use of a bypass-style regulator and return line.
-Billet Speed Pump Controller (#16306) required for EFI street applications.
-This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Naturally Aspirated Fuel Injected:1,300hp
Forced Induction Fuel Injected:1,000hp
Naturally Aspirated Carbureted: 1,500hp
Forced Induction Carbureted: 1,200hp
