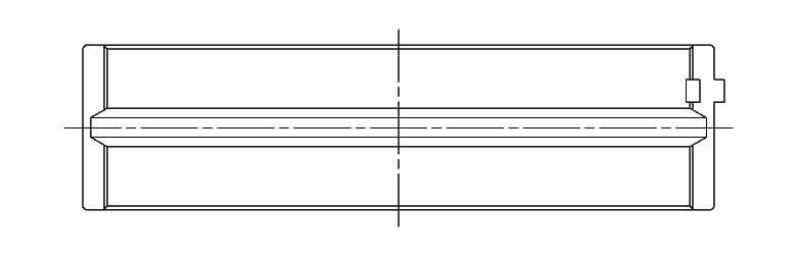

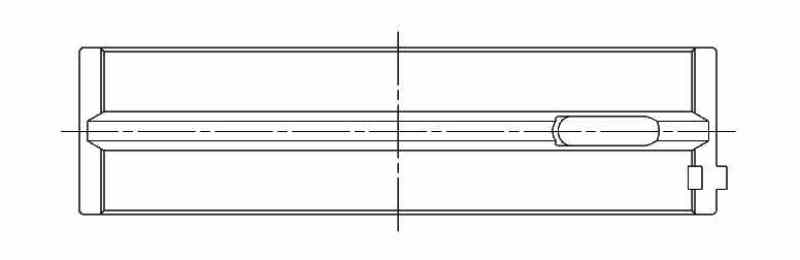

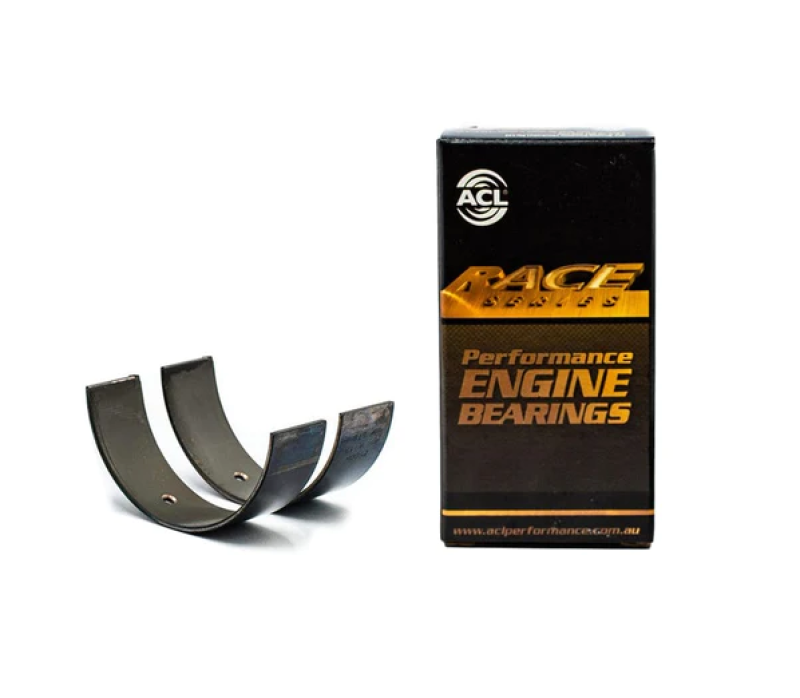

ACL VW VR6 Inline 6 Diesel Standard Size High Performance W/ Extra Oil Clearance Main Bearing Set - 7M5532HX-STD

• Series: ACL Race Series
• Bearing Type: Main bearing
• Shell Halves: Upper & lower
• Bearing Material Code: F780
• Sizes Offered: STD
• Housing Bore (Tunnel) Diameter: 65–65.01 mm (2.5591–2.5594 in)
• Journal Diameter: 59.958–59.978 mm (2.3605–2.3613 in)
• Maximum Wall Thickness at Crown: 2.488 mm (0.098 in)
• Bearing Width (max): 17 mm (0.669 in)

Engine Applications

• Audi BDB 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
• Audi BHE 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
• Audi BHK 3597cc V6 DOHC 4v (bore 89 mm, stroke 96.4 mm)
• Audi BMJ 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
• Audi BPF 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
• Audi BUB 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
• Volkswagen AAA 2792cc V6 DOHC 2v (bore 81 mm, stroke 90.3 mm) — Volkswagen Golf A3 (Mk3)
• Volkswagen ABV 2861cc V6 DOHC 2v (bore 82 mm, stroke 90.3 mm)
• Volkswagen AES 2792cc V6 DOHC 2v (bore 81 mm, stroke 90.3 mm)
• Volkswagen AMV 2792cc V6 DOHC 4v (bore 81 mm, stroke 90.3 mm) — Volkswagen Caravelle T4
• Volkswagen AQP 2792cc V6 DOHC 4v (bore 81 mm, stroke 90.3 mm) — Volkswagen Bora 1J
• Volkswagen AUE 2792cc V6 DOHC 4v (bore 81 mm, stroke 90.3 mm) — Volkswagen Bora 1J
• Volkswagen AXJ 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
• Volkswagen AXZ 3168cc V6 DOHC 4v (bore 89 mm, stroke 90.9 mm) — Volkswagen Passat B6
• Volkswagen AYL 2792cc V6 DOHC 4v (bore 81 mm, stroke 90.3 mm)
• Volkswagen AYT 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
• Volkswagen AZZ 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm) — Volkswagen Touareg 7L
• Volkswagen BAA 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
• Volkswagen BDE 2792cc V6 DOHC 4v (bore 81 mm, stroke 90.3 mm)
• Volkswagen BDL 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
• Volkswagen BFH 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
• Volkswagen BHK 3597cc V6 DOHC 4v (bore 89 mm, stroke 96.4 mm) — Volkswagen Touareg 7L
• Volkswagen BKJ 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm) — Volkswagen Touareg 7L
• Volkswagen BKK 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm) — Volkswagen Transporter T5
• Volkswagen BKL 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
• Volkswagen BLV 3597cc V6 DOHC 4v (bore 89 mm, stroke 96.4 mm)
• Volkswagen BML 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm) — Volkswagen Golf IV
• Volkswagen BMV 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
• Volkswagen BMX 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm) — Volkswagen Touareg 7L
• Volkswagen BRJ 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
• Volkswagen BRK 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
• Volkswagen BUB 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm) — Volkswagen Golf V
• Volkswagen BWS 3597cc V6 DOHC 4v (bore 89 mm, stroke 96.4 mm) — Volkswagen Passat B6, Volkswagen Passat B7
• Volkswagen CBRA 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
• Volkswagen CFLA 3189cc V6 DOHC 4v (bore 84 mm, stroke 95.9 mm)
