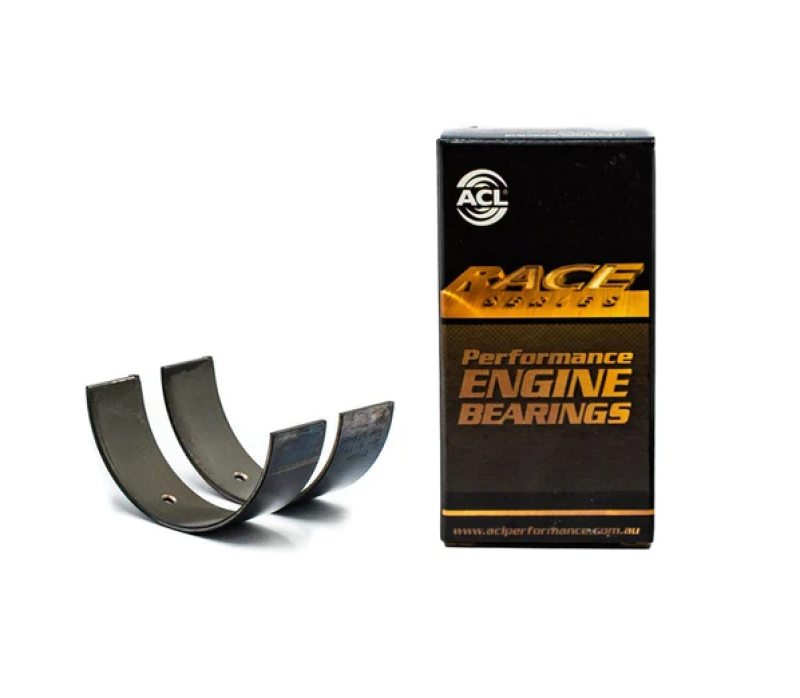

ACL VW/AUDI 4cyl 5cyl 1780-1983cc 1983-on Engine Connecting Rod Bearing Set - 1B1606H-STD

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: STD, .025, .25, .50
• Housing Bore (Tunnel) Diameter: 50.6–50.619 mm (1.9921–1.9929 in)
• Journal Diameter: 47.758–47.778 mm (1.8802–1.881 in)
• Vertical Oil Clearance: 0.012–0.067 mm (0.0005–0.0026 in)
• Maximum Wall Thickness at Crown: 1.405 mm (0.0553 in)
• Bearing Width (max): 19 mm (0.748 in)

Engine Applications

• Audi 1B 2226cc Inline5 SOHC 2v Turbo (bore 81 mm, stroke 86.4 mm)
• Audi 2B 2226cc Inline5 SOHC 2v Turbo (bore 81 mm, stroke 86.4 mm)
• Audi 3D 2370cc Inline5 SOHC 2v Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi 7A 2309cc Inline5 DOHC 4v (bore 82.5 mm, stroke 86.4 mm)
• Audi AAR 2309cc Inline5 SOHC 2v (bore 82.5 mm, stroke 86.4 mm)
• Audi AAS 2370cc Inline5 SOHC 2v Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi CN 1986cc Inline5 SOHC 2v Diesel (bore 76.5 mm, stroke 86.4 mm)
• Audi DE 1986cc Inline5 SOHC 2v Turbo Diesel (bore 76.5 mm, stroke 86.4 mm)
• Audi GV 2144cc Inline5 SOHC 2v Turbo (bore 79.5 mm, stroke 86.4 mm)
• Audi HP 1994cc Inline5 SOHC 2v (bore 81 mm, stroke 77.4 mm)
• Audi HX 2226cc Inline5 SOHC 2v (bore 81 mm, stroke 86.4 mm) — Audi 100 C3
• Audi HY 2226cc Inline5 SOHC 2v (bore 81 mm, stroke 86.4 mm)
• Audi JS 1994cc Inline5 SOHC 2v (bore 81 mm, stroke 77.4 mm)
• Audi JT 2226cc Inline5 SOHC 2v (bore 81 mm, stroke 86.4 mm)
• Audi JY 2144cc Inline5 SOHC 2v Turbo (bore 79.5 mm, stroke 86.4 mm)
• Audi KE 2144cc Inline5 SOHC 2v (bore 79.5 mm, stroke 86.4 mm)
• Audi KF 2144cc Inline5 SOHC 2v (bore 79.5 mm, stroke 86.4 mm) — Audi 100 C3
• Audi KG 2144cc Inline5 SOHC 2v Turbo (bore 79.5 mm, stroke 86.4 mm) — Audi 200T
• Audi KH 2144cc Inline5 SOHC 2v (bore 79.5 mm, stroke 86.4 mm)
• Audi KK 2144cc Inline5 SOHC 2v (bore 79.5 mm, stroke 86.4 mm)
• Audi KL 2144cc Inline5 SOHC 2v (bore 79.5 mm, stroke 86.4 mm)
• Audi KP 1994cc Inline5 SOHC 2v (bore 81 mm, stroke 77.4 mm)
• Audi KU 2226cc Inline5 SOHC 2v (bore 81 mm, stroke 86.4 mm) — Audi 100 C3
• Audi KV 2226cc Inline5 SOHC 2v (bore 81 mm, stroke 86.4 mm)
• Audi KW 2144cc Inline5 DOHC 4v Turbo (bore 79.3 mm, stroke 86.4 mm)
• Audi KX 2226cc Inline5 SOHC 2v (bore 81 mm, stroke 86.4 mm)
• Audi KZ 2226cc Inline5 SOHC 2v (bore 81 mm, stroke 86.4 mm)
• Audi NC 1986cc Inline5 SOHC 2v Turbo Diesel (bore 76.5 mm, stroke 86.4 mm)
• Audi NF 2309cc Inline5 SOHC 2v (bore 82.5 mm, stroke 86.4 mm) — Audi 100 C3
• Audi NG 2309cc Inline5 SOHC 2v (bore 82.5 mm, stroke 86.4 mm) — Audi 80 B4, Audi 90
• Audi NM 1994cc Inline5 DOHC 4v (bore 81 mm, stroke 77.4 mm)
• Audi PR 2309cc Inline5 SOHC 2v (bore 82.5 mm, stroke 86.4 mm)
• Audi PS 1994cc Inline5 SOHC 2v (bore 81 mm, stroke 77.4 mm)
• Audi PX 2226cc Inline5 SOHC 2v (bore 81 mm, stroke 86.4 mm)
• Audi RT 1994cc Inline5 SOHC 2v (bore 81 mm, stroke 77.4 mm)
• Audi SK 1994cc Inline5 SOHC 2v (bore 81 mm, stroke 77.4 mm)
• Audi SL 1994cc Inline5 SOHC 2v (bore 81 mm, stroke 77.4 mm)
• Audi WC 2144cc Inline5 SOHC 2v (bore 79.5 mm, stroke 86.4 mm) — Audi 100 5E C2
• Audi WH 1921cc Inline5 SOHC 2v (bore 79.5 mm, stroke 77.4 mm)
• Audi WR 2144cc Inline5 SOHC 2v Turbo (bore 79.5 mm, stroke 86.4 mm)
