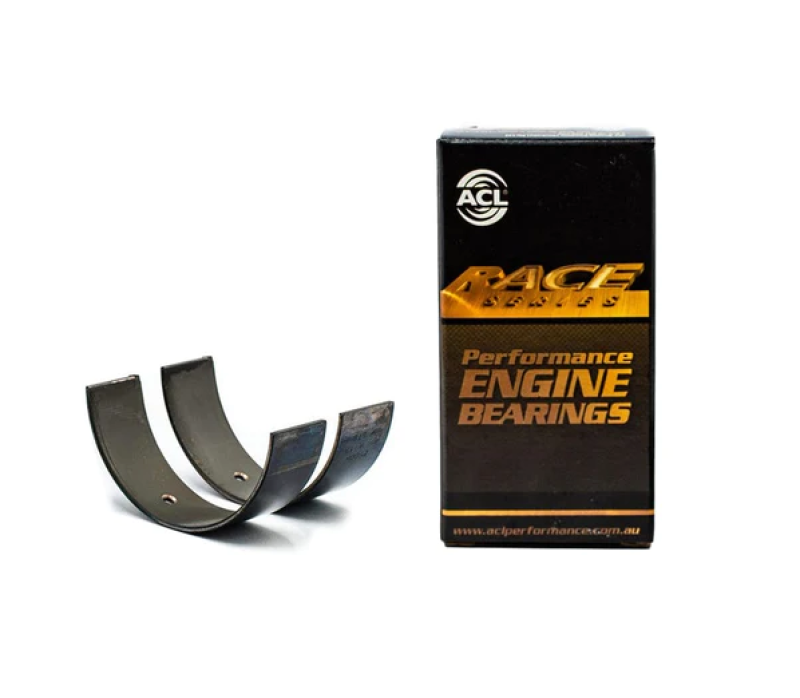

ACL Volvo B5234B5244B5254 5 Cyl. Race Series Engine Connecting Rod Bearing Set - 5B7880H-.25

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: STD, .025, .25
• Housing Bore (Tunnel) Diameter: 53–53.013 mm (2.0866–2.0871 in)
• Journal Diameter (STD size): 49.984–50 mm (1.9679–1.9685 in)
• Maximum Wall Thickness at Crown (STD size): 1.496 mm (0.0589 in)
• Bearing Width (max): 19.5 mm (0.768 in)

Engine Applications

• Ford HUBA 2521cc Inline5 DOHC 4v Turbo (bore 83 mm, stroke 93.2 mm)
• Ford HUWA 2521cc Inline5 DOHC 4v Turbo (bore 83 mm, stroke 93.2 mm)
• Ford HYDA 2521cc Inline5 DOHC 4v Turbo (bore 83 mm, stroke 93.2 mm)
• Ford HYDB 2521cc Inline5 DOHC 4v Turbo (bore 83 mm, stroke 93.2 mm)
• Ford HYDC 2521cc Inline5 DOHC 4v Turbo (bore 83 mm, stroke 93.2 mm)
• Ford JZDA 2521cc Inline5 DOHC 4v Turbo (bore 83 mm, stroke 93.2 mm)
• Renault N7U Series 2435cc Inline5 DOHC 4v (bore 83 mm, stroke 90 mm)
• Volvo B5202F/S 1984cc Inline5 SOHC 2v (bore 81 mm, stroke 77 mm)
• Volvo B5204F/S 1984cc Inline5 DOHC 4v (bore 81 mm, stroke 77 mm)
• Volvo B5204T 1984cc Inline5 DOHC 4v Turbo (bore 81 mm, stroke 77 mm)
• Volvo B5234S 2319cc Inline5 DOHC 4v (bore 81 mm, stroke 90 mm)
• Volvo B5234T 2319cc Inline5 DOHC 4v Turbo (bore 81 mm, stroke 90 mm) — Volvo 850
• Volvo B5244 Series 2435cc Inline5 DOHC 4v (bore 83 mm, stroke 90 mm)
• Volvo B5244T 2435cc Inline5 DOHC 4v Turbo (bore 83 mm, stroke 90 mm) — Volvo C70
• Volvo B5252 Series 2435cc Inline5 DOHC 2v (bore 83 mm, stroke 90 mm)
• Volvo B5254 Series 2435cc Inline5 DOHC 2v (bore 83 mm, stroke 90 mm) — Volvo V70
• Volvo B5254T 2435cc Inline5 DOHC 4v Turbo (bore 83 mm, stroke 90 mm) — Volvo C30
• Volvo B5254T 2521cc Inline5 DOHC 4v Turbo (bore 83 mm, stroke 93.2 mm)
