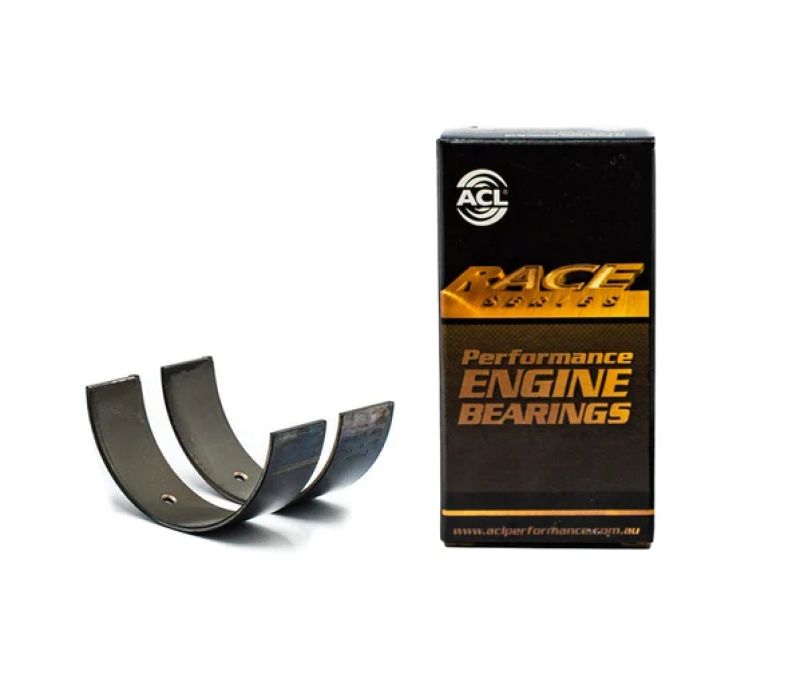

ACL Toyota 4AGE/4AGZE (1.6L) 0.50mm Oversized High Performance Rod Bearing Set - 4B1780H-.50

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: STD, .025, .25, .50
• Housing Bore (Tunnel) Diameter: 45–45.024 mm (1.7717–1.7726 in)
• Journal Diameter (STD size): 41.985–42 mm (1.6529–1.6535 in)
• Vertical Oil Clearance (STD size): 0.026–0.081 mm (0.001–0.0032 in)
• Maximum Wall Thickness at Crown (STD size): 1.487 mm (0.0585 in)
• Bearing Width (max): 17.1 mm (0.673 in)

Engine Applications

• Toyota 4A-GE (20v) 1587cc Inline4 DOHC 5v (bore 81 mm, stroke 77 mm) — Toyota Corolla AE92
• Toyota 4A-GE 1587cc Inline4 DOHC 4v (bore 81 mm, stroke 77 mm) — Toyota Corolla AE92
• Toyota 4A-GEC 1587cc Inline4 DOHC 4v (bore 81 mm, stroke 77 mm)
• Toyota 4A-GELC 1587cc Inline4 DOHC 4v (bore 81 mm, stroke 87 mm)
• Toyota 4A-GZE 1587cc Inline4 DOHC 4v Supercharged (bore 81 mm, stroke 77 mm)
