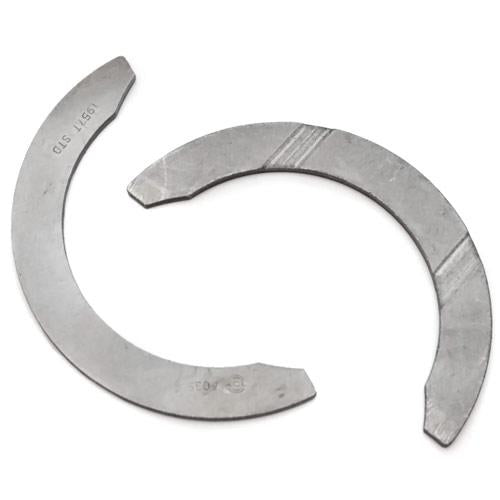

ACL Toyota 4 2438-2694cc 2TZFE 2R Thrust Washer - 2T8377-STD

• Series: ACL
• Bearing Type: Thrust washer
• Shell Halves: Upper & lower
• Bearing Material Code: F817
• Sizes Offered: STD
• Housing Bore (Tunnel) Diameter: 89.75–90 mm (3.5335–3.5433 in)
• Journal Diameter: 65.25–65.5 mm (2.5689–2.5787 in)
• Bearing Width (max): 2.49 mm (0.098 in)

Engine Applications

• Toyota 1RZ 1998cc Inline4 SOHC 2v (bore 86 mm, stroke 86 mm)
• Toyota 1RZ-E 1998cc Inline4 SOHC 2v (bore 86 mm, stroke 86 mm) — Toyota Hilux RZN147
• Toyota 2RZ 2438cc Inline4 SOHC 2v (bore 95 mm, stroke 86 mm) — Toyota Hiace H100
• Toyota 2RZ-E 2438cc Inline4 SOHC 2v (bore 95 mm, stroke 86 mm) — Toyota Hiace H100
• Toyota 2RZ-FE 2438cc Inline4 DOHC 4v (bore 95 mm, stroke 86 mm)
• Toyota 2TZ-FE 2438cc Inline4 DOHC 4v (bore 95 mm, stroke 86 mm) — Toyota Tarago TCR10/11, Toyota Tarago TCR20/21
• Toyota 2TZ-FZE 2438cc Inline4 DOHC 4v S/charged (bore 95 mm, stroke 86 mm)
• Toyota 3RZ-FE 2693cc Inline4 DOHC 4v (bore 95 mm, stroke 95 mm) — Toyota Hilux RZN147, Toyota Hilux RZN149, Toyota Hilux RZN154, Toyota Hilux RZN174, Toyota Hilux RZN169
