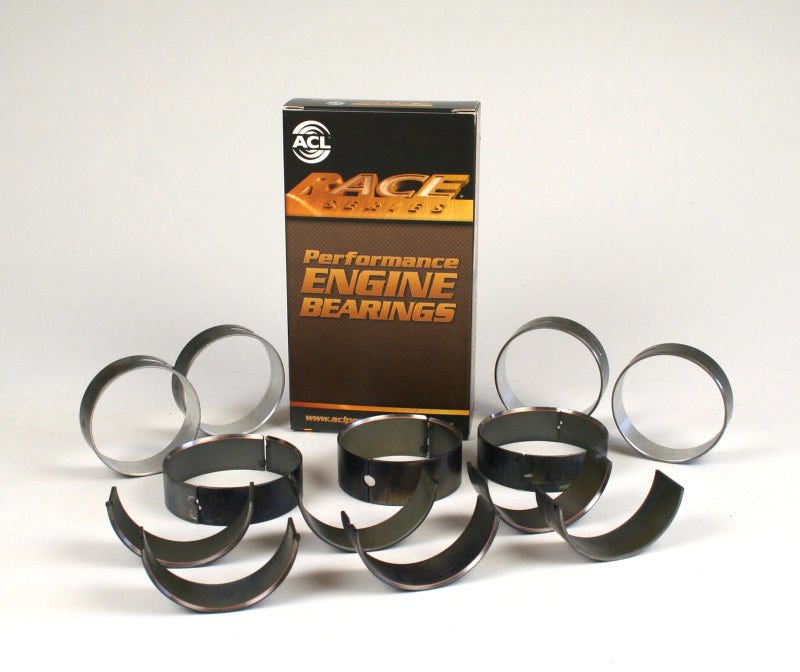

ACL Suzuki GSX R1000 Inline 4 .025mm Oversized High Performance Rod Bearing Set - 4B8430H-.025

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: Std, .025, .25
• Housing Bore (Tunnel) Diameter: 38–38.016 mm (1.4961–1.4967 in)
• Journal Diameter (STD size): 34.976–35 mm (1.377–1.378 in)
• Vertical Oil Clearance (STD size): 0.024–0.08 mm (0.0009–0.0031 in)
• Maximum Wall Thickness at Crown (STD size): 1.488 mm (0.0586 in)
• Bearing Width (max): 15 mm (0.591 in)

Engine Applications

• Suzuki 988cc (GSX-R1000) Inline4 DOHC 4 Stroke 4v (bore 73 mm, stroke 59 mm) — Suzuki GSX-R1000
• Suzuki 998.6cc (GSX-R1000) Inline4 DOHC 4 Stroke 4v (bore 73.4 mm, stroke 59 mm) — Suzuki GSX-R1000
• Suzuki 999cc (GSX-R1000) Inline4 DOHC 4 Stroke 4v (bore 74.5 mm, stroke 57.3 mm) — Suzuki GSX-R1000
