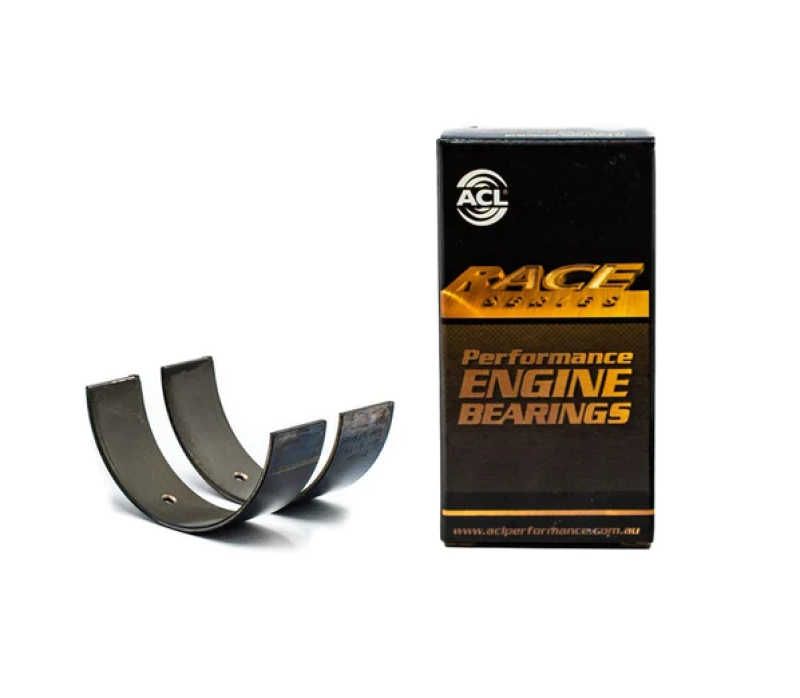

ACL Suzuki 4 - 1324cc G13A/BA Standard Size High Performance Connecting Rod Bearing Set - 4B8336H-STD

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: STD, .25, .50
• Housing Bore (Tunnel) Diameter: 44.998–45.018 mm (1.7716–1.7724 in)
• Journal Diameter: 41.982–42 mm (1.6528–1.6535 in)
• Vertical Oil Clearance: 0.018–0.072 mm (0.0007–0.0028 in)
• Maximum Wall Thickness at Crown: 1.49 mm (0.0587 in)
• Bearing Width (max): 18.13 mm (0.714 in)

Engine Applications

• Suzuki G13A 1324cc Inline4 SOHC 2v (bore 74 mm, stroke 77 mm) — Suzuki Swift SF
• Suzuki G13BA 1298cc Inline4 SOHC 2v (bore 74 mm, stroke 75.5 mm) — Suzuki Swift SF Series II
• Suzuki G13BB 1298cc Inline4 SOHC 4v (bore 74 mm, stroke 75.5 mm) — Suzuki Carry FD
