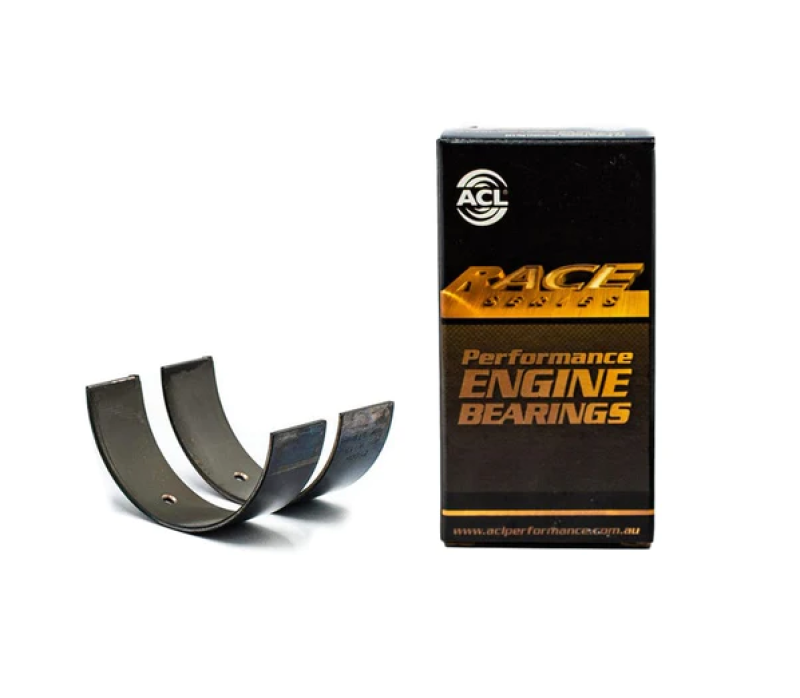

ACL Nissan ZD30, QD32, Inline 4 Diesel Standard Size High Performance Main Bearing Set - 5M2965H-STD

• Series: ACL Race Series
• Bearing Type: Main bearing
• Shell Halves: Upper & lower
• Bearing Material Code: F780
• Sizes Offered: STD, .025, .25
• Housing Bore (Tunnel) Diameter: 74.981–75 mm (2.952–2.9528 in)
• Journal Diameter: 70.907–70.92 mm (2.7916–2.7921 in)
• Maximum Wall Thickness at Crown: 2.01 mm (0.0791 in)
• Bearing Width (max): 26 mm (1.024 in)

Engine Applications

• Nissan QD32 3153cc Inline4 OHV 2v Diesel (bore 99.2 mm, stroke 102 mm) — Nissan Navara D22
• Nissan QD32-T 3153cc Inline4 OHV 2v Turbo Diesel (bore 99.2 mm, stroke 102 mm)
• Nissan TD23 2289cc Inline4 OHV 2v Diesel (bore 89 mm, stroke 92 mm)
• Nissan TD25 2494cc Inline4 OHV 2v Diesel (bore 89 mm, stroke 100 mm) — Nissan Urvan E24
• Nissan TD27 2663cc Inline4 OHV 2v Diesel (bore 96 mm, stroke 92 mm) — Nissan Navara D21
• Nissan TD27T 2663cc Inline4 SOHC 2v Turbo Diesel (bore 96 mm, stroke 92 mm) — Nissan Terrano II
• Nissan ZD30DD 2953cc Inline4 4v Diesel (bore 96 mm, stroke 102 mm)
• Nissan ZD30DDT 2953cc Inline4 DOHC 4v Turbo Diesel (bore 96 mm, stroke 102 mm) — Nissan Navara D22
• Nissan ZD30DDTi 2953cc Inline4 DOHC 4v Turbo Diesel (bore 96 mm, stroke 102 mm) — Nissan Patrol GU III
