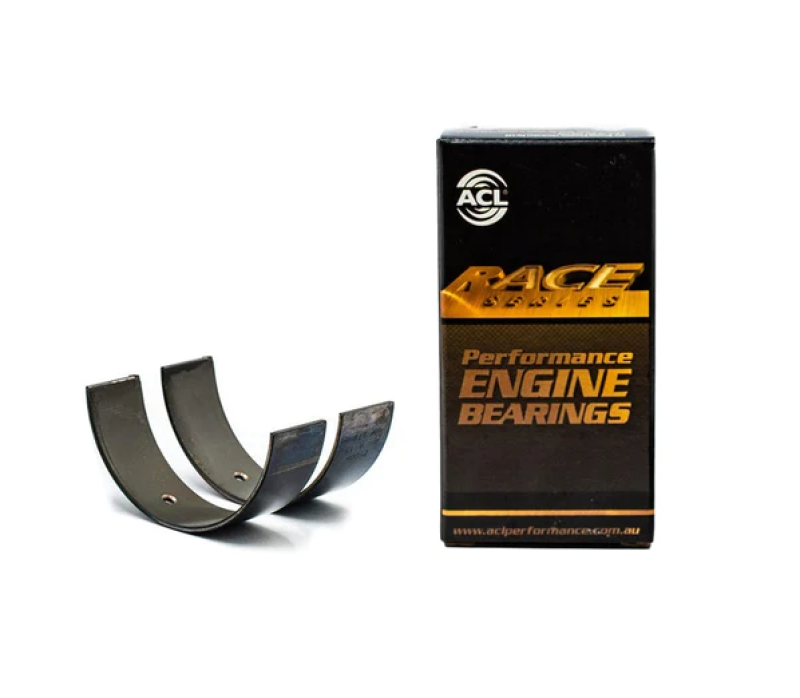

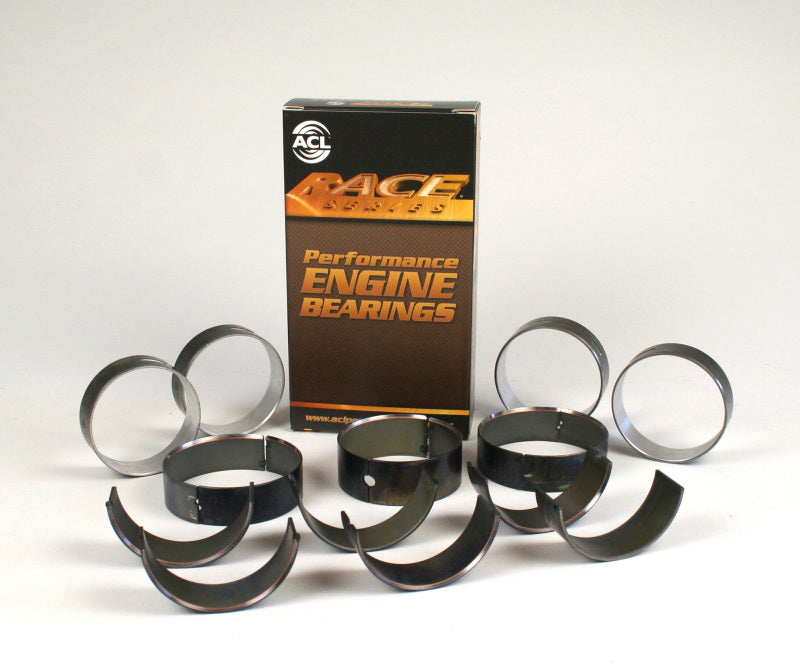

ACL Mitsubishi 4G93 1834CC +.25 Oversized High Performance Main Bearing Set - 5M8037H-.25

• Series: ACL Race Series
• Bearing Type: Main bearing
• Shell Halves: Upper & lower
• Bearing Material Code: F780
• Sizes Offered: STD, .25
• Housing Bore (Tunnel) Diameter: 54–54.018 mm (2.126–2.1267 in)
• Journal Diameter (STD size): 49.982–50 mm (1.9678–1.9685 in)
• Vertical Oil Clearance (STD size): 0.018–0.07 mm (0.0007–0.0028 in)
• Maximum Wall Thickness at Crown (STD size): 1.991 mm (0.0784 in)
• Bearing Width (max): 19.13 mm (0.753 in)

Engine Applications

• Mitsubishi 4G91 1496cc Inline4 DOHC 4v (bore 81 mm, stroke 77.5 mm)
• Mitsubishi 4G92 1597cc Inline4 SOHC/DOHC 4v (bore 81 mm, stroke 77.5 mm) — Mitsubishi Lancer CC
• Mitsubishi 4G93 1834cc Inline4 DOHC 4v (bore 81 mm, stroke 89 mm) — Proton Satria
• Mitsubishi 4G93 1834cc Inline4 SOHC 4v (bore 81 mm, stroke 89 mm) — Mitsubishi Lancer CC
• Mitsubishi 4G93P 1834cc Inline4 SOHC 4v (bore 81 mm, stroke 89 mm) — Proton M21
• Mitsubishi 4G93T 1834cc Inline4 DOHC 4v Turbo (bore 81 mm, stroke 89 mm) — Mitsubishi Lancer CC
• Mitsubishi 4G94 1999cc Inline4 SOHC 4v (bore 81.5 mm, stroke 95.8 mm) — Mitsubishi Lancer CG, Mitsubishi Lancer CH
