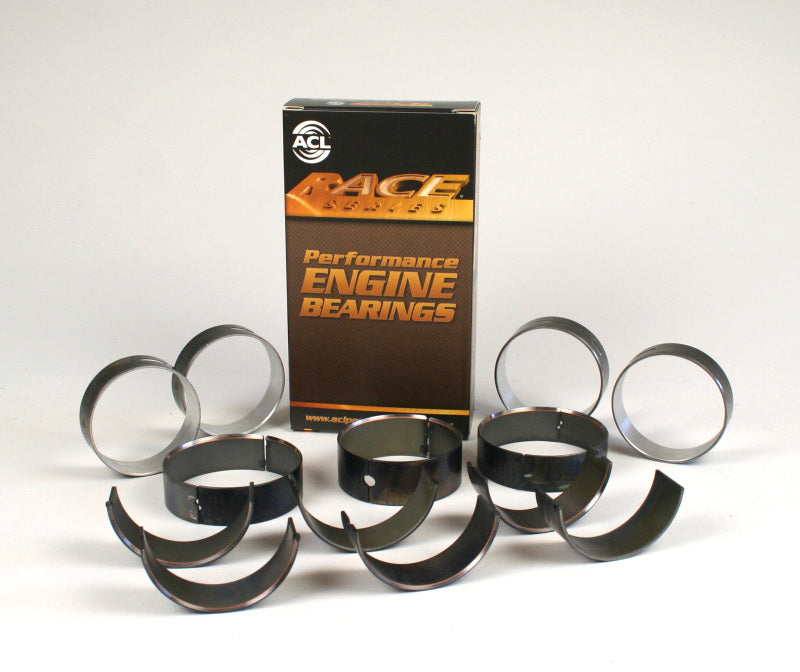

ACL Mitsubishi 4G63/4G64 6 Bolt 1st Gen DSM 0.25mm Oversized High Performance Main Bearing Set - 5M1144H-.25

• Series: ACL Race Series
• Bearing Type: Main bearing
• Shell Halves: Lower
• Bearing Material Code: F780
• Sizes Offered: STD, .025, .25
• Housing Bore (Tunnel) Diameter: 61–61.02 mm (2.4016–2.4024 in)
• Journal Diameter (STD size): 56.98–57 mm (2.2433–2.2441 in)
• Vertical Oil Clearance (STD size): 0.02–0.076 mm (0.0008–0.003 in)
• Maximum Wall Thickness at Crown (STD size): 1.99 mm (0.0783 in)
• Bearing Width (max): 23 mm (0.906 in)

Engine Applications

• Hyundai G4CN 1836cc Inline4 DOHC 4v (bore 81.5 mm, stroke 88 mm) — Hyundai Lantra J1
• Hyundai G4CR 1596cc Inline4 DOHC 4v (bore 82.3 mm, stroke 75 mm)
• Hyundai G4CS 2350cc Inline4 SOHC 2v (bore 86.5 mm, stroke 100 mm) — Hyundai Sonata Y2
• Mitsubishi 4D65 1795cc Inline4 SOHC 2v Diesel (bore 80.6 mm, stroke 88 mm)
• Mitsubishi 4D65-T 1795cc Inline4 SOHC 2v Turbo Diesel (bore 80.6 mm, stroke 88 mm)
• Mitsubishi 4G30 1289cc Inline4 SOHC 2v (bore 73 mm, stroke 77 mm) — Chrysler Galant GA
• Mitsubishi 4G31 1499cc Inline4 SOHC 2v (bore 74.5 mm, stroke 86 mm) — Chrysler Galant GA
• Mitsubishi 4G32 1597cc Inline4 SOHC Belt 2v (bore 77 mm, stroke 86 mm) — Mitsubishi Cordia AA
• Mitsubishi 4G32 1597cc Inline4 SOHC Chain 2v (bore 77 mm, stroke 86 mm) — Chrysler Galant GB, Chrysler Galant GC, Chrysler Galant GD, Chrysler Lancer LB, Chrysler Lancer LC
• Mitsubishi 4G33 1439cc Inline4 SOHC Belt 2v (bore 73 mm, stroke 86 mm) — Mitsubishi Colt RB, Mitsubishi Colt RE
• Mitsubishi 4G33 1439cc Inline4 SOHC Chain 2v (bore 73 mm, stroke 86 mm) — Chrysler Lancer LB, Chrysler Galant GB, Chrysler Lancer LA
• Mitsubishi 4G35 1686cc Inline4 SOHC 2v (bore 79 mm, stroke 86 mm)
• Mitsubishi 4G36 1238cc Inline4 SOHC 2v (bore 73 mm, stroke 74 mm)
• Mitsubishi 4G37 1755cc Inline4 SOHC 2v (bore 80.6 mm, stroke 86 mm) — Mitsubishi Cordia AB
• Mitsubishi 4G61 1596cc Inline4 DOHC 4v (bore 82 mm) — Mitsubishi Lancer CB
• Mitsubishi 4G61T 1597cc Inline4 DOHC 4v Turbo (bore 82.3 mm, stroke 75 mm)
• Mitsubishi 4G62 1795cc Inline4 SOHC 2v (bore 80.6 mm, stroke 88 mm) — Mitsubishi Express L300 SC
• Mitsubishi 4G63 1997cc Inline4 DOHC 4v (bore 85 mm, stroke 88 mm) — Mitsubishi Galant HG
• Mitsubishi 4G63 1997cc Inline4 SOHC 2v (bore 85 mm, stroke 88 mm) — Mitsubishi Express SF, Mitsubishi Express SG
• Mitsubishi 4G63-T 1997cc Inline4 DOHC 4v Turbo (bore 85 mm, stroke 88 mm) — Mitsubishi Lancer Evolution IX, Mitsubishi Lancer Evolution VIII
• Mitsubishi 4G63T 1997cc Inline4 SOHC 2v Turbo (bore 85 mm, stroke 88 mm) — Mitsubishi Starion JA, Mitsubishi Starion JB, Mitsubishi Starion JD
• Mitsubishi 4G64 2351cc Inline4 SOHC 2v (bore 86.5 mm, stroke 100 mm) — Mitsubishi Express SF
• Mitsubishi G31B 1499cc Inline4 SOHC 2v (bore 74.5 mm, stroke 86 mm)
• Mitsubishi G32B 1597cc Inline4 SOHC 2v (bore 77 mm, stroke 86 mm) — Chrysler Lancer LC
• Mitsubishi G33B 1439cc Inline4 SOHC 2v (bore 73 mm, stroke 86 mm)
• Mitsubishi G37B 1755cc Inline4 SOHC 2v (bore 80.6 mm, stroke 86 mm)
• Mitsubishi G62B 1795cc Inline4 SOHC 2v (bore 80.6 mm, stroke 88 mm)
• Mitsubishi G62BT 1795cc Inline4 SOHC 2v Turbo (bore 80.6 mm, stroke 88 mm) — Mitsubishi Cordia AB
• Mitsubishi G63B 1997cc Inline4 SOHC 2v (bore 85 mm, stroke 88 mm)
• Mitsubishi G63B 1997cc Inline4 SOHC 4v (bore 85 mm, stroke 88 mm)
• Mitsubishi G63BT 1997cc Inline4 SOHC 2v Turbo (bore 85 mm, stroke 88 mm)
• Mitsubishi G64B 2351cc Inline4 SOHC 2v (bore 86.5 mm, stroke 100 mm)
