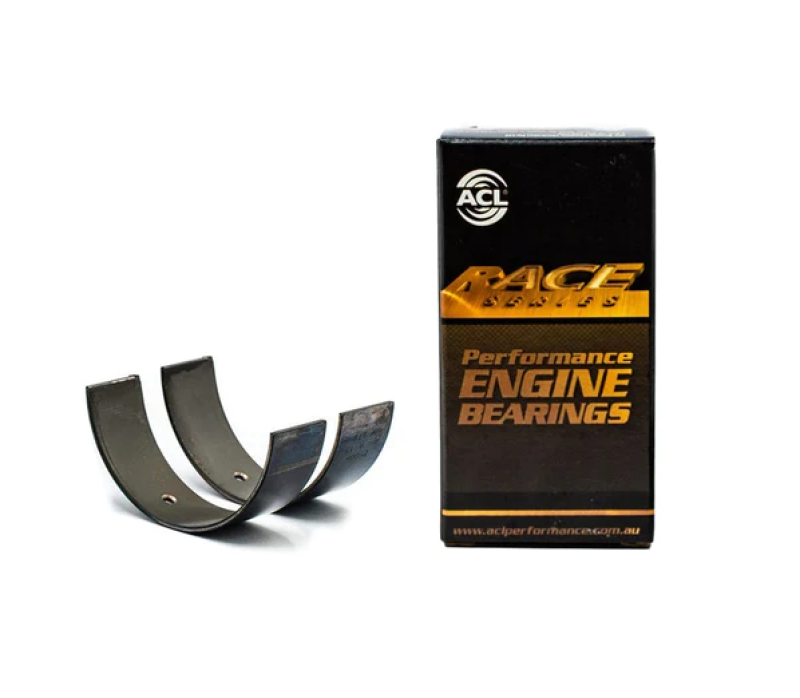

ACL MINI N12/N14/N16/N18 .25mm Oversized Performance Rod Bearing Set - 4B7787H-.25

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: STD, .025, .25
• Housing Bore (Tunnel) Diameter: 47.97–48 mm (1.8886–1.8898 in)
• Journal Diameter (STD size): 44.975–44.991 mm (1.7707–1.7713 in)
• Maximum Wall Thickness at Crown (STD size): 1.498 mm (0.059 in)
• Bearing Width (max): 19.7 mm (0.776 in)

Engine Applications

• BMW N13B16A 1598cc Inline4 DOHC 4v Turbo (bore 77 mm, stroke 85.8 mm)
• Mini N12B16 1598cc Inline4 DOHC 4v (bore 77 mm, stroke 85.8 mm) — Mini Cabrio R57
• Mini N14B16 1598cc Inline4 DOHC 4v Turbo (bore 77 mm, stroke 85.8 mm) — Mini Cabrio R57
• Mini N16B16 1598cc Inline4 DOHC 4v (bore 77 mm, stroke 85.8 mm)
• Mini N18B16 1598cc Inline4 DOHC 4v Turbo (bore 77 mm, stroke 85.8 mm)
• Peugeot EP6 1598cc Inline4 DOHC 4v (bore 77 mm, stroke 85.8 mm)
• Peugeot EP6DT (5FR) 1598cc Inline4 DOHC 4v Turbo (bore 77 mm, stroke 85.8 mm) — Peugeot 207 CC A7
• Peugeot EP6DT (5FT) 1598cc Inline4 DOHC 4v Turbo (bore 77 mm, stroke 85.8 mm)
• Peugeot EP6DT (5FV) 1598cc Inline4 DOHC 4v Turbo (bore 77 mm, stroke 85.8 mm)
• Peugeot EP6DT (5FX) 1598cc Inline4 DOHC 4v Turbo (bore 77 mm, stroke 85.8 mm)
• Peugeot EP6DTS (5FY) 1598cc Inline4 DOHC 4v Turbo (bore 77 mm, stroke 85.8 mm)
