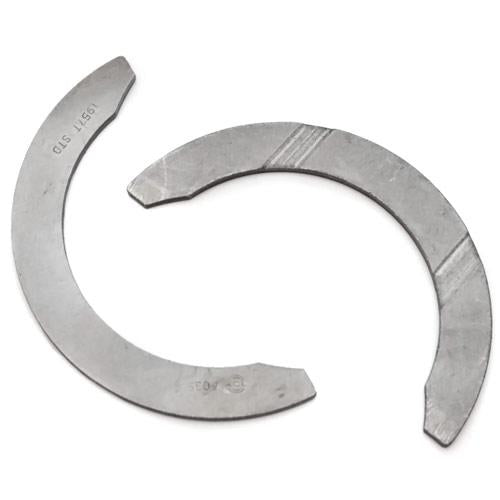

ACL Isuzu 4 1588cc 1990-93 Thrust Washer - 1T1867-STD

• Series: ACL
• Bearing Type: Thrust washer
• Shell Halves: Identical halves
• Bearing Material Code: F817
• Sizes Offered: STD
• Housing Bore (Tunnel) Diameter: 73.6–73.85 mm (2.8976–2.9075 in)
• Journal Diameter: 59–59.25 mm (2.3228–2.3327 in)
• Bearing Width (max): 2.21 mm (0.087 in)

Engine Applications

• Isuzu 4EE1 1686cc Inline4 OHV 2v Diesel (bore 79 mm, stroke 86 mm)
• Isuzu 4EE1-T 1686cc Inline4 OHV 2v Turbo Diesel (bore 79 mm, stroke 86 mm)
• Isuzu 4XCI 1471cc Inline4 SOHC 2v (bore 77 mm, stroke 79 mm) — Holden Gemini RB
• Isuzu 4XCI-T 1471cc Inline4 SOHC 2v Turbo (bore 77 mm, stroke 79 mm)
• Isuzu 4XE1 1588cc Inline4 SOHC 3v (bore 80 mm, stroke 79 mm)
• Isuzu 4XE1-T 1588cc Inline4 DOHC 4v Turbo (bore 80 mm, stroke 79 mm)
• Opel 17D (Isuzu 4EE1) 1686cc Inline4 SOHC 2v (bore 79 mm, stroke 86 mm)
• Opel X17D (Isuzu 4EE1) 1686cc Inline4 SOHC 2v Diesel (bore 79 mm, stroke 86 mm)
• Opel Y17DT 1686cc Inline4 SOHC 2v Turbo Diesel (bore 79 mm, stroke 86 mm)
• Opel Y17DTL 1686cc Inline4 SOHC 2v Turbo Diesel (bore 79 mm, stroke 86 mm)
• Opel Z17DTH 1686cc Inline4 SOHC 2v Turbo Diesel (bore 79 mm, stroke 86 mm)
• Opel Z17DTL 1686cc Inline4 SOHC 2v Turbo Diesel (bore 79 mm, stroke 86 mm)
