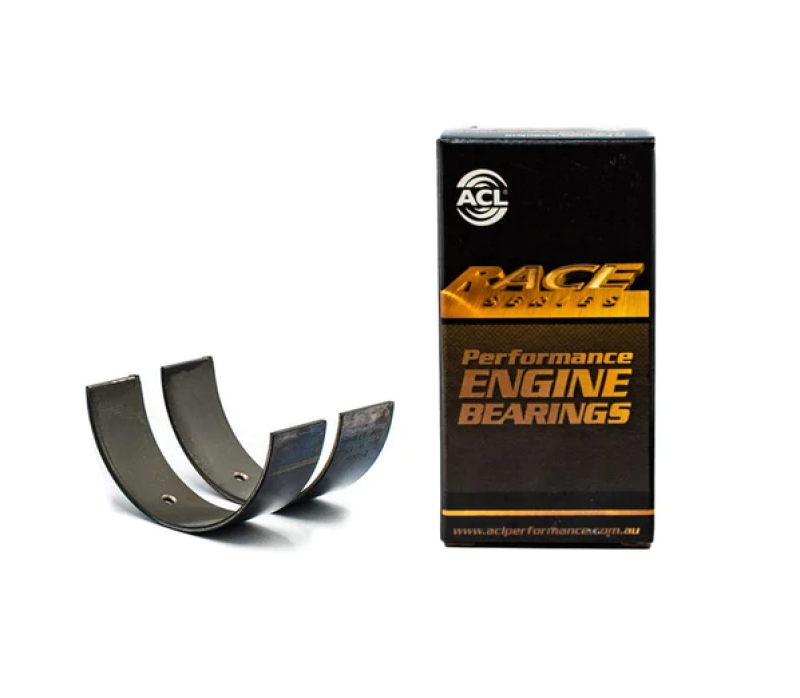

ACL Hyundai G4KF 2.0T 0.25 Oversized High Performance Rod Bearing Set - 4B1293H-.25

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: Std, .025, .25
• Housing Bore (Tunnel) Diameter: 51–51.018 mm (2.0079–2.0086 in)
• Journal Diameter (STD size): 47.954–47.972 mm (1.8879–1.8887 in)
• Vertical Oil Clearance (STD size): 0.01–0.062 mm (0.0004–0.0024 in)
• Maximum Wall Thickness at Crown (STD size): 1.513 mm (0.0596 in)
• Bearing Width (max): 17 mm (0.669 in)

Engine Applications

• Hyundai G4KF (Theta II) 1998cc Inline4 DOHC 4v Turbo (bore 86 mm, stroke 86 mm)
