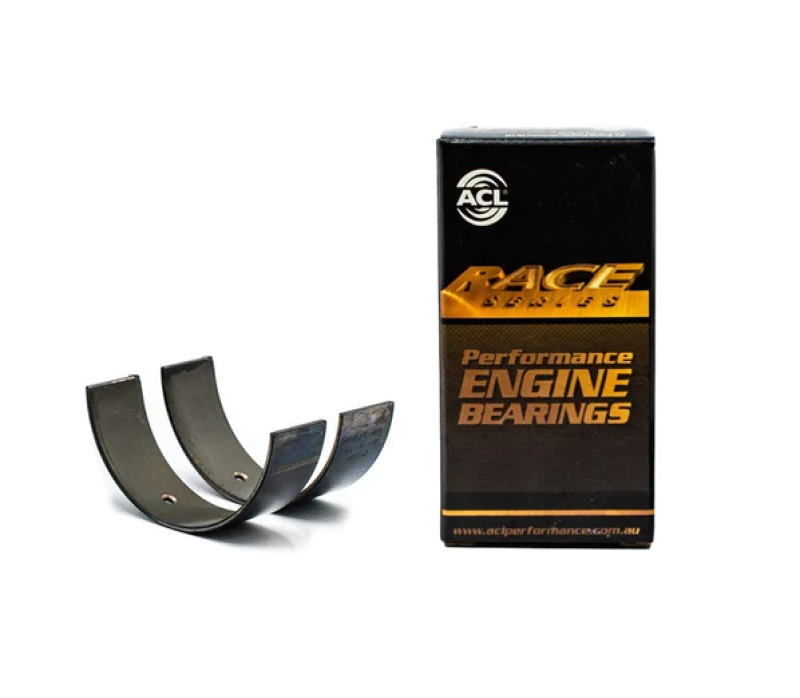

ACL Honda J35 3471cc V6 SOHC 4v Race Series **NEW ITEM 2018** Engine Connecting Rod Bearing Set - 6B1995H-.25

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: STD, .025, .25
• Housing Bore (Tunnel) Diameter: 57.998–58.016 mm (2.2834–2.2841 in)
• Journal Diameter (STD size): 54.976–55.001 mm (2.1644–2.1654 in)
• Maximum Wall Thickness at Crown (STD size): 1.502 mm (0.0591 in)
• Bearing Width (max): 14.5 mm (0.571 in)

Engine Applications

• Honda J32A Series 3210cc V6 SOHC 4v (bore 89 mm, stroke 86 mm)
• Honda J35A Series 3471cc V6 SOHC 4v (bore 89 mm, stroke 93 mm) — Honda MDX
• Honda J35Z Series 3471cc V6 SOHC 4v (bore 89 mm, stroke 93 mm)
